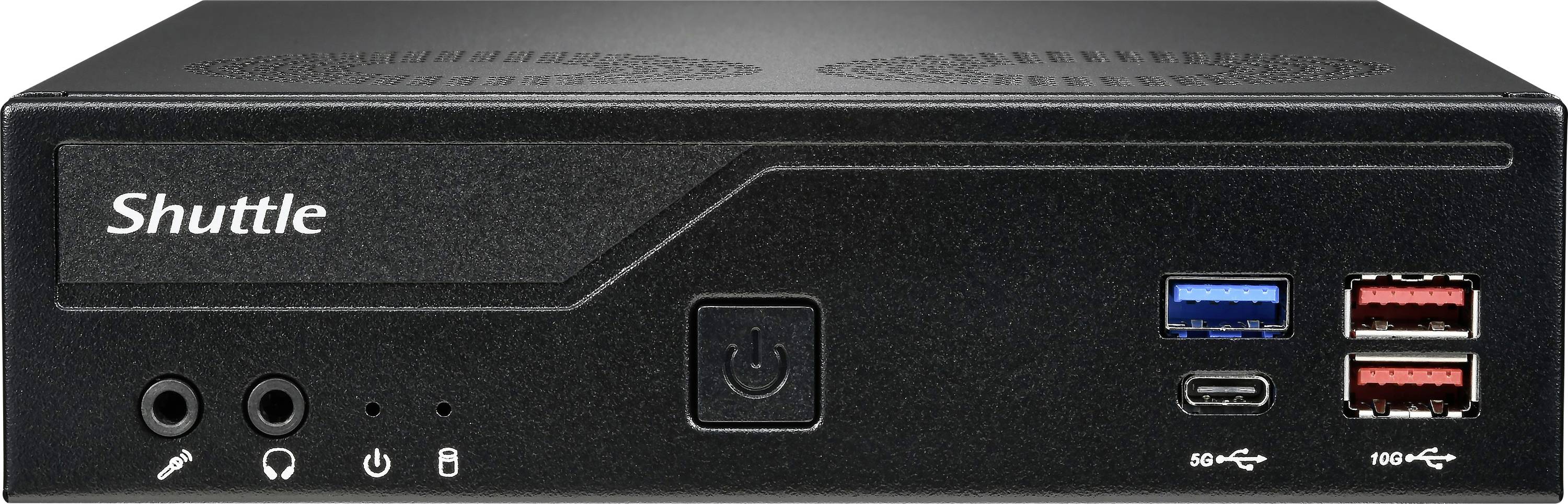

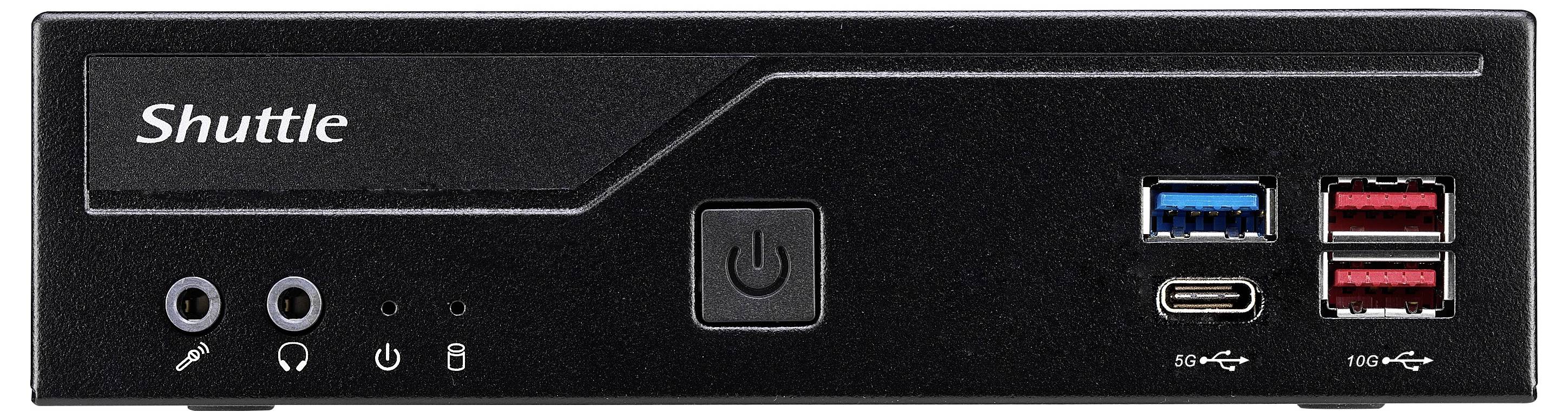

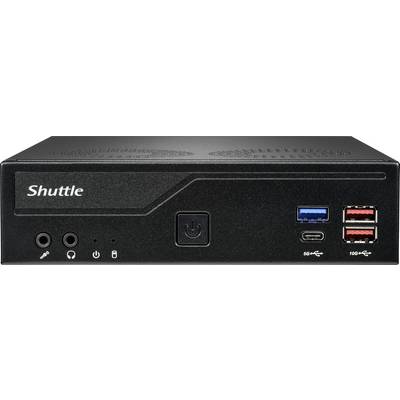

Black shuttle mini PC, front view: Power switch, audio ports, USB ports. Compact design for versatile applications.

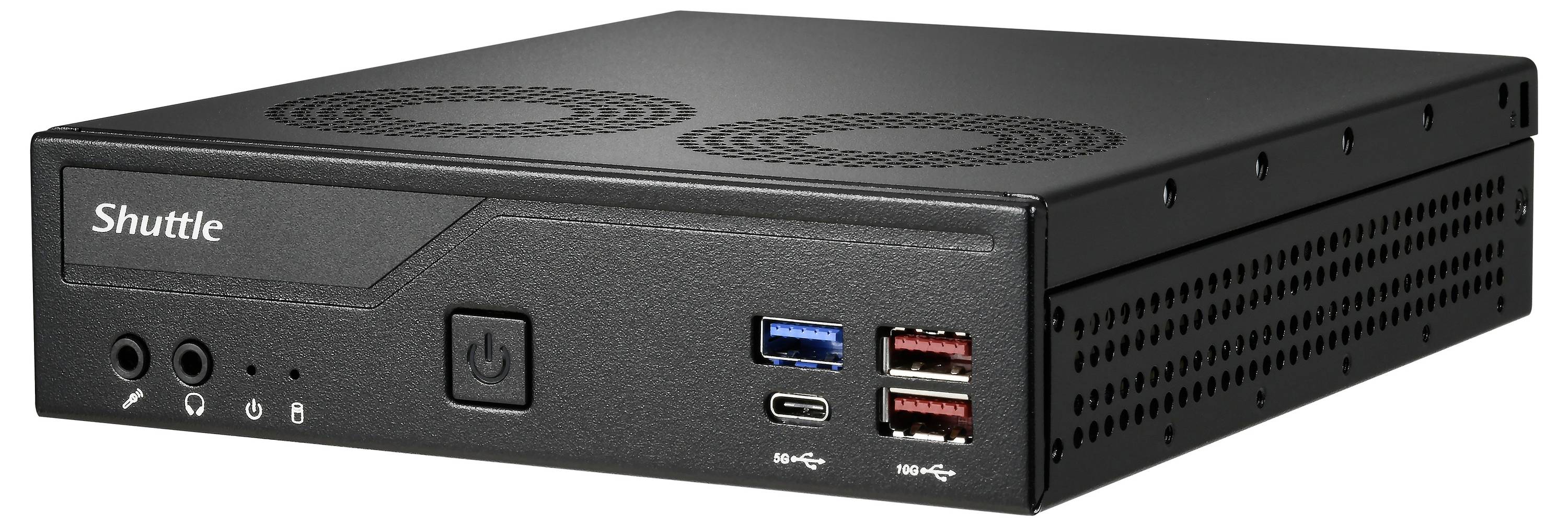

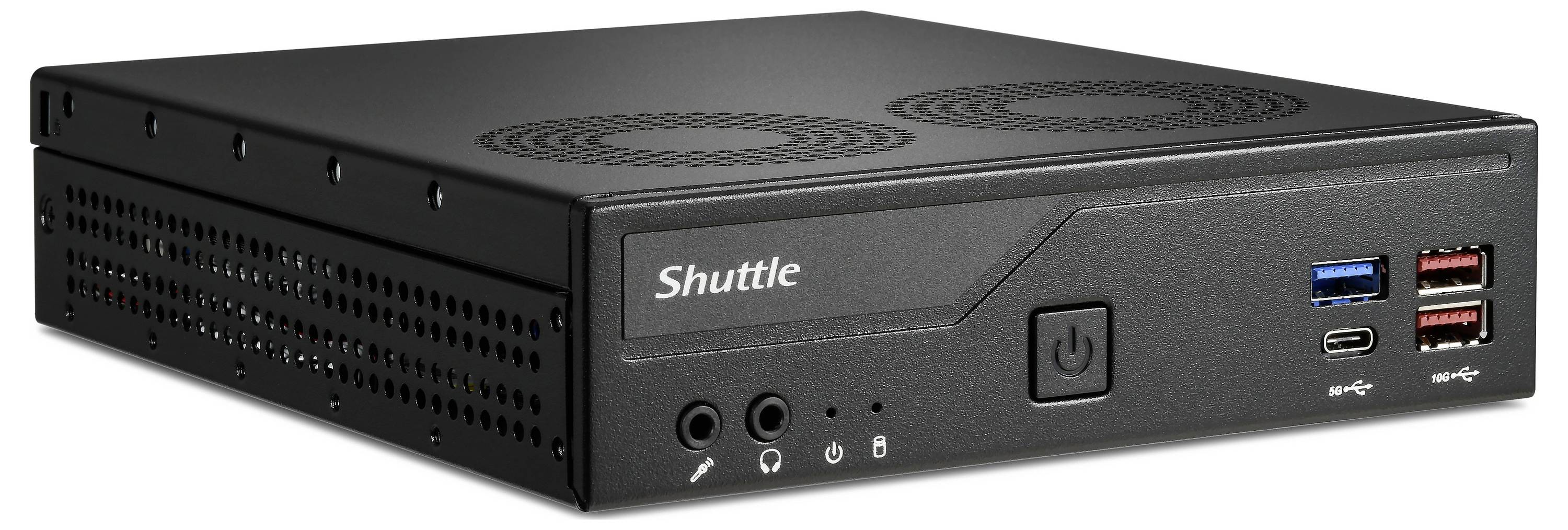

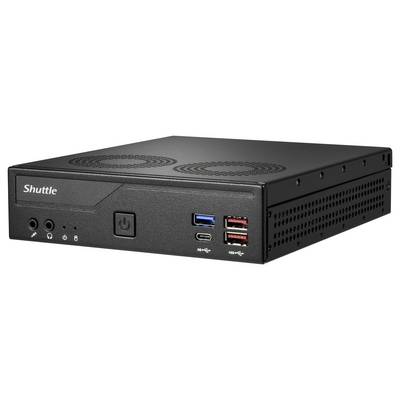

Black mini PC with the 'Shuttle' label on the front. It has connections for USB, audio, and a power switch.

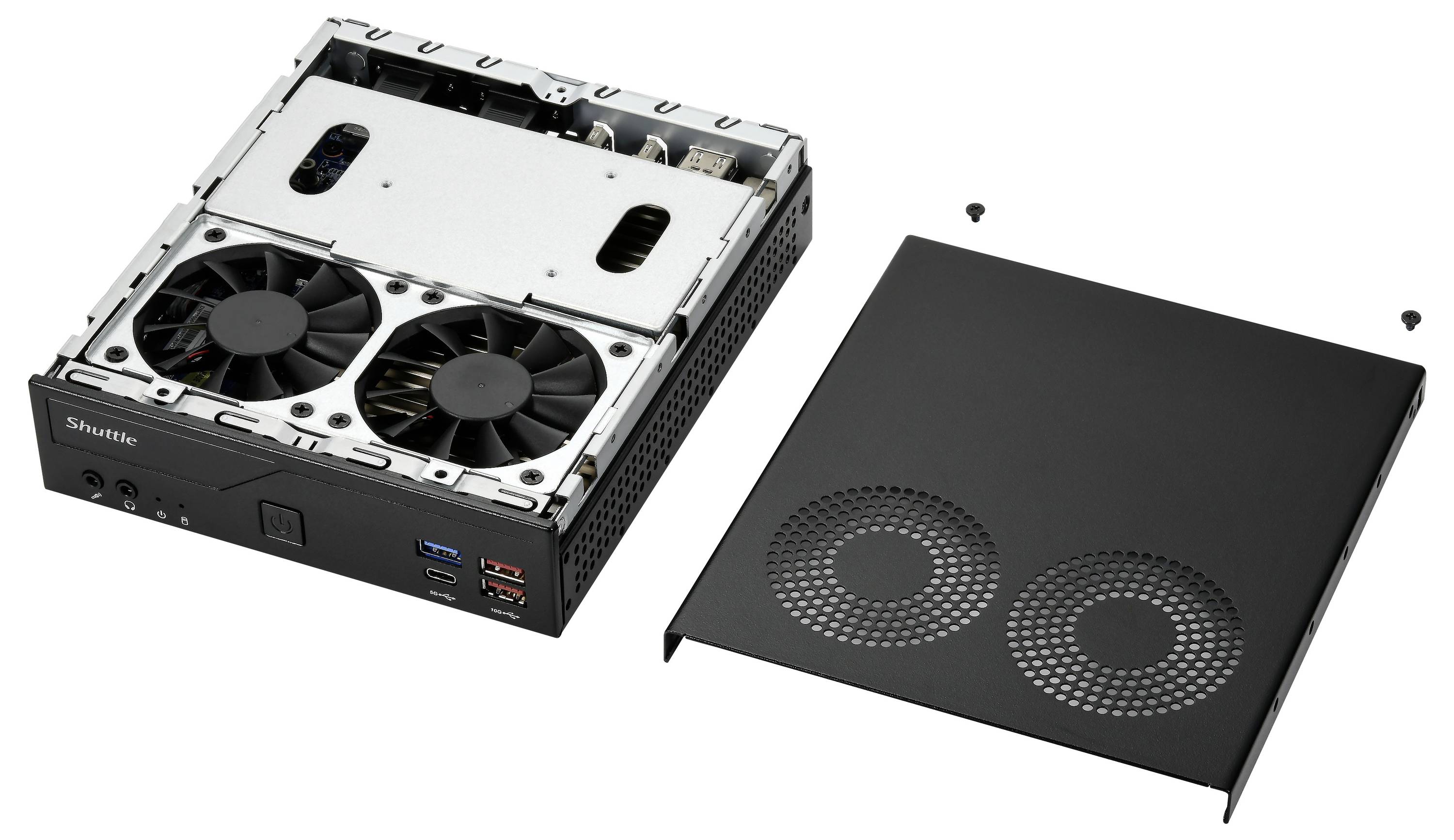

A opened mini PC reveals its interior with two cooling fans. Beside it lies the removed case cover.

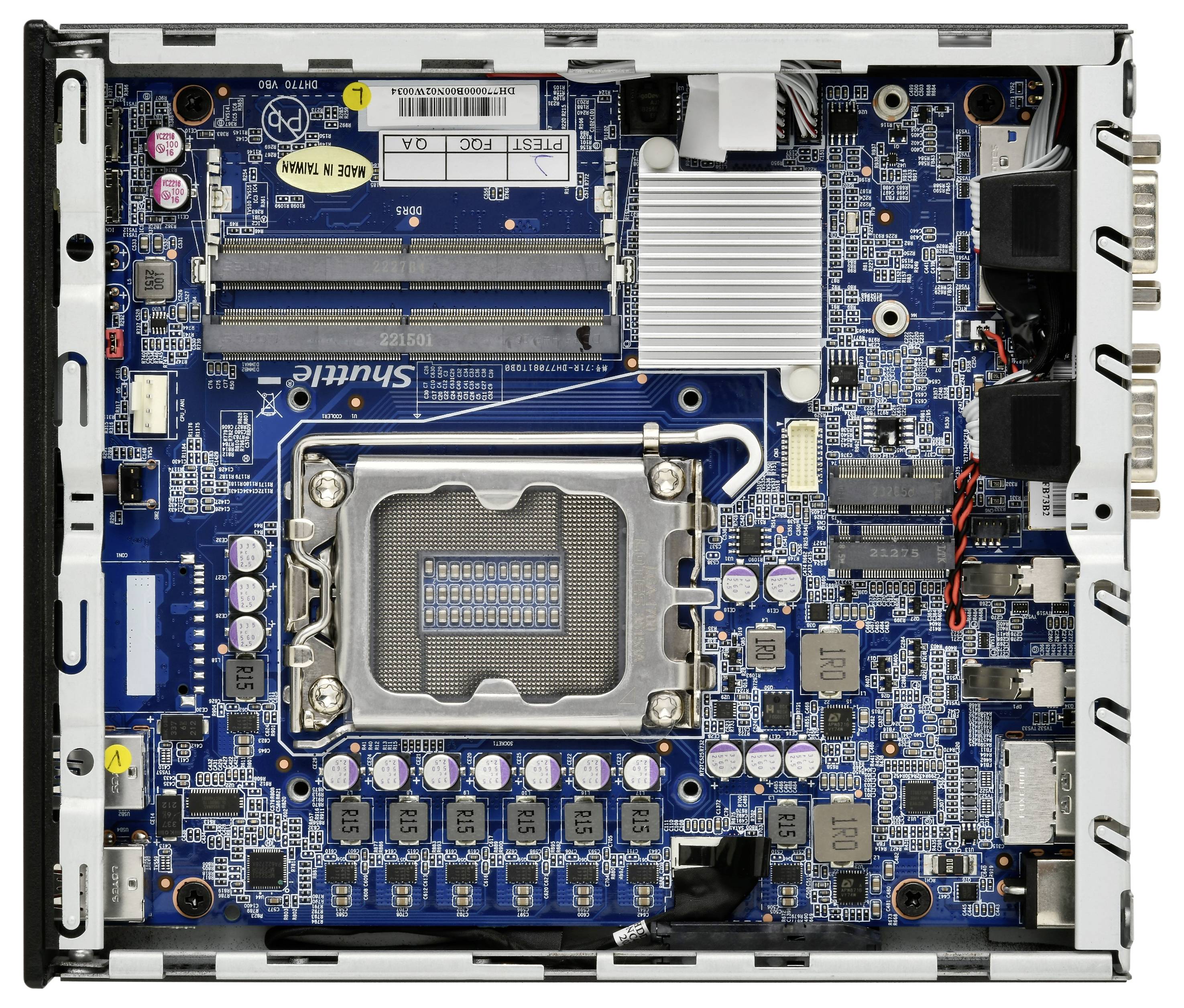

An open motherboard with multiple electronic components, such as capacitors and connectors, visible on a blue circuit board.

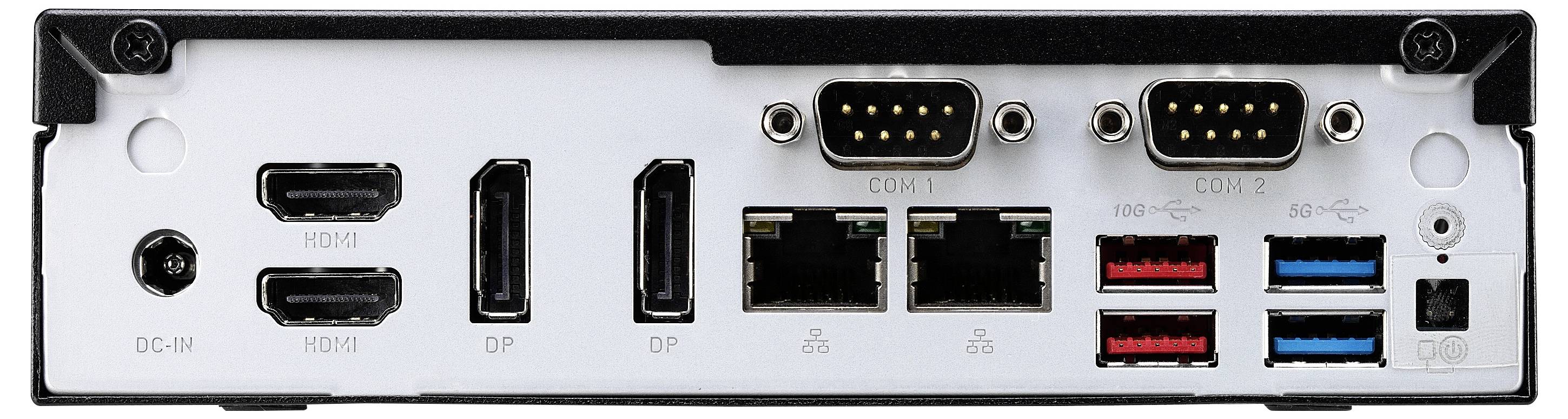

Back of a computer motherboard with multiple ports: HDMI, DisplayPort, serial and USB ports, LAN connections.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Shuttle DH770 Barebone

Highlights & Details

RAM: 0 GB DDR5 RAM
w/o OS

Technical specifications

Processor / Chipset: No CPU
Theft/intruder protection: Security lock slot (cable lock sold separately)
Form factor of the product: Slim-PC
Processor / Chipset (Max. Number of processors): 1
RAM (slot): 2 (total) / 2 (free)
Hard Drive (Type): No HDD
Expansion/Connectivity (Slot): 1 (Total)/ 1 (Free) x M.2 Card - 2280 (Key M)|1 (Total)/ 1 (Free) x M.2 Card - 2230 (Key E)
Expansion/connectivity (interfaces): 1 x microphone (front: 1)|1 x audio output (front: 1)|2 x USB 3.2 Gen 1 (2 front, 3.2 rear)|1 x USB-C 3.2 Gen 1 (1 front)|4 x USB 1 Gen 2 (3 front, 2 rear)|2 x LAN (2.5Gigabit Ethernet) - RJ-45 (2 rear) (RS232 / RS422 / RS485)|2 x HDMI (2 at the back)|2 x DisplayPort (2 at the back)|2 x WLAN antenna|2 x serial
Required supply voltage: Alternating current 100-240 V (50/60 Hz)
Integrated peripherals: LED panel
Storage controller (controller interface type): SATA 6Gb/s
Expansion/connectivity (slots): 1 (total)/ 1 (free) x internal 2.5" (6.4 cm)

Product type: Barebone

Model: Barebone XPC slim DH770

CPU

: 0 GB

RAM type: DDR5 RAM

No. of memory slots: 2

RAM / Max. upgrade: 64 GB

Onboard graphics card: No

HDD capacity (total): 0 GB

Hard drive: 0 GB

Drive: w/o hard drive

Keyboard layout: Keyboard not included

No. of DisplayPort: 2 x

No. of Gigabit LANs: 2 x

No. of HDMI ports: 2 x

No. of serial ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

No of. USB type A 3.1 /3.2 2nd gen: 4 x

No. of USB 3.0 ports: 1 x

Interfaces: HDMI™
DisplayPort
USB C® (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
RJ45

Factory colour: Black

Width: 16.5 cm

Height: 4.3 cm

Depth: 19 cm

Weight: 1.3 kg

PSU power: 120 W

Features: w/o CPU

Operating system (Version): w/o OS

Cooling: Active

Operating voltage: 1.1 V

10/100/1000 Mbps ports: 2 x

Type: External AC adapter

Power supply (details): 100 - 240 V

: 100 x 75 mm

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

AC adapter included: yes

Serial ports quantity: 2

Ethernet LAN: yes

Cable lock slot: yes

ECC: no

VESA mounting: yes

Number of memory slots: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Microphone in: yes

DC-in jack: yes

Built-in speaker(s): no

NVMe: yes

Non-ECC: yes

Trusted Platform Module (TPM): yes

Power cord included: yes

Number of power supply units: 1

Drivers included: yes

On/off switch: yes

Operating relative humidity (H-H): 10 - 90 %

Package weight: 2.1 kg

Built-in processor: no

Number of processors supported: 1

AC adapter output current: 6.32 A

Combo headphone/mic port: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3385110 Shuttle Barebone DH770 DH770

Description

The Shuttle XPC slim DH770 is a PC Barebone in small form factor format and offers flexibility for users looking for a compact yet powerful solution. The system is designed for efficient performance and supports upgradable components that enable adaptation to individual needs. It has a robust housing with integrated LED panel and offers a range of extension slots and slots for extensions. With robust network options, including two Gigabit Ethernet ports, users can expect seamless connectivity for different applications.
With a temperature range from 0°C to 50°C the DH770 is suitable for different environments and is thus a reliable choice for use at home and at work. It supports advanced audio output standards and offers connection interfaces such as USB 3.2, HDMI and DisplayPort. With its Dual-channel storage architecture and the easy access for hardware upgrades, this slim PC offers versatility and efficiency in a compact package.
