Shuttle Barebone DL30N Intel® N N100 3.4 GHz Intel FreeDOS DL30N
EAN:
Part number:
Item no:
Datasheet (PDF)

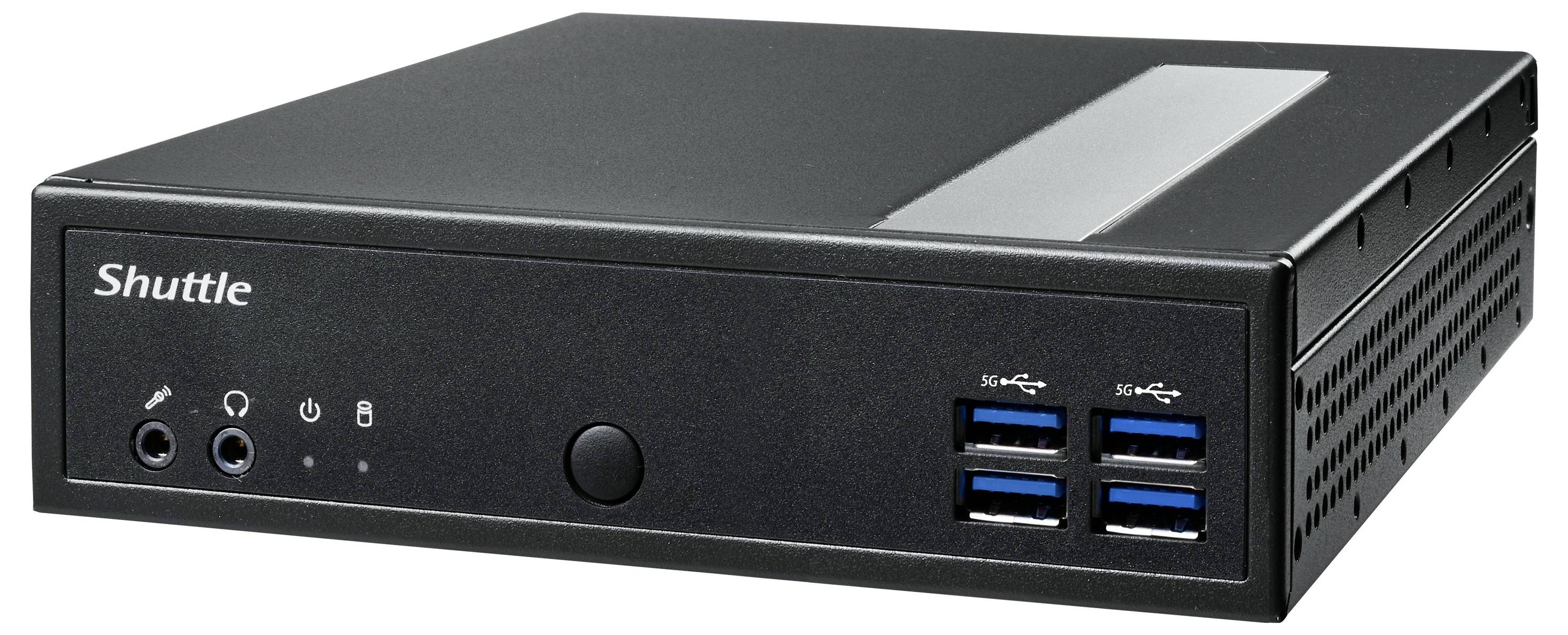

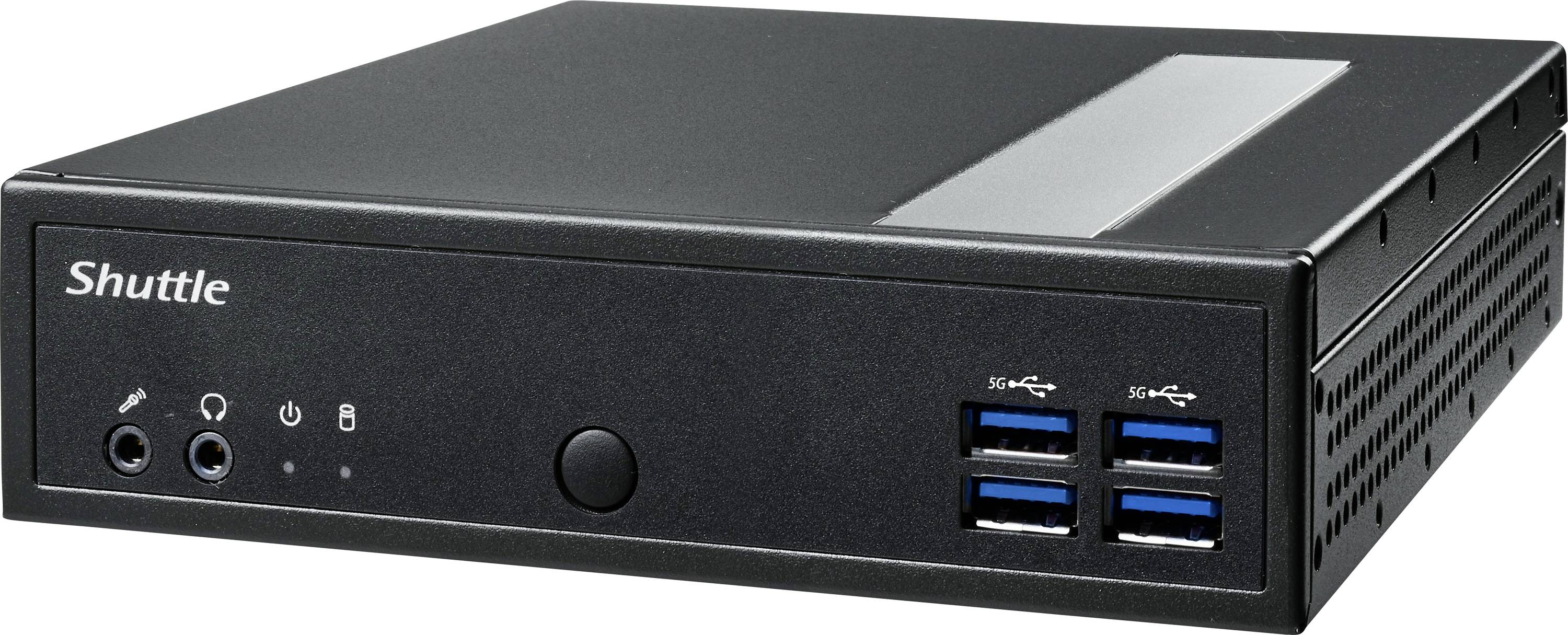

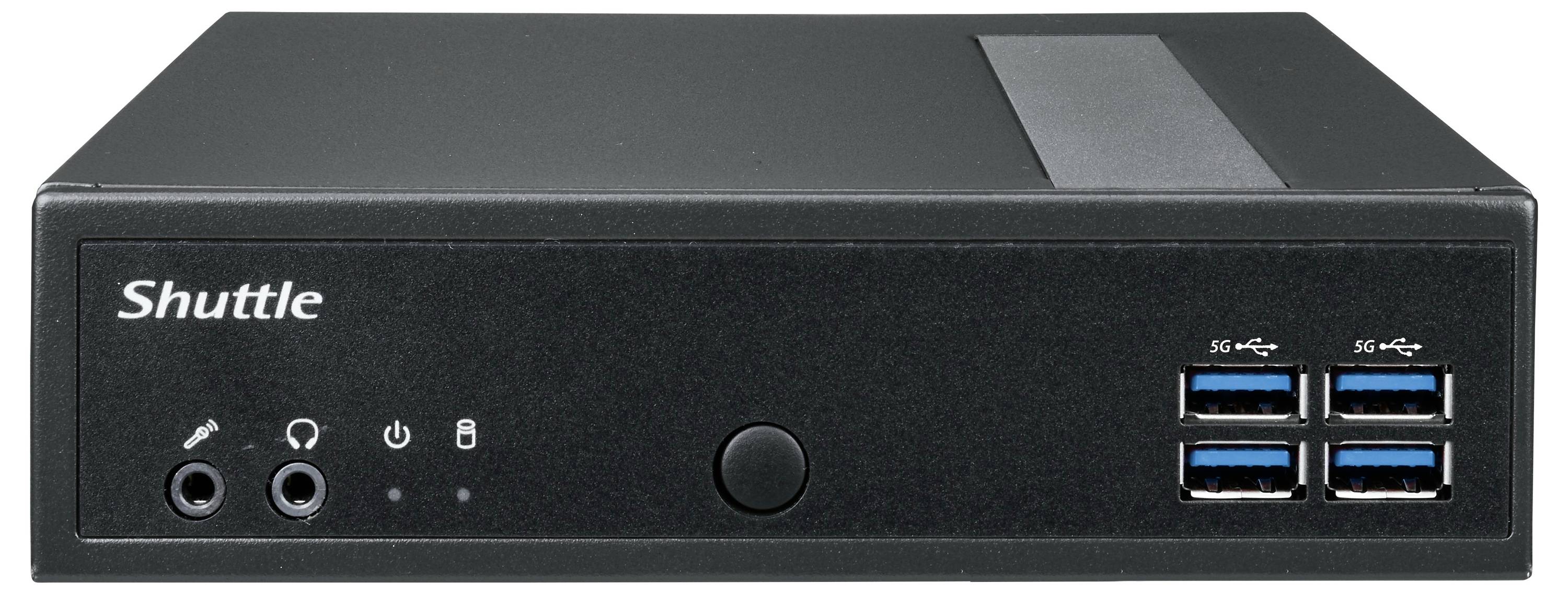

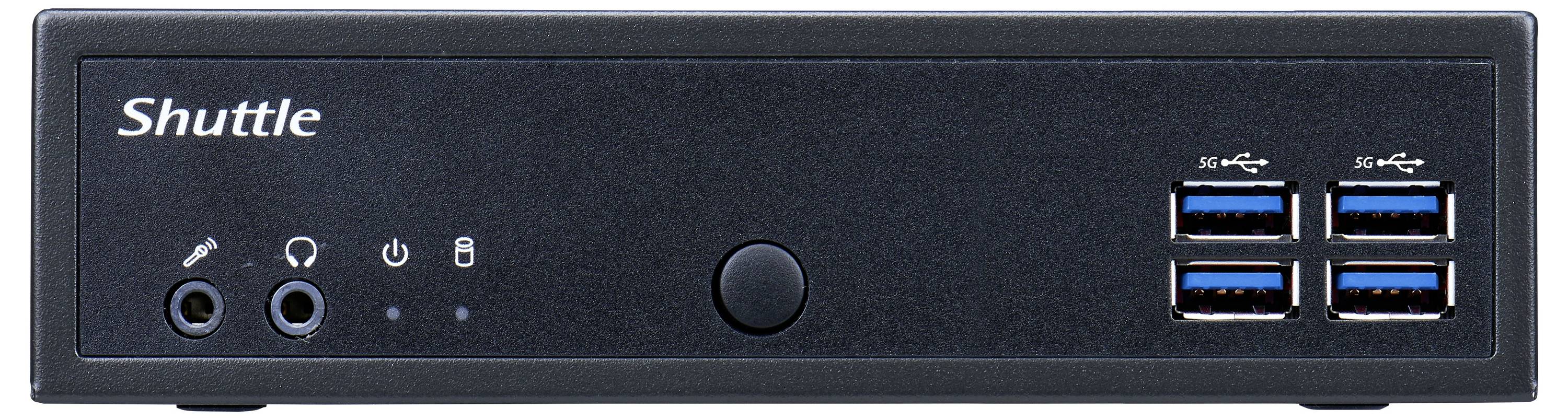

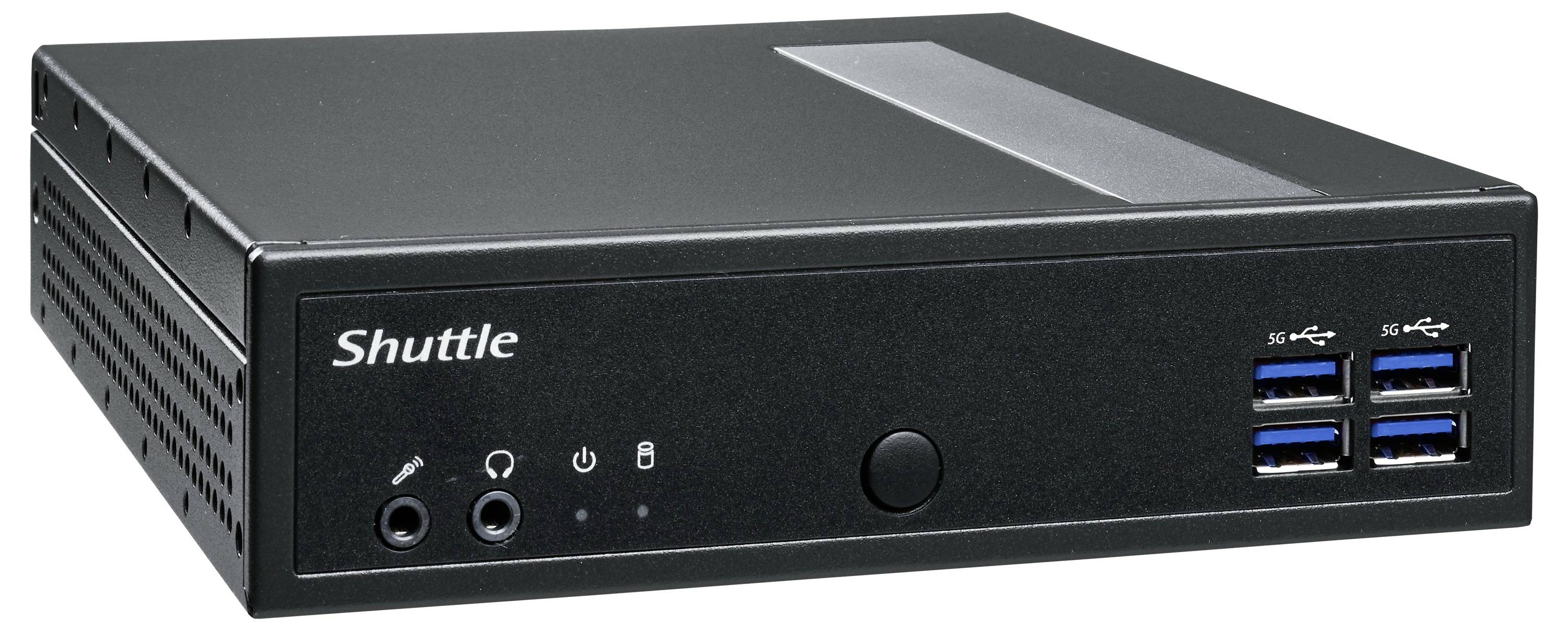

Shuttle DL30N Barebone
Highlights & Details
- 4096 x 2160 Pixel
- Intel® N N100 4 core(s) / max. 3.4 GHz
- RAM: 0 GB
- Intel
- w/o OS
Technical specifications
- Processor threads: 4
- Processor boost frequency:3.4 GHz
- Built-in processor: Yes
- Thermal Design Power (TDP) 6 W
- ECC supported by processor: No.
- Main memory type SO-DIMM
- Number of memory slots: 1
- RAM maximum: 16 GB
- Supported memory speed: 4800 MHz
- Supported memory: DDR5 SDRAM
- Memory channels: Single channel
- Memory voltage 1.1 V
- ECC: No.
- Without ECC: Yes
- Supported drives: HDD & SSD
- Supported drive sizes: 2.5,M.2
- Drive interface: PCI Express, Serial ATA III.
- NVMe SSD: Yes
- Number of supported storage drives: 2
- Built-in card reader: No.
- Built-in graphics adapter: Yes
- Graphics card family: Intel
- Built-in graphics card model: Intel® UHD Graphics
- Separate video card model: Not available
- Maximum resolution 4096 x 2160 pixel
- Number of display supported: 3
- Built-in speakers: No.
- Ethernet/LAN: Yes
- LAN-Controller Intel I226-LM

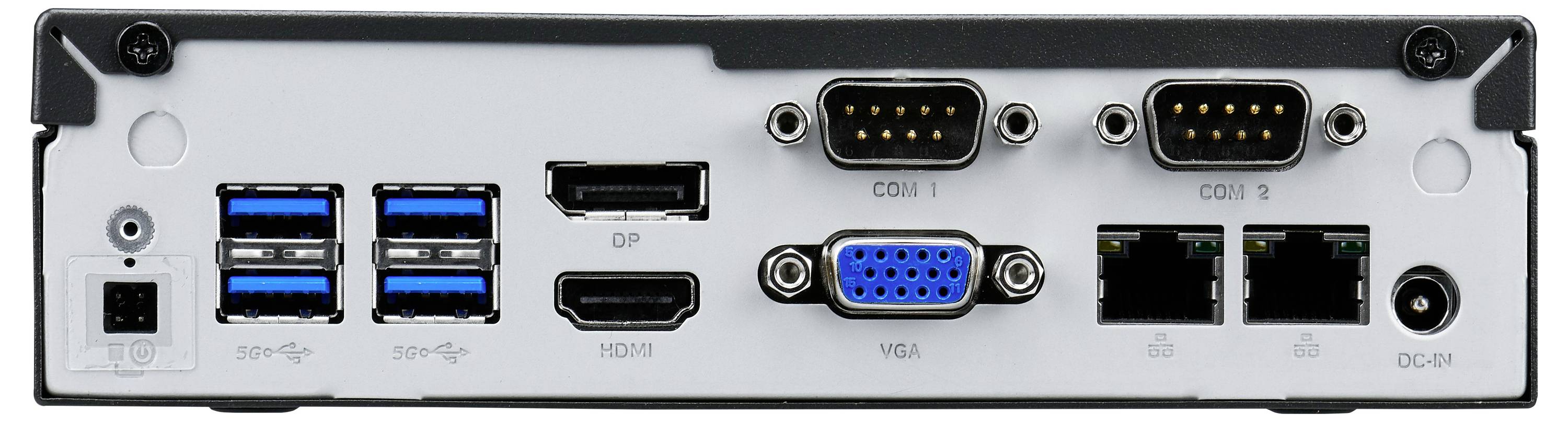

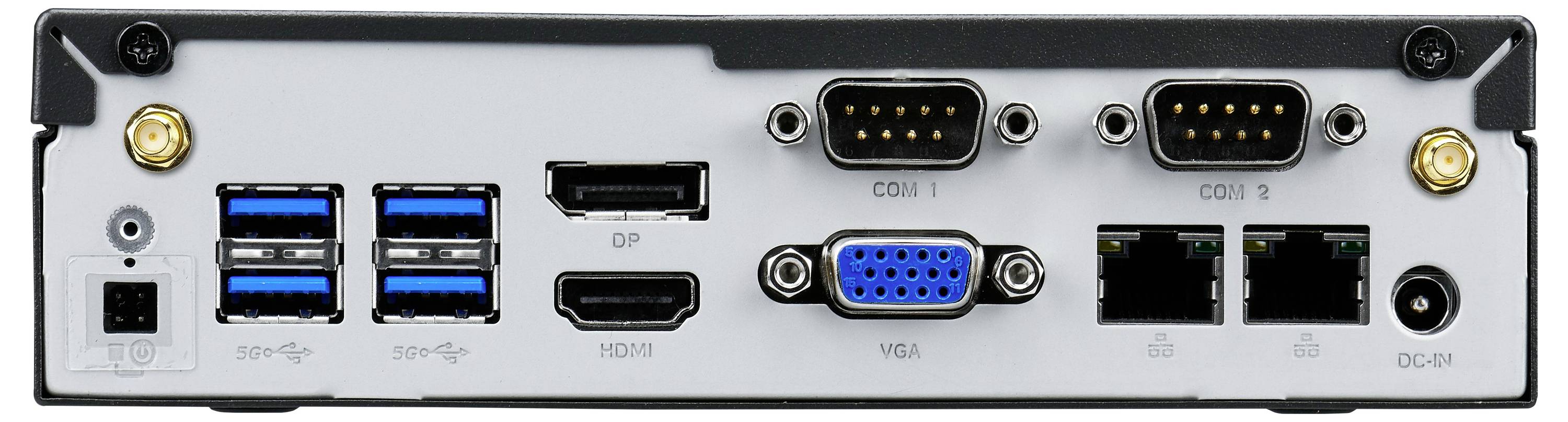

- USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 8
- Number of HDMI connections: 1
- HDMI version: 2.0b
- Number of VGA (D-Sub) Connections: 1
- Number of DisplayPort connections: 1
- DisplayPort version: 1.4a
- Microphone input: Yes
- Headphone outputs: 1
- Number of Ethernet LAN connections (RJ-45): 2
- Number of serial connections: 2
- DC connection (DC): Yes
- 1.35 L PC housing
- Cooling: Passive
- On/off switch: Yes
- LED indicators: HDD, performance
- Case material: Steel
- Cable lock slot: Yes
- Slot type cable lock Kensington
- VESA-bracket: Yes
- Panel-mounting interface 100 x 75 mm
- Product type: Mini PC Barebone
- Number of supported processors: 1
- BIOS TYPE UEFI AMI
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) Version: 2.0
- Audio chip: Realtek ALC888S
- Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
- Supports Windows operating systems: Windows 10, Windows 11 x64
- Supported Linux operating systems: Yes
- Installed operating system: No.
- Sustainability Compliance: Yes
- Sustainability certificates: ENERGY STAR, ERP
- Power supply type: External AC adapter
- Power supply 65 W
- Number of power supply units: 1
- AC input voltage 100 - 240 V
- AC input frequency 50/60 Hz
- Power supply output voltage 19 V
- AC adapter output current 3.42 A
- Operating temperature: 0 - 40 °C
- Operating relative humidity: 10 - 90%
- Power cable included: Yes
- AC mains adapter: Yes
- Quick start overview: Yes
- Drivers included: Yes
- Product type
Barebone
- Model
DL30N
- Screen size diagonal (inches)
0 inch
- Display resolution
4096 x 2160 Pixel
- CPU series
Intel® N
- CPU
Intel® N N100
- Processor/type
N100
- Processor cores (No.)
4 x
- CPU turbo clock speed (max.)
3.4 GHz
- CPU cache
6 MB
0 GB
- No. of memory slots
1
- RAM / Max. upgrade
16 GB
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
Intel
- HDD capacity (total)
0 GB
- Hard drive
0 GB
- Keyboard layout
Keyboard not included
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of serial ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
8 x
- No. of VGA ports
1 x
- Interfaces
Headphone input
- Factory colour
Black
- Width
165 mm
- Height
43 mm
- Depth
190 mm
- Weight
800 g
- PSU power
65 W
- Operating system (Version)
w/o OS
- Control LEDs
Yes
- Design height
43 mm
- No. of 10 Gb LAN ports
2 x
- Cooling
Passive
- Power supply (LOV)
mains-powered
- Wireless charging
Yes
- Power consumption (max.)
6 W
- No. of HDMI connections
1
- Power supply (details)
100 - 240 V
- Built-in speakers
No
100 x 75 mm
- Wall mounting option
75 x 75mm VESA standard
- Wi-Fi
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3221549 Shuttle Barebone DL30N Intel® N N100 3.4 GHz Intel FreeDOS DL30N
User & Safety Instructions
User & Safety Instructions 3221549 Shuttle Barebone DL30N Intel® N N100 3.4 GHz Intel FreeDOS DL30N
Description
The Shuttle XPC slim barebones of the DL30N series are the successors of the DL20N series. This fanless slim PC barebones with economical Intel "Alder Lake-N" processor of the 12. Generation is suitable both for building especially slim PC-systems with drives and operating system, as well as for purely network-based applications in client/server environments. Two Intel 2.5G network ports provide excellent network connectivity and the optional WWN03 Shuttle accessory allows the installation of an LTE module for mobile Internet access. The integrated graphics are based on Intel's powerful Intel UHD graphics with hardware acceleration for 4K videos. This slim PC works practically silently together with SSD memory.
This text is machine translated.
This text is machine translated.
Features
- 1.35 L PC housing
- Product type: Mini PC Barebone
- BIOS TYPE UEFI AMI
- Supported memory: DDR5 SDRAM
- Number of memory slots: 1
- RAM maximum: 16 GB
- Supported drives: HDD & SSD
- Drive interface: PCI Express
- Serial ATA III.
- Number of Ethernet LAN connections (RJ-45): 2
- Cooling: Passive
- Power supply 65 W
