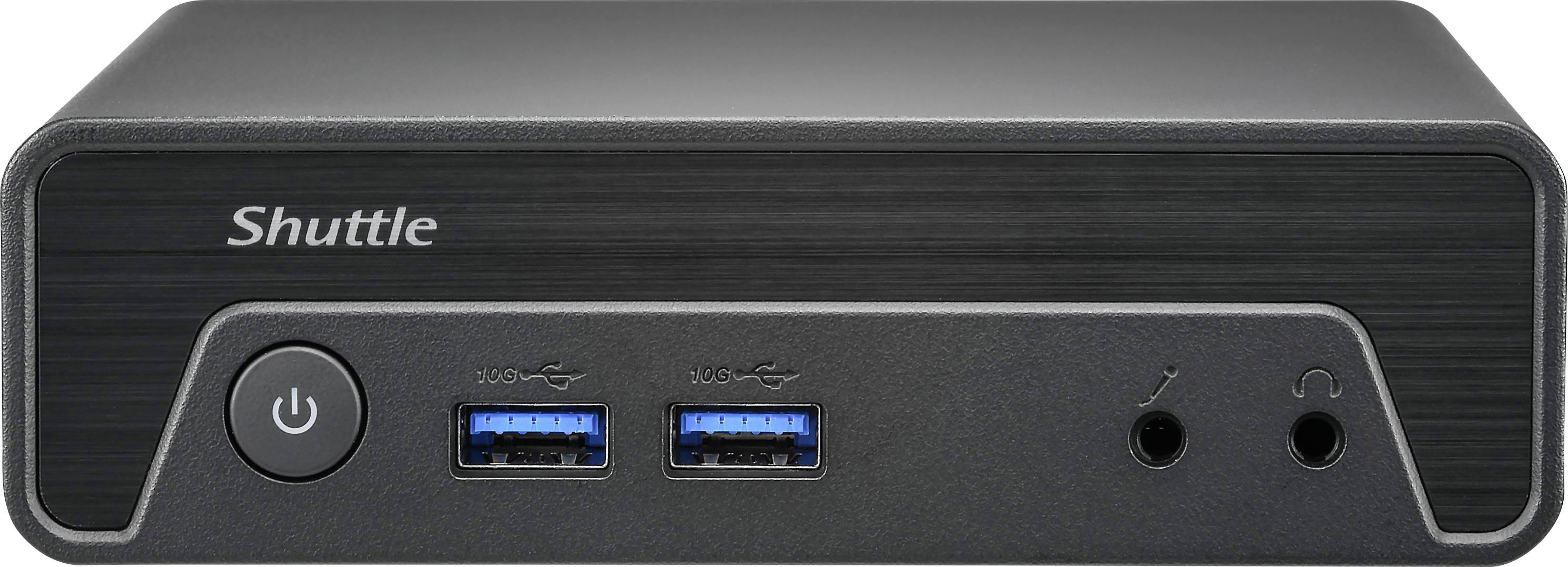

A compact, black mini PC by Shuttle with a power button, two USB ports, and two audio jacks on the front panel, designed for efficient computing.

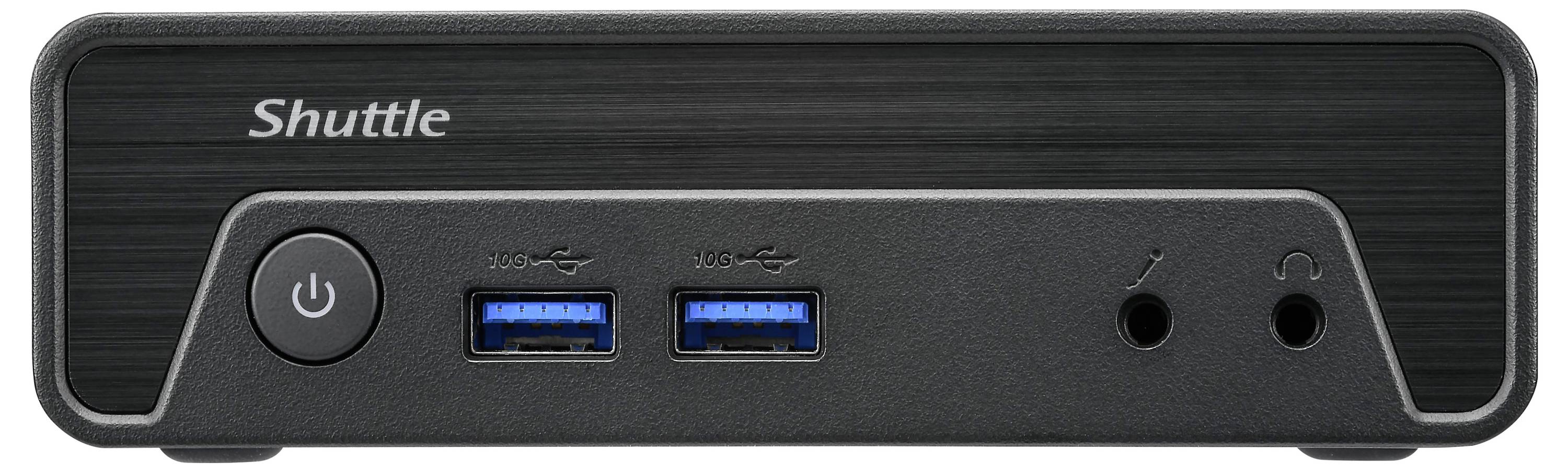

Front view of a compact Shuttle mini PC with two USB 3.0 ports, a power button, and audio jacks, suitable for versatile computing needs.

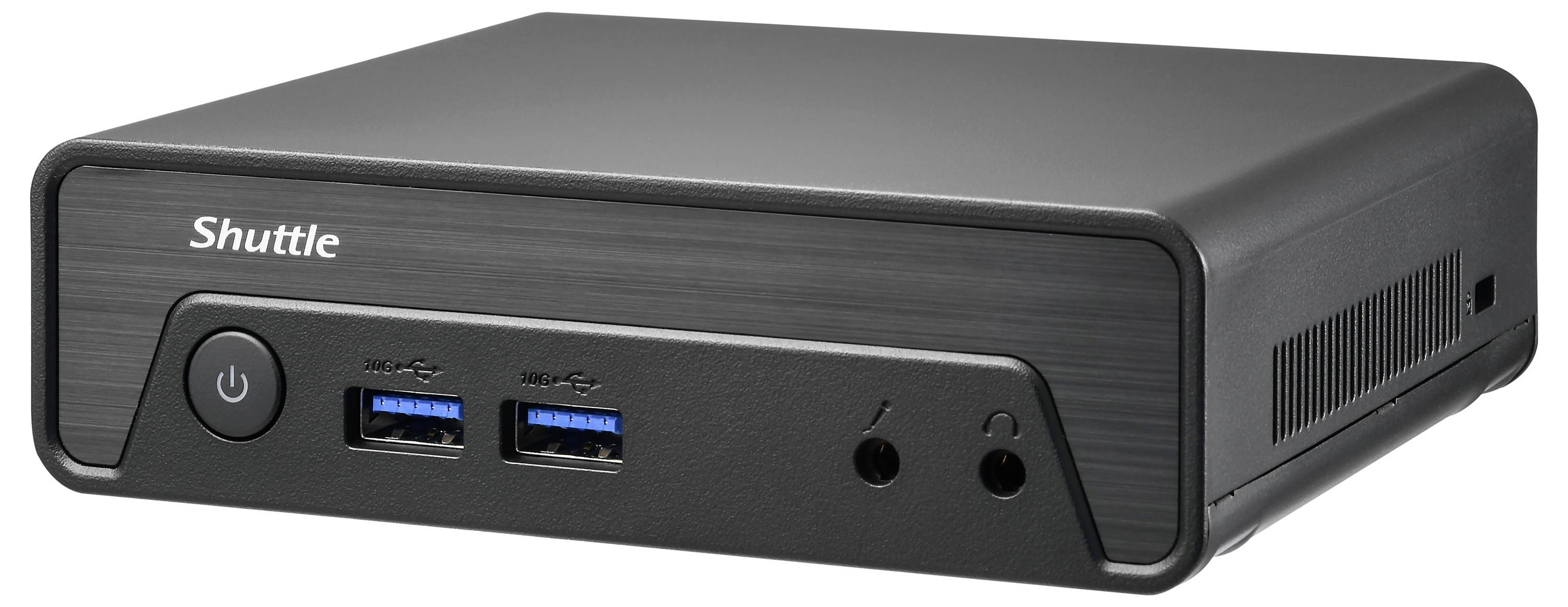

A compact, black mini-PC with 'Shuttle' branding on the front, featuring a power button, USB ports, and audio jacks.

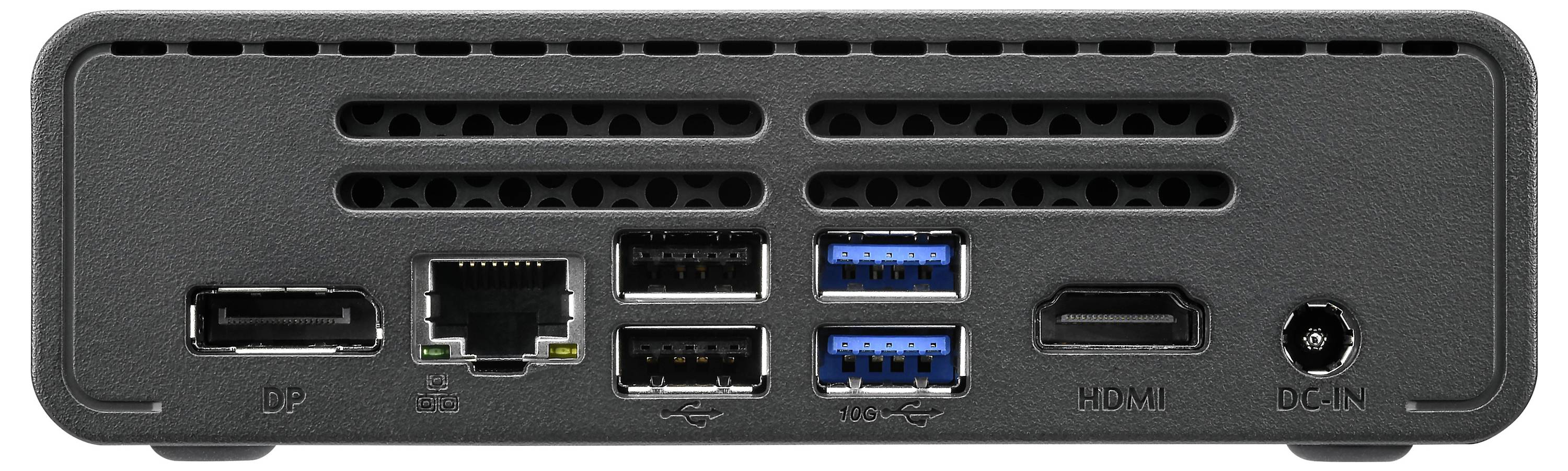

Rear view of a compact computer showing various ports: DisplayPort, Ethernet, multiple USB ports, HDMI, and DC power input.

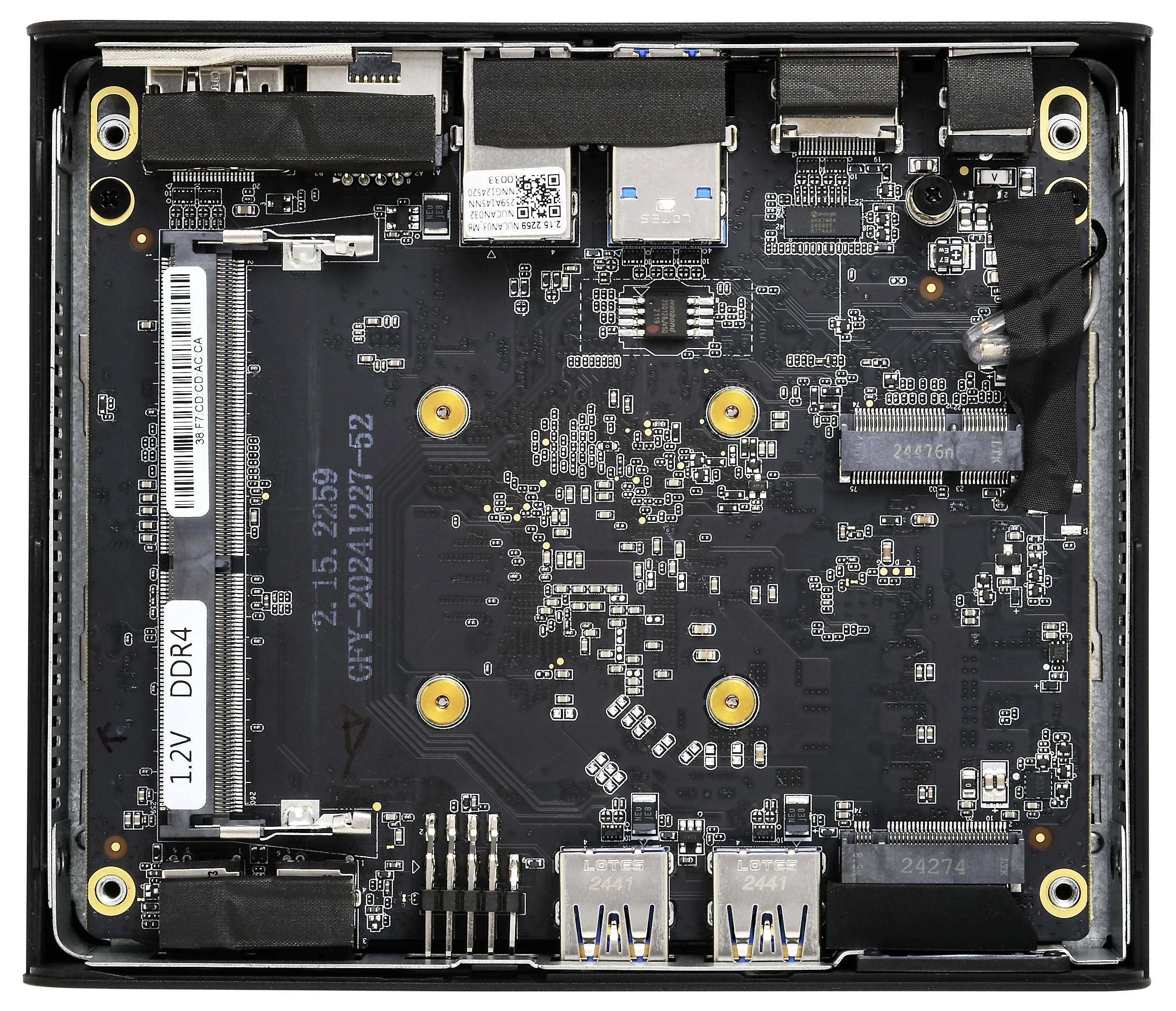

A compact computer motherboard featuring USB ports, RAM slots labeled '12V DDR4,' and various connectors, set in a small, square casing.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Shuttle Nano NE10N Barebone

N100 4 core(s) / max. 3.4 GHz
SO-DIMM

Technical specifications

SSD form factor M.2
Graphics card family: Intel
Built-in graphics card model: Intel® UHD Graphics
HDMI version 2.0
Panel-mounting interface 75 x 75.100 x 100 mm
Product type: Mini PC Barebone
Motherboard Intel SoC

Product type: Barebone

Model: Nano NE10N

CPU: N100

Processor/type: N100

Processor cores (No.): 4 x

CPU turbo clock speed (max.): 3.4 GHz

CPU cache: 6 MB

RAM type: SO-DIMM

No. of memory slots: 1

RAM / Max. upgrade: 16 GB

Onboard graphics card: Yes

HDD capacity (total): 0 GB

Hard drive: 0 GB

Keyboard layout: Keyboard not included

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 4 x

Factory colour: Black

Width: 135 mm

Height: 39 mm

Depth: 115 mm

Weight: 600 g

PSU power: 65 W

Features: w/o HDD
w/o RAM

Cooling: Passive

Material (details): Plastic

Operating voltage: 1.2 V

10/100/1000 Mbps ports: 1 x

Type: External AC adapter

Power supply (details): 100 - 240 V

Wi-Fi: No

UKCA: not relevant

Operating temperature (T-T): 0 - 40 °C

AC adapter included: yes

Ethernet LAN: yes

Cable lock slot: yes

ECC: no

VESA mounting: yes

Number of memory slots: 1

Headphone outputs: 1

Microphone in: yes

DC-in jack: yes

Built-in speaker(s): no

Card reader integrated: no

Non-ECC: yes

Trusted Platform Module (TPM): yes

Quick start guide: yes

Power cord included: yes

Number of power supply units: 1

Drivers included: yes

Operating relative humidity (H-H): 10 - 90 %

Package weight: 1.5 kg

Built-in processor: yes

Number of processors supported: 1

AC adapter output current: 3.42 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3728716 Shuttle Barebone Nano NE10N N100 3.4 GHz NE10N

Description

The Shuttle XPC nano NE10N was developed for users who are looking for a compact computer solution without any loss of performance. With its small form factor and mini-PC design it offers an efficient, space-saving option suitable for different applications. The N series Intel processor with quad-core capabilities and a turbo speed of up to 3.4 GHz ensure smooth operation in everyday tasks, while the trusted platform module (TPM 2.0) offers additional security for sensitive data. This system supports a variety of expansion slots, making it versatile for a variety of peripherals and upgrades.
The Shuttle XPC nano NE10N can be operated in a temperature range from 0 °C to 40 °C and can thus be adjusted to different environments, whether in the home office or in a commercial environment. With multiple connection options, including HDMI, Mini DisplayPort and USB 2.0, it can be easily integrated into existing devices and peripherals. Experience the combination of performance and efficiency with this mini-PC solution.

This text is machine translated.
