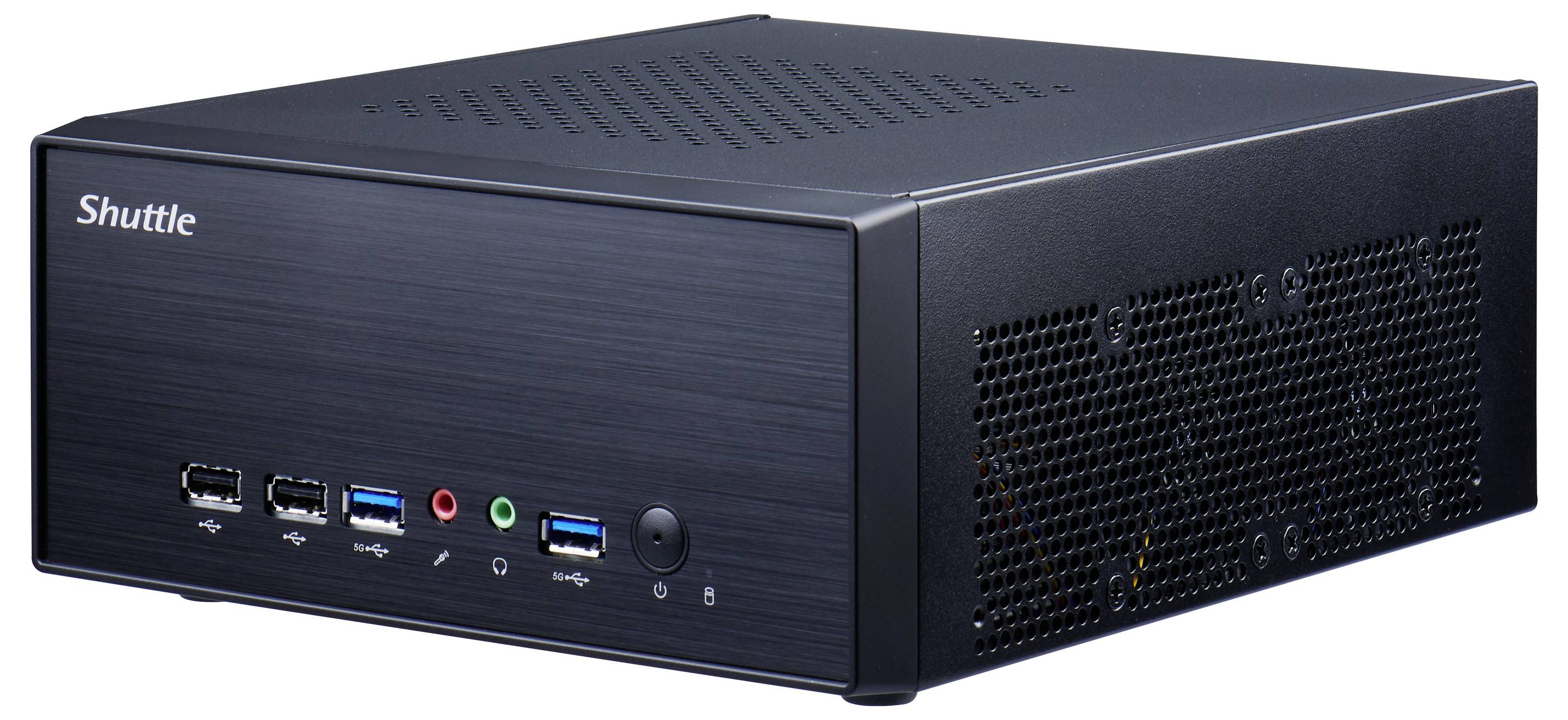

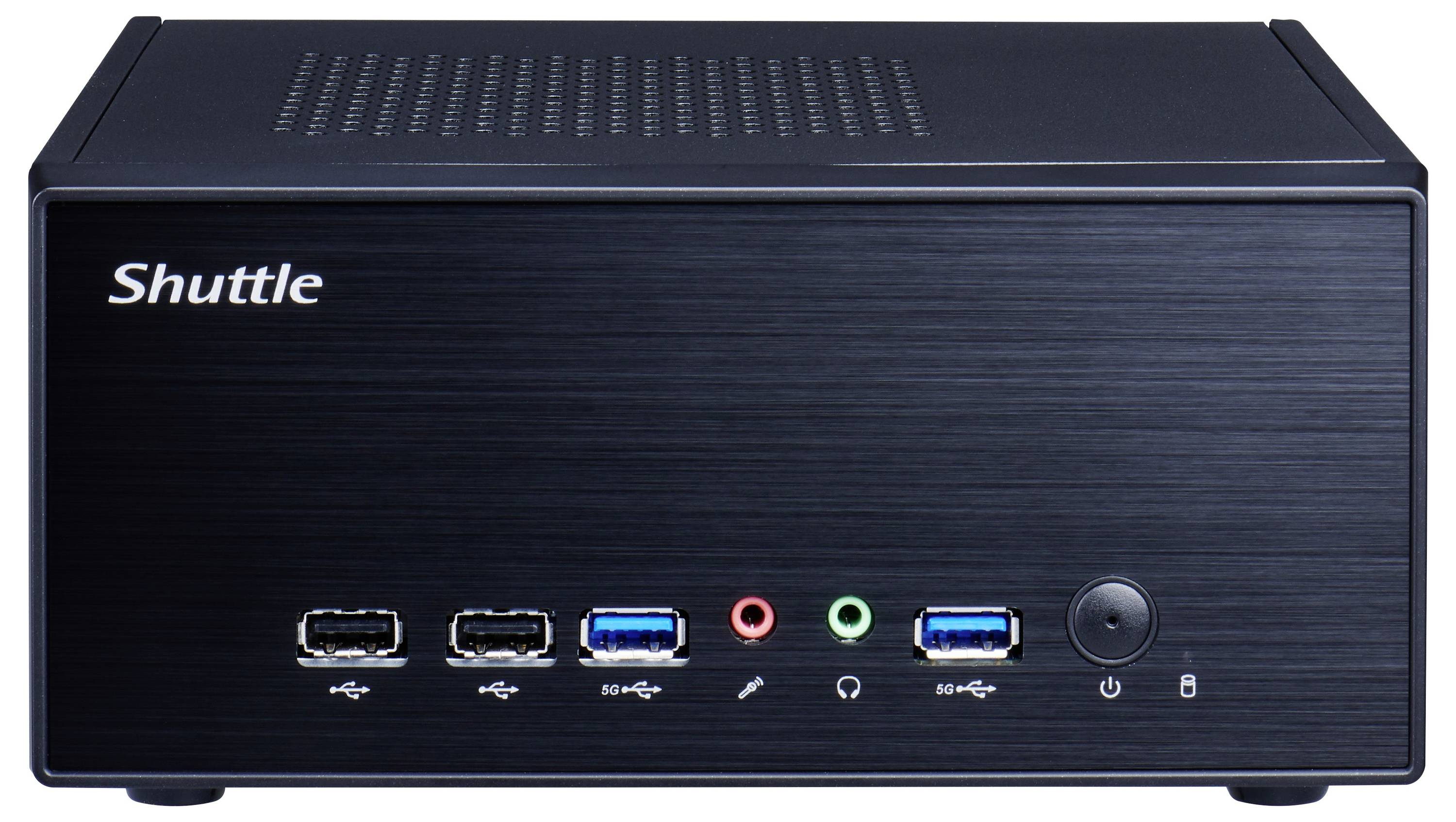

A small, black desktop computer with 'Shuttle' written on the front, featuring multiple USB ports and audio connections.

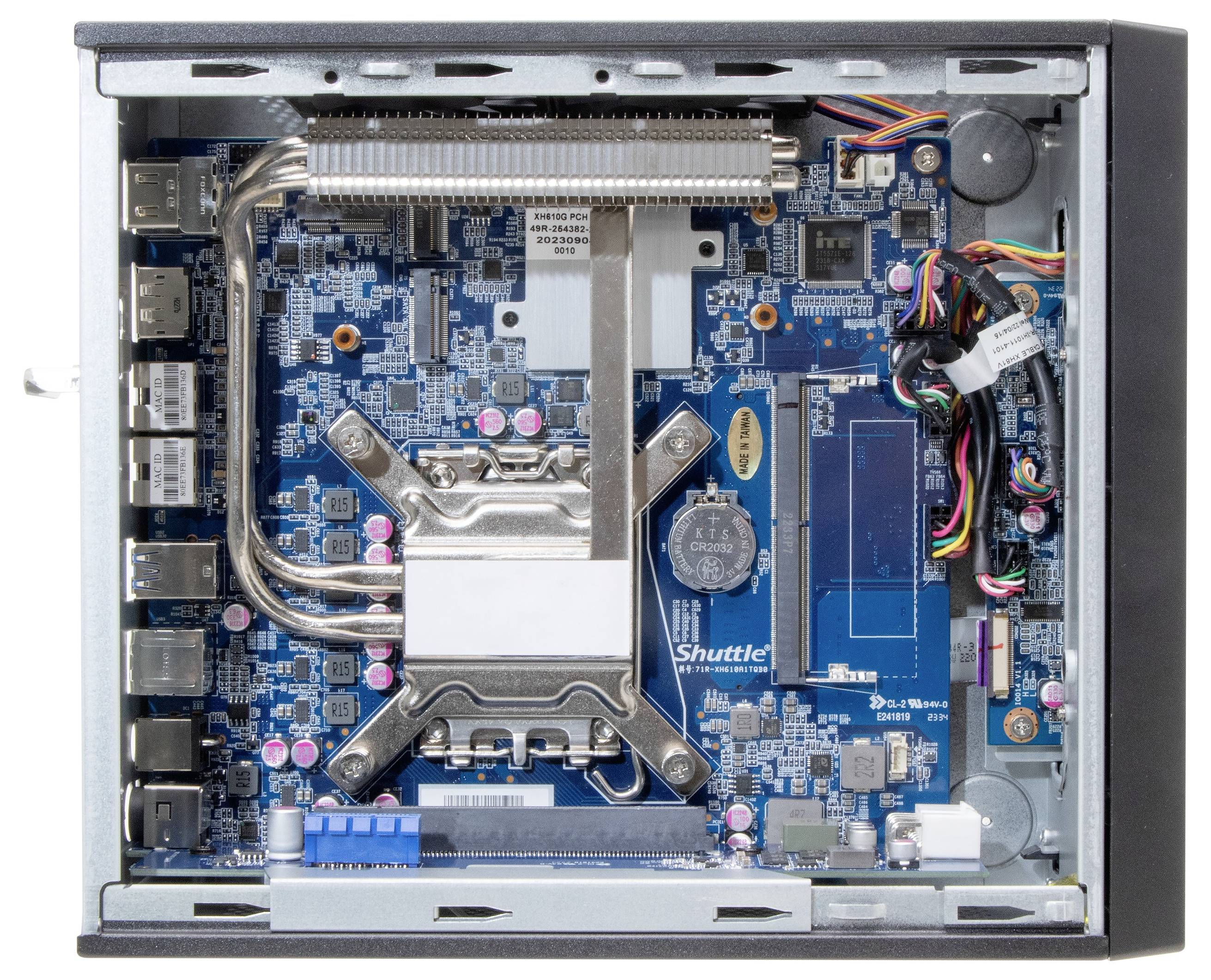

The image shows the interior of an open computer case with a visible motherboard, cables, and cooling device.

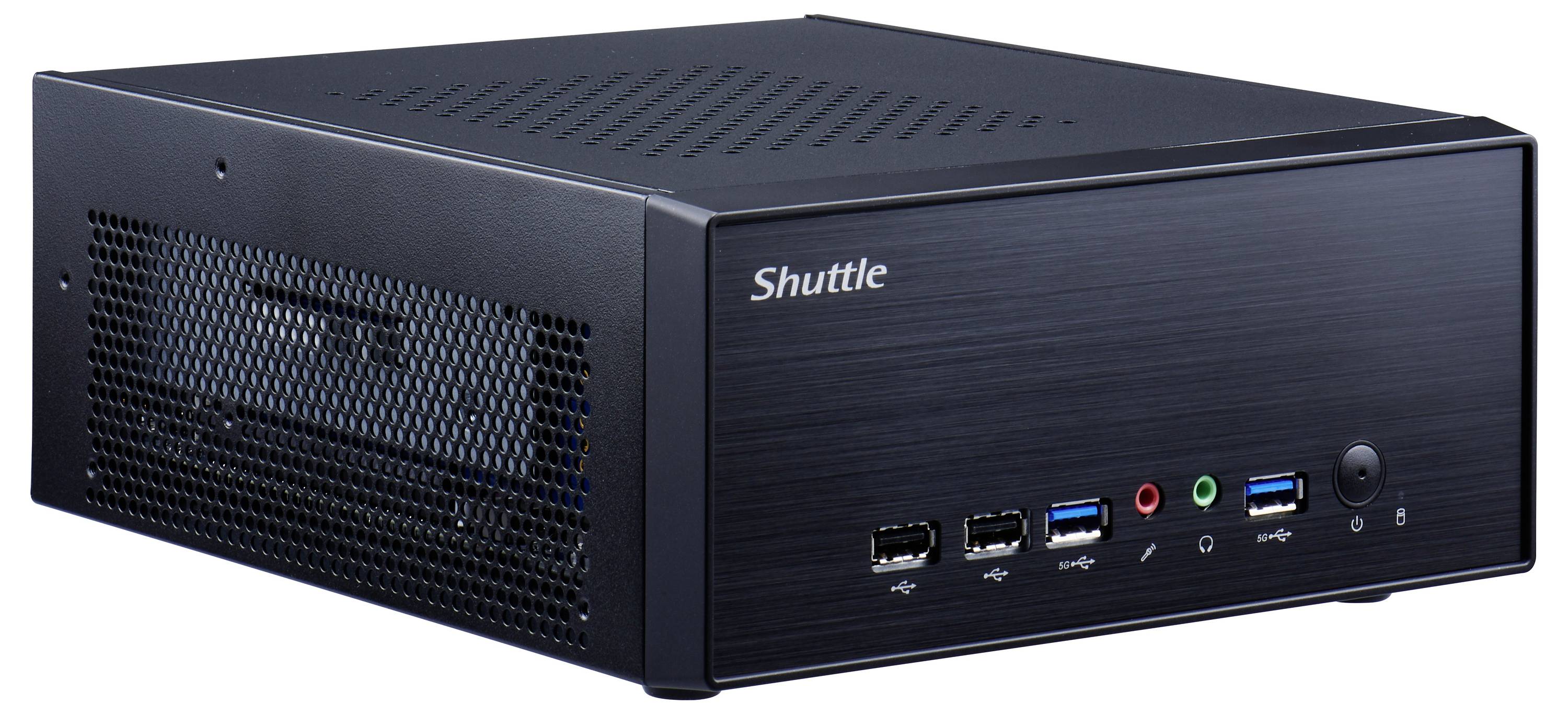

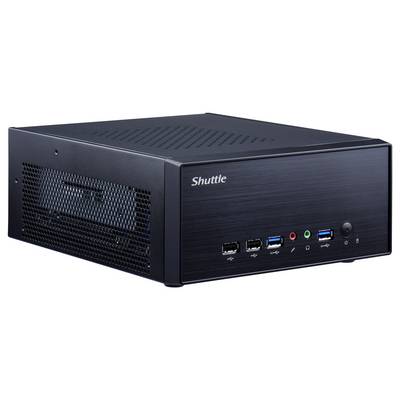

A black mini PC with 'Shuttle' written on the front. It features multiple USB ports and audio connections.

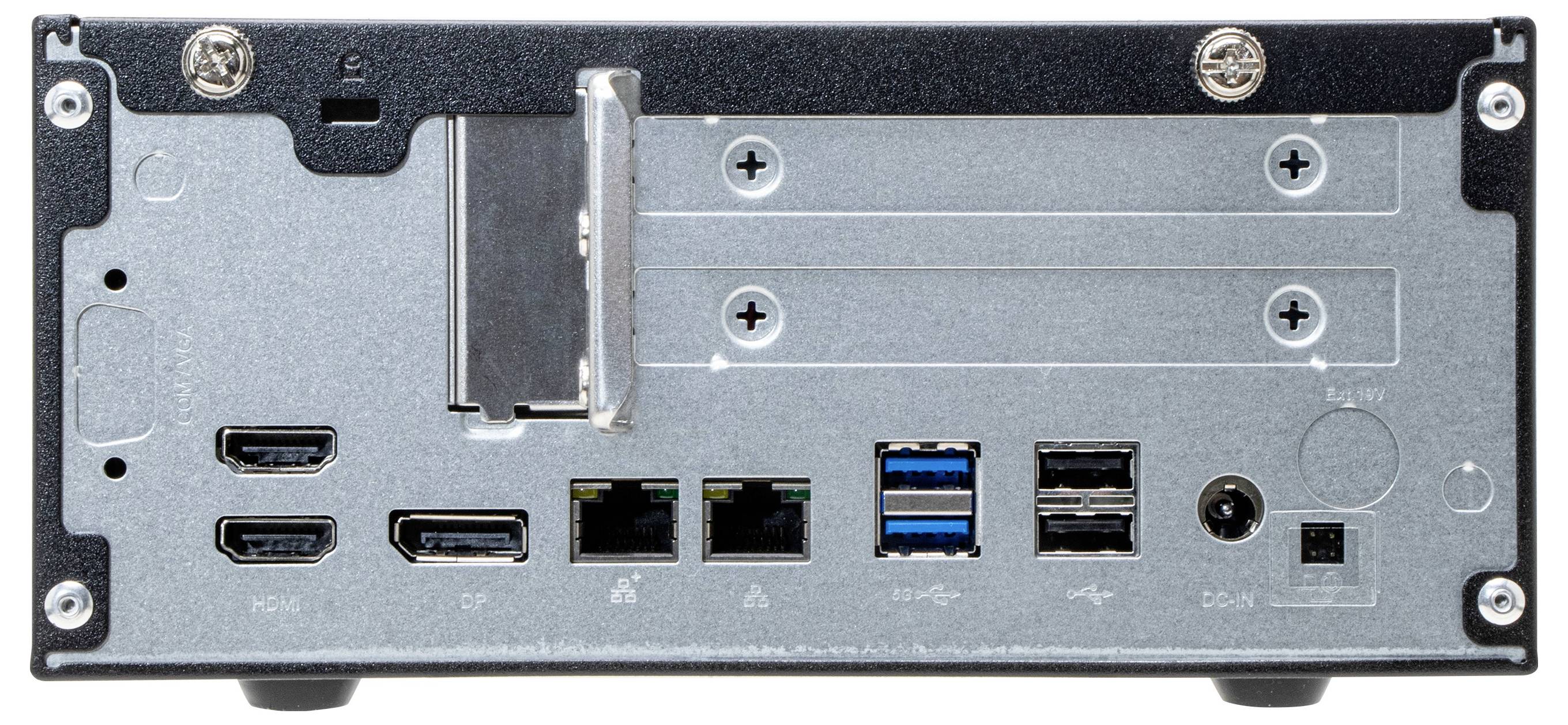

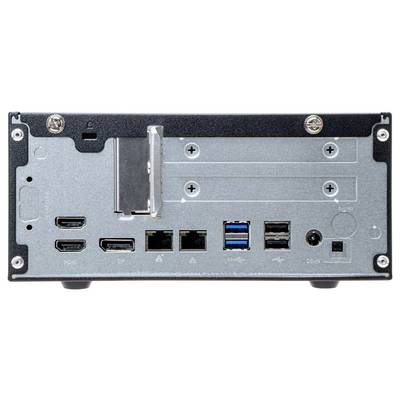

A silver-coloured computer with multiple ports on the back, including HDMI, USB, Ethernet, and power connection.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Shuttle XH610G2 2.5 cm (1 inch) Barebone

Highlights & Details

Display: 2.5 cm (1 inch)
RAM: 0 GB DDR5 RAM
w/o OS

Technical specifications

Processor / Chipset: No CPU
Theft/intruder protection: Security lock slot (cable lock sold separately)
Form factor of the product: Slim-PC
Processor / Chipset (Max. Number of processors): 1
RAM (slot): 2 (total) / 2 (free)
Hard Drive (Type): No HDD
Expansion/connectivity (slot): 1 1 (total)/ 1 (free) x M.2 Card - 2230 (key E)|1 (total)/ 1 (free) x M.2 Card - 2280 (full format (PCIe/SATA signal only))|1 (total)/ 1 (free) x M.2 Card - 1 (SATA/PCI Express x4 (NVMe))|1 (total) / 1 (free) x PCIe x1|2280 (total)
Expansion/connectivity (interfaces): 4 x USB 2.0 (2 front, 2 rear)|45 x USB 3.2 Gen 1 (2 front, 1 rear)|1 x audio output - mini jack (1 front)|1 x microphone - mini jack (1 front)|1 x DisplayPort (2 back)|1 x LAN (Gigabit Ethernet) – RJ-4 (1 back)|1 x LAN (2.5Gigabit Ethernet) – RJ-45 (1 rear)
Required supply voltage: Alternating current 100-240 V (50/60 Hz)
Integrated peripherals: LED panel
Storage controller (controller interface type): SATA 6Gb/s
Expansion/connectivity (slots): 1 (total)/ 1 (free) x internal 2.5" (6.4 cm)

Product type: Barebone

Model: Barebone XPC slim XH610G2

Display (cm): 2.5 cm

Screen size diagonal (inches): 1 inch

CPU

: 0 GB

RAM type: DDR5 RAM

No. of memory slots: 2

RAM / Max. upgrade: 64 GB

Onboard graphics card: Yes

HDD capacity (total): 0 GB

Hard drive: 0 GB

Drive: w/o hard drive

Keyboard layout: Keyboard not included

No. of DisplayPort: 1 x

No. of Gigabit LANs: 2 x

No. of HDMI ports: 2 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 4 x

Interfaces: DisplayPort
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45

Factory colour: Black

Width: 25 cm

Height: 9.5 cm

Depth: 20 cm

Weight: 2.98 kg

PSU power: 180 W

Features: w/o CPU
TPM2.0 module

Operating system (Version): w/o OS

Display size: - 23 inch

Display: 2.5 cm (1 inch)

Cooling: Active

Wireless charging: Yes

Operating voltage: 1.1 V

10/100/1000 Mbps ports: 2 x

Type: External AC adapter

Power supply (details): 100 - 240 V

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

AC adapter included: yes

Ethernet LAN: yes

Number of memory slots: 2

Headphone outputs: 1

Microphone in: yes

DC-in jack: yes

Built-in speaker(s): no

NVMe: yes

Non-ECC: yes

Trusted Platform Module (TPM): yes

Quick start guide: yes

Power cord included: yes

Drivers included: yes

On/off switch: yes

Operating relative humidity (H-H): 10 - 90 %

Package weight: 3.49 kg

Built-in processor: no

Number of processors supported: 1

AC adapter output current: 9.23 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3385111 Shuttle Barebone XH610G2 2.5 cm (1 inch) XH610G2

Description

The Shuttle XPC slim XH610G2 is a versatile PC in small form factor format that can be adapted to the most diverse requirements. Thanks to the support of PCIe and SATA interfaces the user can extend his system without any problem. The system supports Dual channel DDR5 SDRAM and ensures smooth performance for multitasking and demanding applications.
With important ports such as Gigabit Ethernet and 2.5 Gigabit Ethernet for high-speed networks, the XH610G2 is equipped for efficient connectivity. Its built-in security features, including Firmware Trusted Platform Module (TPM 2.0), provide an additional layer of protection. Experience a reliable computer solution suitable for both private as well as professional use.
