Shuttle Series Cable 0 mm Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

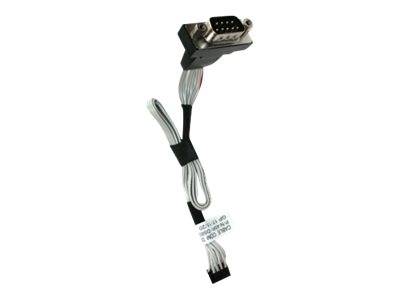

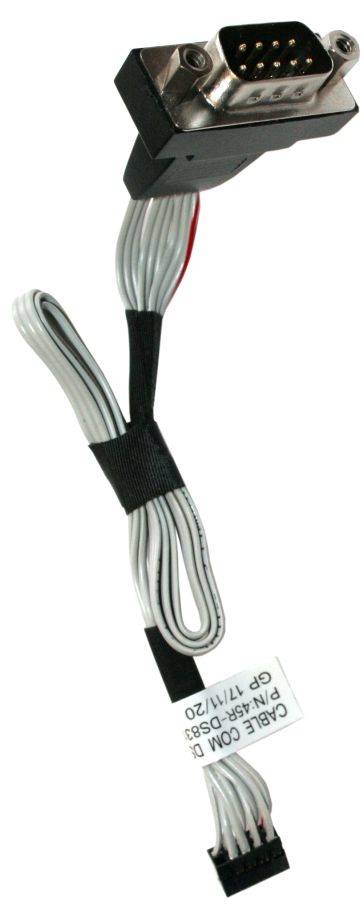

Shuttle XPC Accessory PCP11 - serial cable - 10-pin serial connector (W)
- Shuttle XPC Accessory PCP11 - cable serial - 10-pin serial connection to DB-9 - 21 cm; type: Serial cable; length: 21 cm; connection: 10-pin serial connection - female; connector (second end): D-sub (DB-9), 9-pin - male - panel mountable; developed for: XPC P52U, P52U3, POS P520; XPC SLIM DS20U3 V2, DS20U5V2, DS20U7V2, DS50U3, DS50U5, XH410G
Technical specifications
- To DB-9 (M) panel mountable - 21 cm - for XPC P52U, P52U3, POS P520; XPC slim DS20U3 V2, DS20U5V2, DS20U7v2, DS50U3, DS50U5, XH410G
- Product type
Series Cable
- Connection type
Series
- Cable length
0 mm
- Factory colour
Multicolour
- Cable use
Series
- Version
Cable
- Weight
0.10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3738949 Shuttle Series Cable 0 mm Multicolour
User & Safety Instructions
User & Safety Instructions 3738949 Shuttle Series Cable 0 mm Multicolour
Description
P20U/P51U: The Shuttle XPC all-in-one P20U/P51U series already has two COM ports ex-factory and can be upgraded with up to two additional COM ports with the help of PCP11. After the installation, a total of four COM ports (RS232) with a sub-D connection are available.
DS10U: The Shuttle XPC slim DS10U series comes standard with a COM port and a VGA port. If two COM ports are required, the existing VGA port can be removed and replaced with PCP11.
This text is machine translated.
DS10U: The Shuttle XPC slim DS10U series comes standard with a COM port and a VGA port. If two COM ports are required, the existing VGA port can be removed and replaced with PCP11.
This text is machine translated.
Features
- Shuttle XPC Accessory PCP11 - serial cable - 10-pin serial connector to DB-9 - 21 cm
- Type : cable serial
- Length : 21 cm
- Connection : 10-pin serial connector - female
- Plug (second end) : D-Sub (DB-9), 9-pin male panel mountable
- Designed for: XPC P52U, P52U3, POS P520; XPC slim DS20U3 V2, DS20U5V2, DS20U7v2, DS50U3, DS50U5, XH410G
