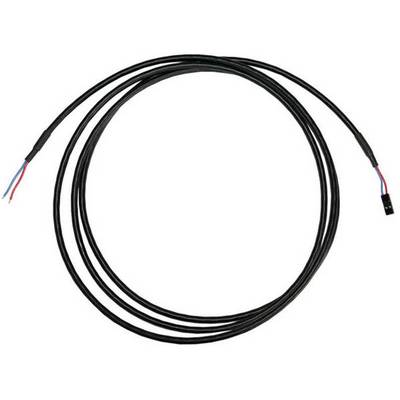

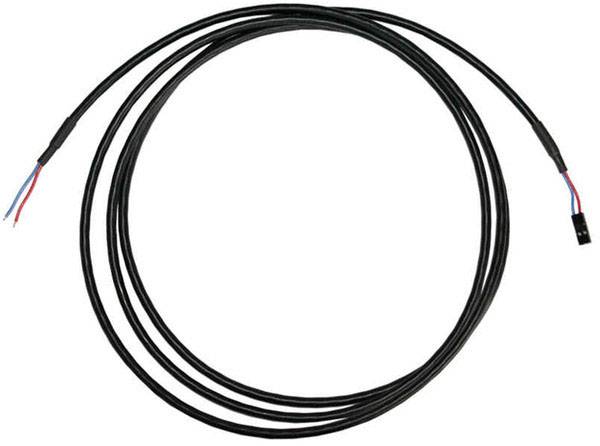

Shuttle Shuttle CXP01 - Kabel für externen Druckknopfschalter PowerButton cable Multicolour
EAN:
Part number:
Item no:
Highlights & Details
- • Cable
- Shielded cable in industrial quality
- Length: Approx. 2 meters
- Cable diameter: 6.5 mm
- Two-wire strands: 2x 0.34 mm²
- Colour: Black
- • Connection
- Two-pin pin header socket connector in 2.54 mm grid
- Two female crimp contacts, tin plated
- • required button
- The cable is pre-assembled with tin-plated connection ends for an electrical pushbutton of your choice
- The external button can be connected via screw terminals or by soldering.
- • Compatibility
- This cable can be used with the following Shuttle XPC models:
- XH310(V), XH310R(V), DS61, DS81(L), DH110(SE), DH170, DQ170, DH270, DH310(V2), DH310S, DH370, DS47, DS407(T), DS437(T), DS57UX, DS67UX, DS68U, DS77UX, DS10UX, DX30, DL10J
Technical specifications
- Product type
PowerButton cable
- Weight
0.07
- Factory colour
Multicolour
- Version
Adapter
- Wireless charging
No
Cable
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2206371 Shuttle Shuttle CXP01 - Kabel für externen Druckknopfschalter PowerButton cable Multicolour
Description
Connection cable for an external power button
Some Shuttle XPCs have a convenient connection for an external on/off button. If the PC is not directly accessible because it was installed behind a monitor or in a closed housing, it can still be switched on and off easily via an external button. Shuttle offers a 2 meter long cable with the suitable socket plugs, which only needs to be connected with an existing button.
This text is machine translated.
Some Shuttle XPCs have a convenient connection for an external on/off button. If the PC is not directly accessible because it was installed behind a monitor or in a closed housing, it can still be switched on and off easily via an external button. Shuttle offers a 2 meter long cable with the suitable socket plugs, which only needs to be connected with an existing button.
