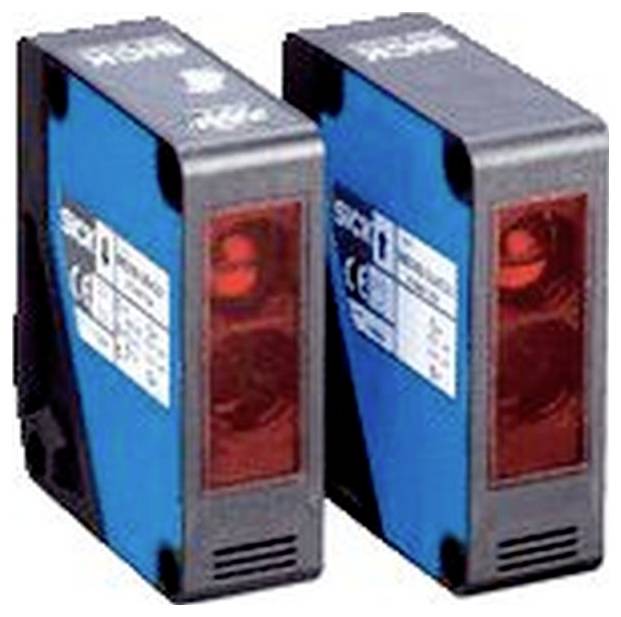

SICK One-way light barrier 6044748 6044748 Light-ON 1 pc(s)
Part number:
Item no:
Product type
One-way light barrier
Functions
Light-ON
Connector
Cable
Type
6044748
Operating voltage
24 V AC
Technical specifications
- Product type
One-way light barrier
- Type
6044748
- Functions
Light-ON
- Operating voltage
24 V AC
- Response time
15 ms
- Outputs
Relay contact
- Switching frequency
33 Hz
- Connector
Cable
- Enclosure material
Plastic
- Transmitter type
Red light, unpolarised
IP66
- Length
63 mm
- Width
23.5 mm
- Height
74.5 mm
- Dim
(L x W x H) 63 x 23.5 x 74.5 mm
- Content
1 pc(s)
- Type
Ashlar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819024 SICK One-way light barrier 6044748 6044748 Light-ON 1 pc(s)
Description
Light sensors and light barriers, W280-2, WSE280-2H1531, functional principle: One-way light barrier, switching output: Relay, Switch type: light switch, connection type: line, 5-wire, 2 m, light transmitter: LED, Adjustment: Potentiometer, communication interface: -, supplied: mounting angle BEF-W280
This text is machine translated.
This text is machine translated.
Hints
For more information on this 6044748, please refer to its datasheet under 'downloadable documents'
