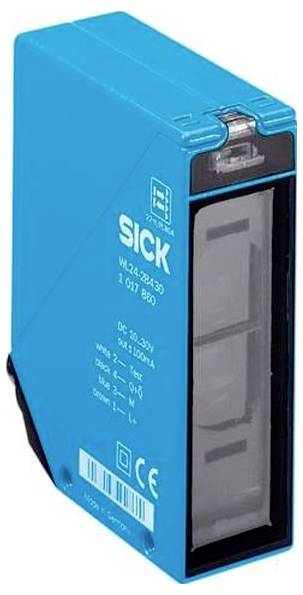

SICK Retroreflective light barrier 1017879 1017879 Light-ON, Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Dark-ON
Connector
M12 connector
Type
1017879
Operating voltage
10 V AC
Technical specifications
- Product type
Retroreflective light barrier
- Type
1017879
- Functions
Light-ON
Dark-ON
- Operating voltage
10 V AC
- Response time
0.5 ms
- Outputs
NPN
- Switching frequency
1000 Hz
- Connector
M12 connector
- Enclosure material
Metal
- Transmitter type
Red light, unpolarised
- Length
65 mm
- Width
27 mm
- Height
87.5 mm
- Dim
(L x W x H) 65 x 27 x 87.5 mm
- Content
1 pc(s)
- Type
Ashlar
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819133 SICK Retroreflective light barrier 1017879 1017879 Light-ON, Dark-ON 1 pc(s)
Description
Light sensors and light barriers, W24, WL24-2B440, principle: Reflection light barrier, detailed principle: With minimum distance to the reflector (twin lens system), switching output: NPN, PNP, switching mode: Light / dark switching, connection type: M12 plug, 4-pole, light transmitter: LED, setting: potentiometer, communication interface: -
This text is machine translated.
This text is machine translated.
Hints
For more information on this 1017879, please refer to its datasheet under 'downloadable documents'
