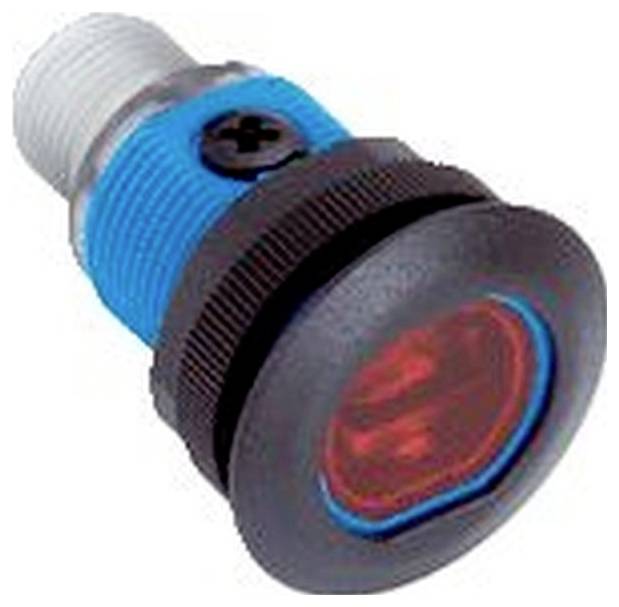

SICK Retroreflective light barrier 1059533 1059533 Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Dark-ON
Max. operating voltage
30 V DC
Connector
M12 connector
Type
1059533
Technical specifications
- Product type
Retroreflective light barrier
- Type
1059533
- Functions
Dark-ON
- Operating voltage
10 V AC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
0.500 ms
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M12 connector
- Enclosure material
Plastic
- Transmitter type
Red light, unpolarised
- Wavelength
650 nm
IP67
- Min. temperature
-25 °C
- Max. temperature
55 °C
- Length
38.1 mm
- Width
18 mm
- Height
18 mm
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 18 mm
- Content
1 pc(s)
- Type
Cylinder, thread
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819338 SICK Retroreflective light barrier 1059533 1059533 Dark-ON 1 pc(s)
Description
Light sensors and light barriers, GR18, GRL18S-F2336, principle of operation: Retro-reflective sensor, detailed principle: With minimum distance to reflector (double lens system), switching output: PNP, switching type: Dark switching, connection type: M12 plug, 3-pin, Light transmitter: PinPoint LED, adjustment: None, communication interface: -, supplied with: fastening nut (2 x)
This text is machine translated.
This text is machine translated.
Hints
For more information on this 1059533, please refer to its datasheet under 'downloadable documents'
