Name: SICK Retroreflective light barrier WL24-2B430 1017860 Light-ON, Dark-ON 1 pc(s)
Brand: SICK
SKU: 3819132

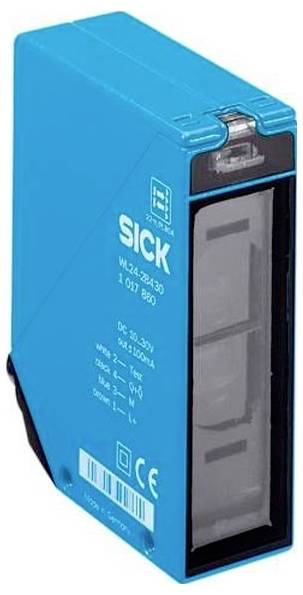

Blue SICK industrial sensor or scanner device with a black front window and printed model text on the side.

Product type

Retroreflective light barrier

Functions

Light-ON

Dark-ON

Connector

M12 connector

Type

WL24-2B430

Operating voltage

10 V AC

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: WL24-2B430

Functions: Light-ON
Dark-ON

Operating voltage: 10 V AC

Response time: 0.5 ms

Outputs: NPN

Switching frequency: 1000 Hz

Connector: M12 connector

Enclosure material: Metal

Transmitter type: Red light, unpolarised

Length: 65 mm

Width: 27 mm

Height: 87.5 mm

Dim: (L x W x H) 65 x 27 x 87.5 mm

Content: 1 pc(s)

Type: Ashlar

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3819132 SICK Retroreflective light barrier WL24-2B430 1017860 Light-ON, Dark-ON 1 pc(s)

Description

Light sensors and light barriers, W24, WL24-2B430, function principle: Reflection light barrier, principle detail: With minimum distance to the reflector (double lens system), switching output: NPN, PNP, switching mode: Light / dark switching, connection type: M12 plug, 4-pole, light transmitter: LED, setting: potentiometer, communication interface: -

This text is machine translated.
