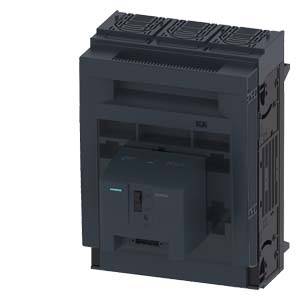

Siemens 3NP11531JC21 Switch disconnector fuse 3-pin 400 A 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch disconnector fuse
Number of pins
3
Nominal current - rounded value
400 A
Type
Masking Level 32/70 mm
RoHS-compliant
Yes
Datasheet (PDF)
Number
Total (€ 516.81 / piece)
€ 516.81
plus VAT.
Technical specifications
- Protection class IP20, IP30, IP40
- Surge voltage resistance: 8 kV
- Ambient temperature: -25 °C to +55 °C
- Isolation voltage: 1000 V
- Mechanical life: 1000
- Mounting type: Busbar
- Design of the electrical connection: frame clamp
- Power loss: 144 W
- Type
Masking Level 32/70 mm
- Product type
Switch disconnector fuse
- Number of pins
3
- RoHS-compliant
Yes

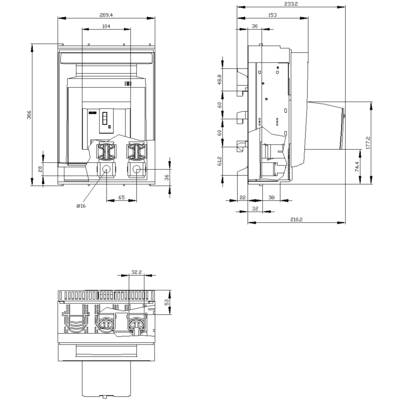

- Dim
(W x H x D) 209.4 x 306 x 231 mm
- Content
1 pc(s)
- Nominal current
400 A
- Nominal current - rounded value
400 A
- Nominal voltage
690 V AC
- Width
209.4 mm
- Height
306 mm
- Depth
231 mm
Other
400 A
3
80 kA
IP40
NH1, NH2
FALSE
Frame clamp
FALSE
Cover grip
FALSE
TRUE
FALSE
FALSE
TRUE
690 V
TRUE
FALSE
Front side
Documents & Downloads
Datasheet
Datasheet 1742705 Siemens 3NP11531JC21 Switch disconnector fuse 3-pin 400 A 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1742705 Siemens 3NP11531JC21 Switch disconnector fuse 3-pin 400 A 690 V AC 1 pc(s)
Description
circuit-breaker VL 160L very high breaking capacity Icu=100kA / 415 V AC 3 pole, motor/ generator protection electronic trip unit ETU10M, LI In=160A, rated current ir=64-160A, overload iI=1,25to11xin, short circuit without auxiliary release ETU communication-capable without auxiliary/alarm switch
