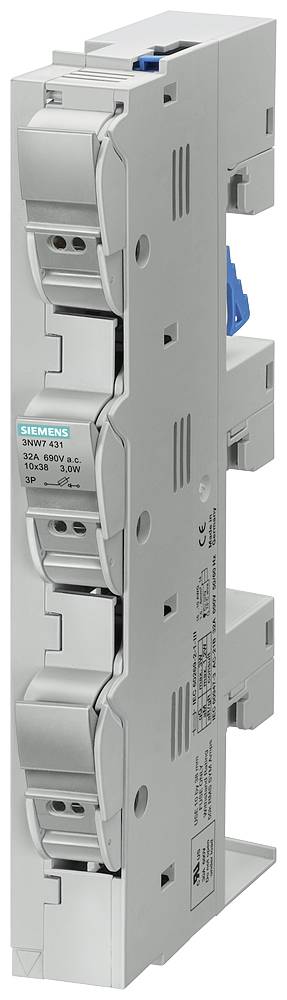

Siemens 3NW7431 3NW7431 Torpedo fuse holder incl. indicator Suitable for Micro fuse 10.3 x 38 mm 32 A 690 V AC 1 pc(s) P
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Torpedo fuse holder
Nominal voltage
690 V AC
Nominal current - rounded value
32 A
Mounting type
Busbar
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
14-day return policy included
Highlights & Details
3LD switch disconnector, emergency stop switch, 6-pole, 250 A, operating power ...
Our service for you
Technical specifications
- Number of pins: 3
- Size of the fuse link: 10 x 38 mm
- Installation depth: 79 mm
- Number of broad division units: 1.5
- Packaging type
Piece
- Product type
Torpedo fuse holder
- Features
incl. indicator
- Nominal voltage
690 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Mounting type
Busbar
IP20
- Suitable for
Micro fuse 10.3 x 38 mm
- Number of fuses
3
- Type
For 8US busbar system 60 mm
- Length
79 mm
- Width
27 mm
- Height
200 mm
- Dimensions
79 mm
- Content
1 pc(s)
- Dim
(L x W x H) 79 x 27 x 200 mm
- RoHS-compliant
Yes
- Type
3NW7431
690 V
Busbar system
FALSE
79 mm
3
1.5
IP20
FALSE
FALSE
10x38 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1702373 Siemens 3NW7431 3NW7431 Torpedo fuse holder incl. indicator Suitable for Micro fuse 10.3 x 38 mm 32 A 690 V AC 1 pc(s) P
Datasheet 1702373 Siemens 3NW7431 3NW7431 Torpedo fuse holder incl. indicator Suitable for Micro fuse 10.3 x 38 mm 32 A 690 V AC 1 pc(s) P
User & Safety Instructions
User & Safety Instructions 1702373 Siemens 3NW7431 3NW7431 Torpedo fuse holder incl. indicator Suitable for Micro fuse 10.3 x 38 mm 32 A 690 V AC 1 pc(s) P
Description
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 6- pole, Iu=250 A, operating power / at AC-23 A 400 V: 132 kW, front-mounted, knob-operated mechanism, red/yellow, 4-hole mounting of the handle The 3LD main and emergency switching-off switch as a maintenance switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD have proven themselves in many fields, particularly in processing machines in mechanical and conveyor system engineering, and in the chemical sector and food and beverage industries. Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile and global applications possible thanks to international IEC, UL and marine approvals. 3. Degree of protection IP65 with encapsulated housing for outdoor applications. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 250 A with lockable rotary operating mechanism. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
