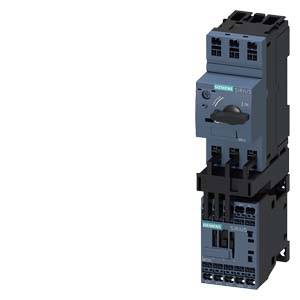

Siemens 3RA2110-1KE17-1AP0 3RA21101KE171AP0 Feeder terminal Motor power at 400 V 5.5 kW 690 V Nominal current 11.5 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
Technical specifications
- Protection class: IP20
- Design of the electrical connection: Spring-loaded connection
- Size of the load feeder: S00
- Operating frequency: 50/60 Hz
- Product type
Feeder terminal
- Motor power at 400 V
5.5 kW
- Nominal voltage
690 V
- Type
Mounting type: screw and snap-on mounting rail 35 mm
- Manufacturer part #
3RA21101KE171AP0
- Nominal current
11.5 A
- Nominal current - rounded value
11.5 A
- Type
3RA2110-1KE17-1AP0

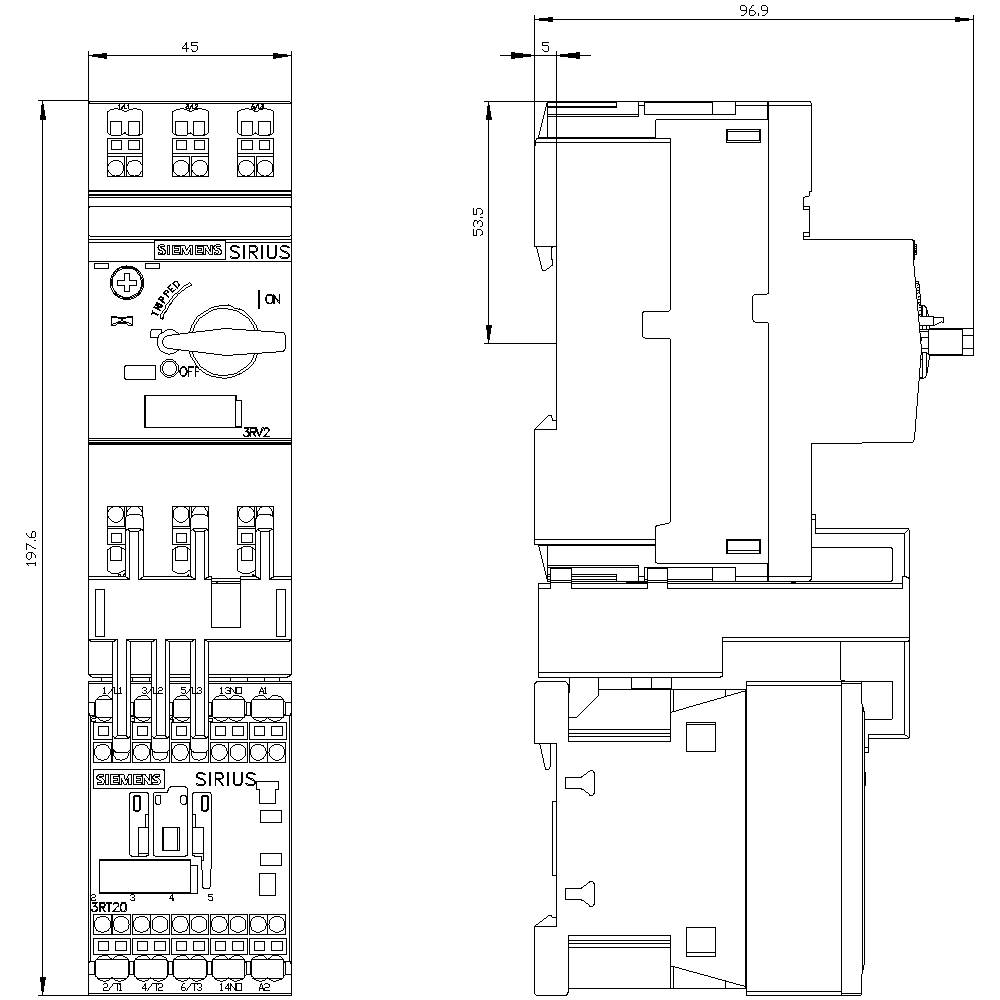

- Dim
(W x H x D) 45 x 198 x 97 mm
- Width
45 mm
- Height
198 mm
- Depth
97 mm
- Max. temperature
+60 °C
- Min. temperature
-20 °C
45
198 mm
97 mm
FALSE
5.5 kW
1
12 A
0
IP20
CLASS 10
TRUE
FALSE
Spring clamp connection
Spring clamp connection
AC
Other
12 A
60 °C
65000
30000
Other
Class 1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1744660 Siemens 3RA2110-1KE17-1AP0 3RA21101KE171AP0 Feeder terminal Motor power at 400 V 5.5 kW 690 V Nominal current 11.5 A
User & Safety Instructions
User & Safety Instructions 1744660 Siemens 3RA2110-1KE17-1AP0 3RA21101KE171AP0 Feeder terminal Motor power at 400 V 5.5 kW 690 V Nominal current 11.5 A
Description
Load feeder fuseless, Direct-on-line starting 400 V AC, Size S0 3.50...5.00 A 230 V AC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO+1 NC (contactor)
