Buy Siemens 3RA2120-4CA27-0BB4 3RA21204CA270BB4 Feeder terminal Motor power at 400 V 11 kW 690 V Nominal current 22 A

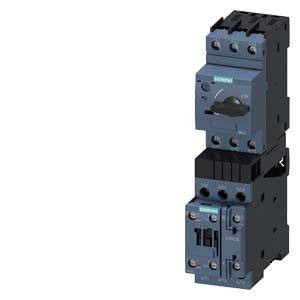

An electrical contactor with multiple circuits and terminals, mounted on a black mounting bracket, against a white background.

Image similar

A switchboard with exposed cables and switches stands beside a window. Outside, blurred industrial equipment is visible through raindrops.

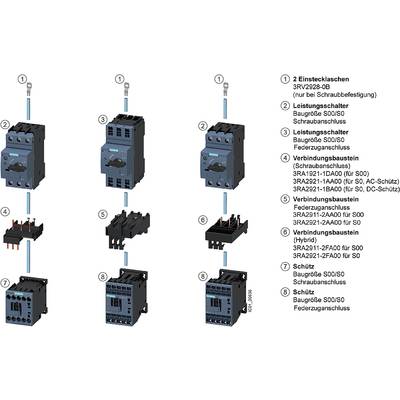

'Representation of circuit breakers with numbering and labelling; components and connection details for electrical circuits.'

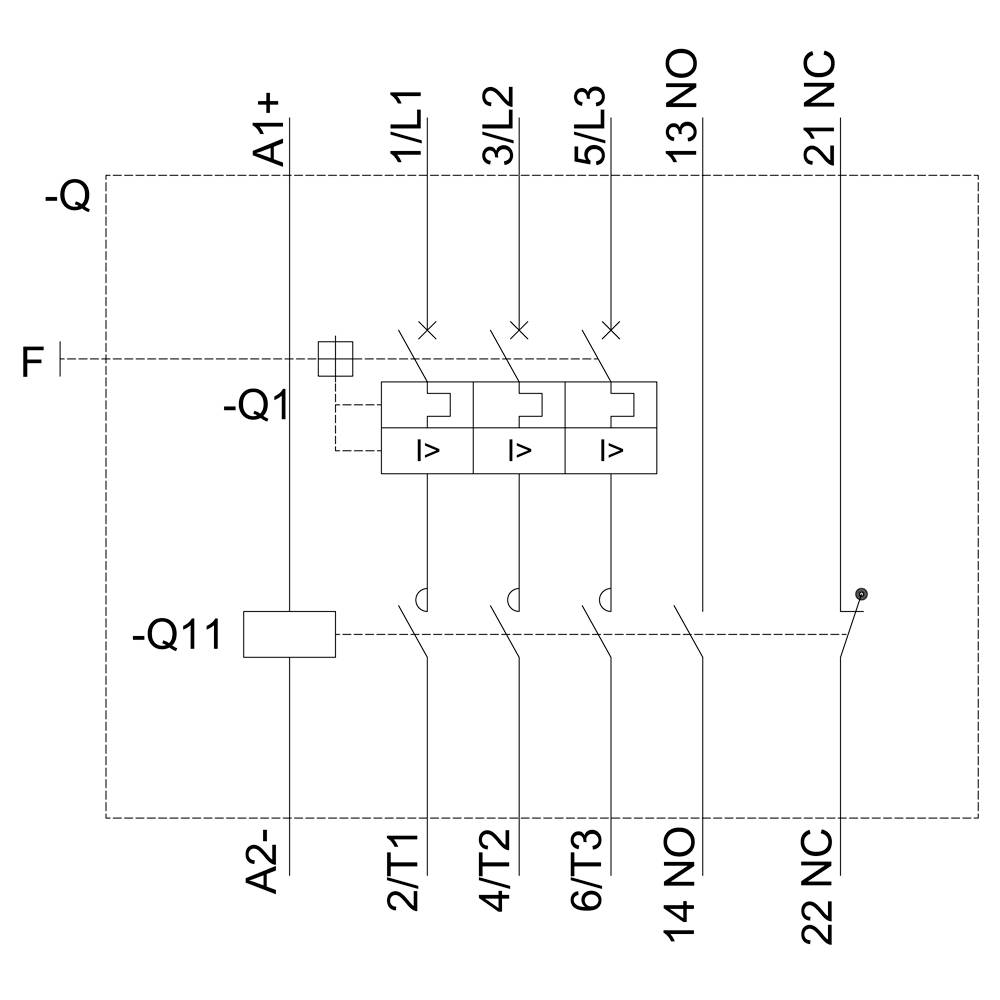

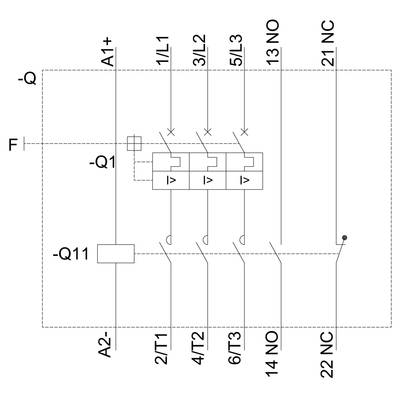

'Circuit diagram of an electrical switchboard with relay symbols and connection lines. Main components: A1+, 1/L1, 3/L2, 5/L3, 13 NO, 21 NC.'

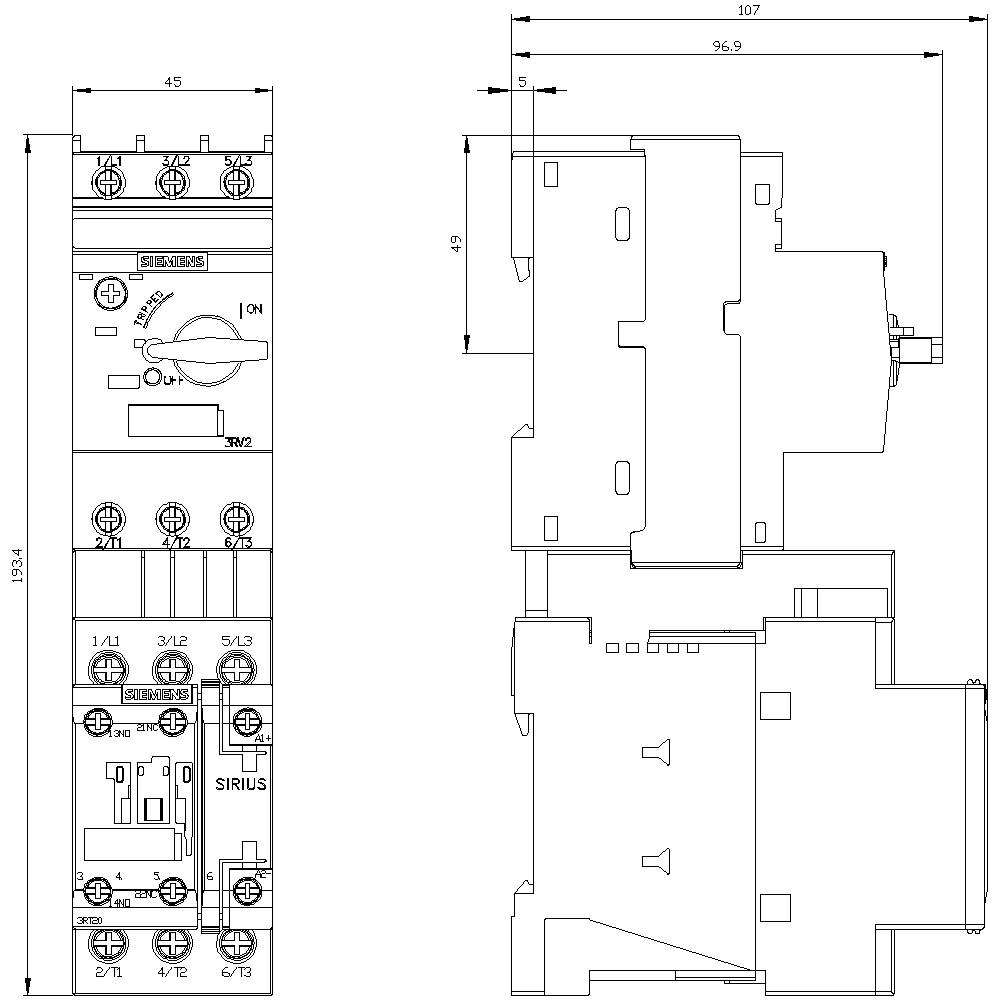

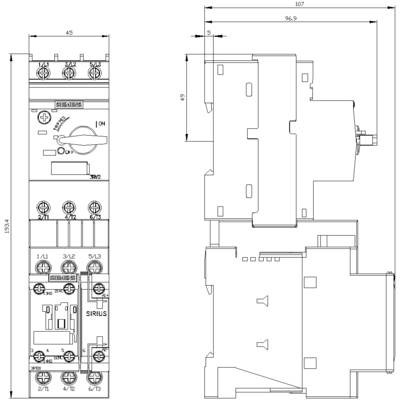

Technical drawing of an electrical switching device with various components and dimensions.

1/6

Image similar

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 352.10 / piece)

€

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S0
Operating frequency: 50/60 Hz

Product type: Feeder terminal

Motor power at 400 V: 11 kW

Nominal voltage: 690 V

Type: Mounting type: screw and snap-on mounting rail 35 mm

Manufacturer part #: 3RA21204CA270BB4

Nominal current: 22 A

Nominal current - rounded value: 22 A

Type: 3RA2120-4CA27-0BB4

Dim: (W x H x D) 45 x 193 x 107 mm

Width: 45 mm

Height: 193 mm

Depth: 107 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 45

: 193 mm

: 107 mm

: FALSE

: 11 kW

: 1

: 22 A

: 0

: 16-22 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: 24-24 V

: IP20

: FALSE

: FALSE

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: DC

: Other

: 22 A

: 60 °C

: 150000

: 150000

: 65000

: Other

: Class 2

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1732564 Siemens 3RA2120-4CA27-0BB4 3RA21204CA270BB4 Feeder terminal Motor power at 400 V 11 kW 690 V Nominal current 22 A

User & Safety Instructions

User & Safety Instructions 1732564 Siemens 3RA2120-4CA27-0BB4 3RA21204CA270BB4 Feeder terminal Motor power at 400 V 11 kW 690 V Nominal current 22 A

Description

Reversing contactor assembly AC-3, 7.5 kW/400 V,48 V AC, 50/60 Hz 3-pole, Size S00 Spring-type terminal Electrical and mechanical interlock
