Buy Siemens 3RA2210-1HA15-2BB4 3RA22101HA152BB4 Feeder terminal Motor power at 400 V 3 kW 690 V Nominal current 6.5 A

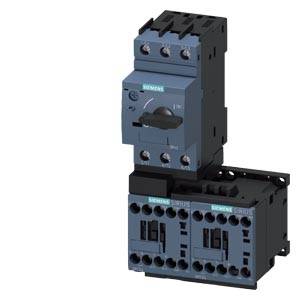

A Siemens electrical circuit breaker mounted on a base. Upper unit with toggle switch, lower with wiring points.

Image similar

An open electrical cabinet filled with electronic components; in the background, blurred machinery can be seen through a rain-streaked window.

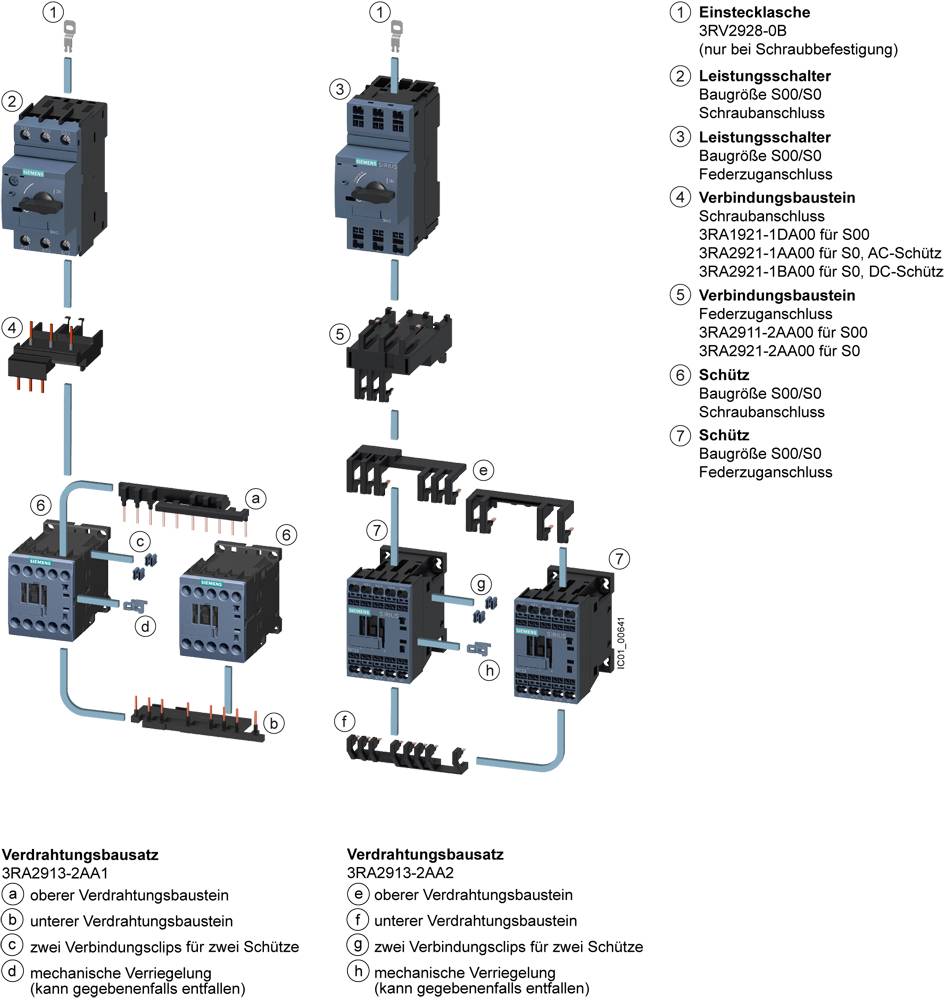

Circuit diagram shows wiring configurations with power switches and contactors for different configurations, including screw and spring connection options.

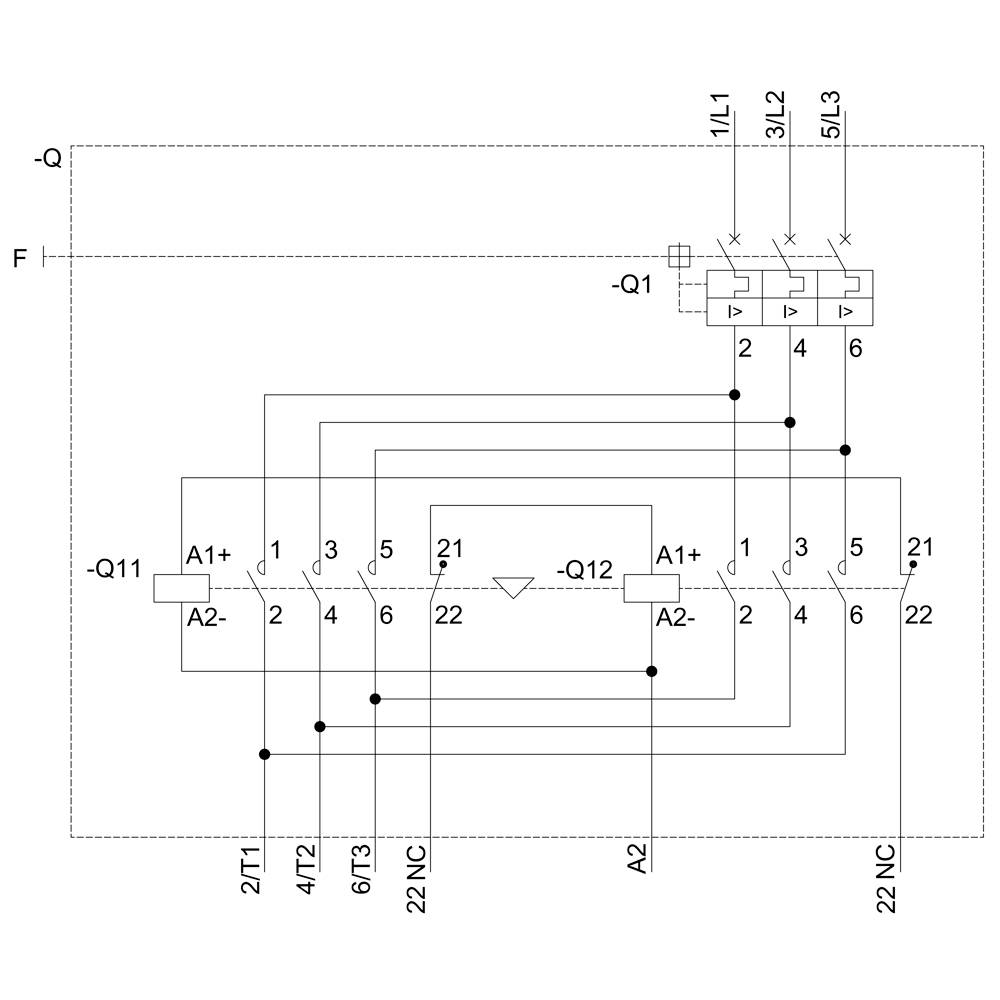

Circuit diagram shows an electrical control system, consisting of relays and contacts. Connections and numbering are visible.

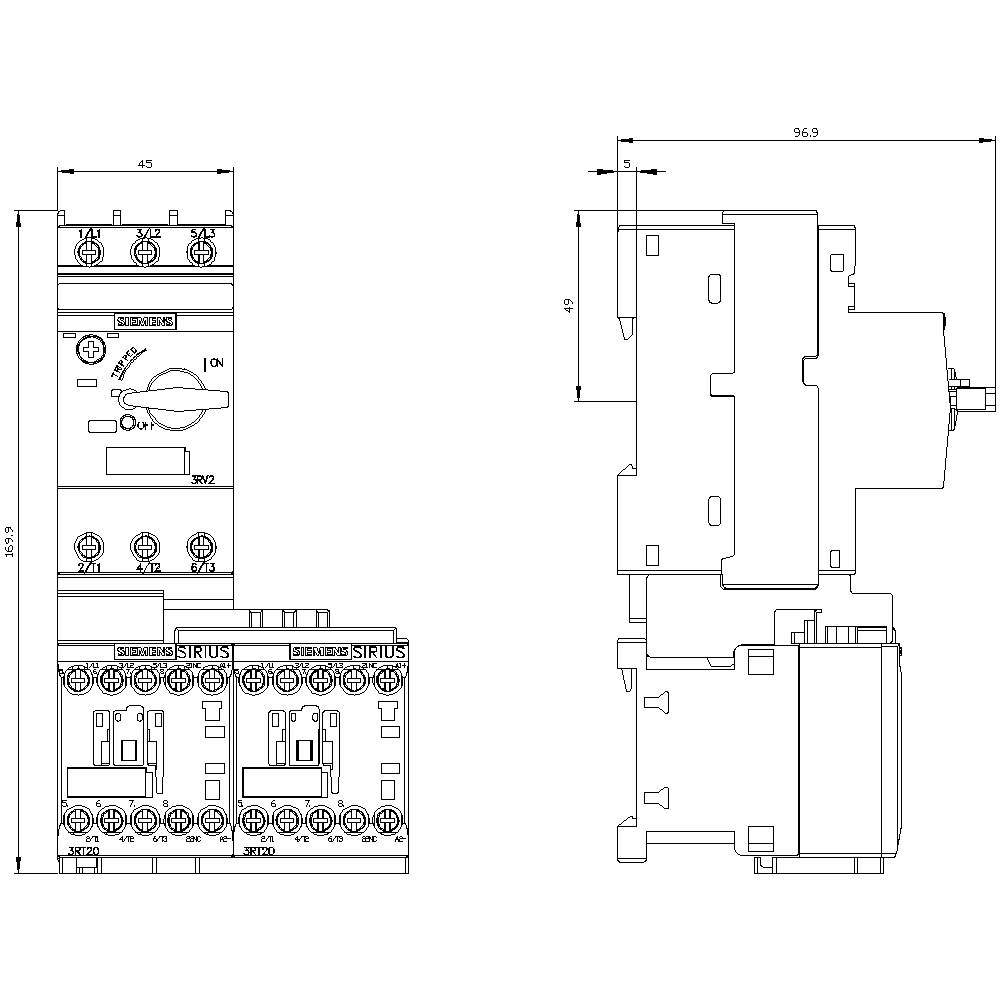

Technical drawing of an electrical switching device with dimensions. Shows front and side view for mounting and connection purposes.

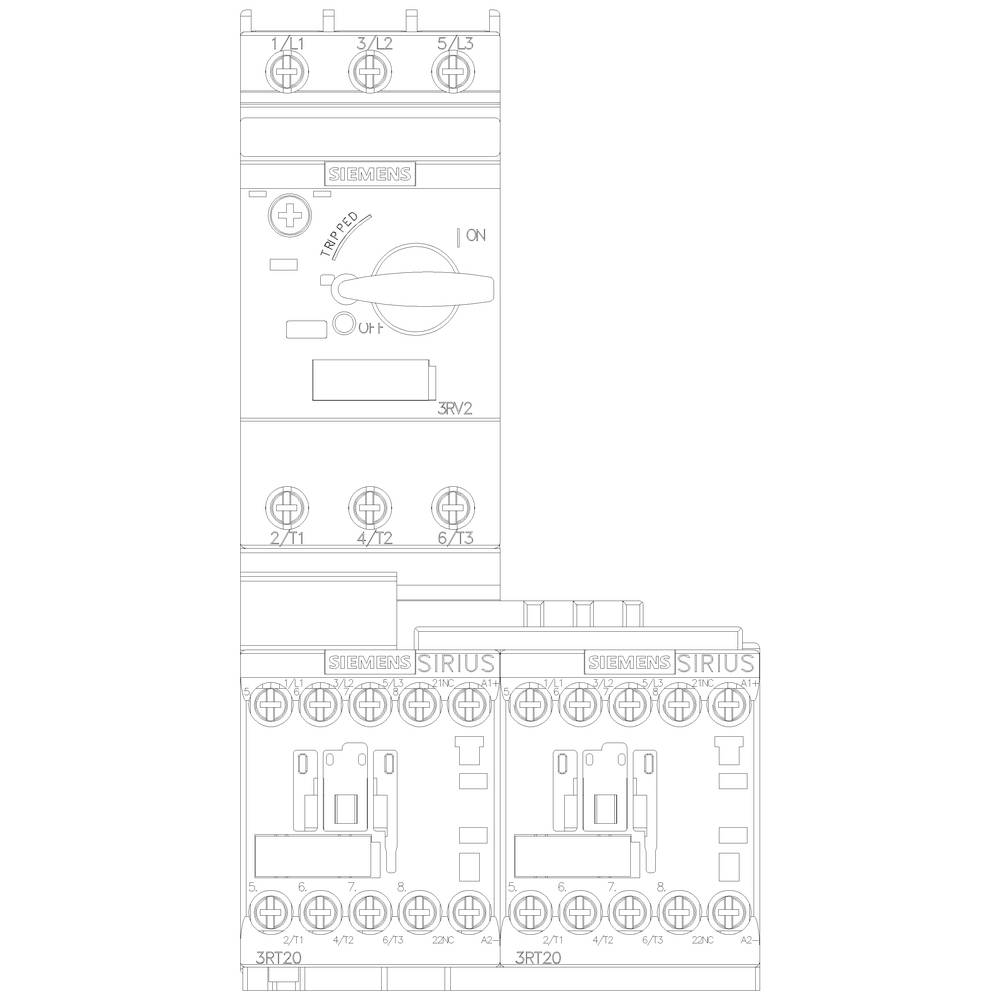

A diagram of an electrical switching device, with a main switch at the top and two subordinate switches at the bottom. System identification is 'SIRIUS'.

1/6

Image similar

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 193.27

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S00
Operating frequency: 50/60 Hz

Product type: Feeder terminal

Motor power at 400 V: 3 kW

Nominal voltage: 690 V

Type: Mounting type: screw and snap-on mounting rail 35 mm

Manufacturer part #: 3RA22101HA152BB4

Nominal current: 6.5 A

Nominal current - rounded value: 6.5 A

Type: 3RA2210-1HA15-2BB4

Dim: (W x H x D) 90 x 170 x 97 mm

Width: 90 mm

Height: 170 mm

Depth: 97 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 90

: 170 mm

: 97 mm

: FALSE

: 3 kW

: 1

: 7 A

: 0

: 5.5-8 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: 24-24 V

: IP20

: FALSE

: FALSE

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: DC

: Other

: 7 A

: 60 °C

: 65000

: 30000

: Other

: Class 1

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1743562 Siemens 3RA2210-1HA15-2BB4 3RA22101HA152BB4 Feeder terminal Motor power at 400 V 3 kW 690 V Nominal current 6.5 A

User & Safety Instructions

User & Safety Instructions 1743562 Siemens 3RA2210-1HA15-2BB4 3RA22101HA152BB4 Feeder terminal Motor power at 400 V 3 kW 690 V Nominal current 6.5 A

Description

Reversing contactor assembly for 3RA27 AC-3, 5.5 kW/400 V, 24 V DC 3-pole, Size S0 Spring-type terminal electrical and mechanical interlock 2 NO integrated, with voltage tap
