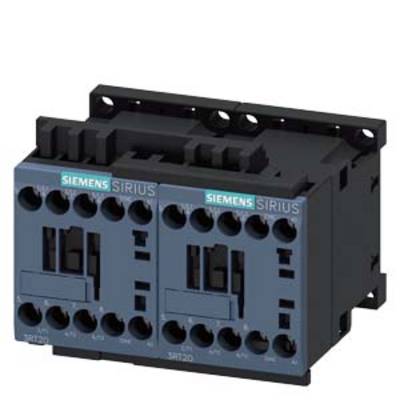

Siemens 3RA2315-8XB30-1AB0 Reversing contactor combo 3 makers 690 V AC 6.1 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor combo
No. of pins
3-pin
Nominal voltage
690 V AC
Current load
6.1 A
Connection
Screws
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 151.25 / piece)
€
Technical specifications
- Type of voltage: AC
- Conductor cross-section single or multi-wire: 4 mm²
- Conductor cross-section for fine-wire: 2.5 mm²
- Product type
Reversing contactor combo
- Type
3RA2315-8XB30-1AB0
- Type
S00
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
690 V AC
- Control voltage (max.)
24 V AC
- Control voltage range
24 V AC (max)
- Current load
6.1 A
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C

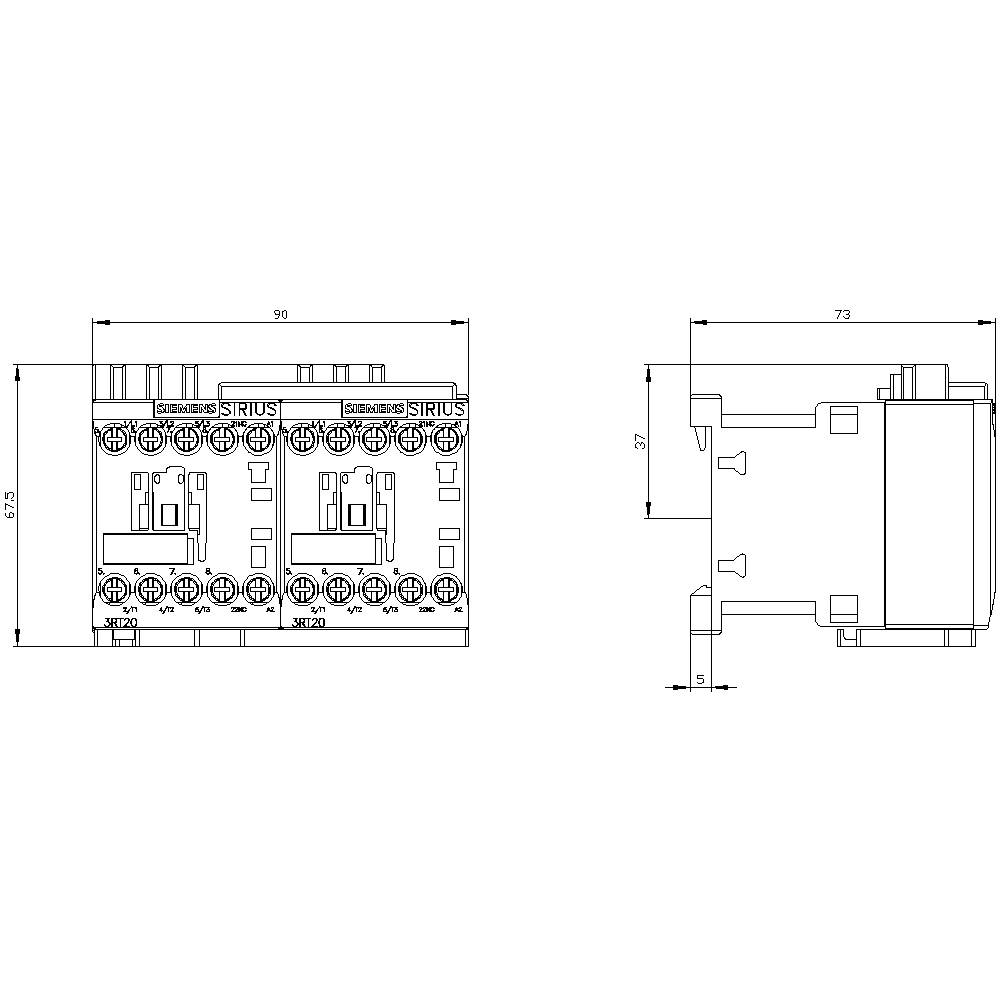

- Width
90 mm
- Height
68 mm
- Depth
73 mm
- Dim
(W x H x D) 90 x 68 x 73 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Reversing contactor
3 kW
3
0
7 A
24-24 V
24-24 V
IP20
Screw connection
AC
Other
2.206
Documents & Downloads
Datasheet
Datasheet 1744500 Siemens 3RA2315-8XB30-1AB0 Reversing contactor combo 3 makers 690 V AC 6.1 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1744500 Siemens 3RA2315-8XB30-1AB0 Reversing contactor combo 3 makers 690 V AC 6.1 A 1 pc(s)
Description

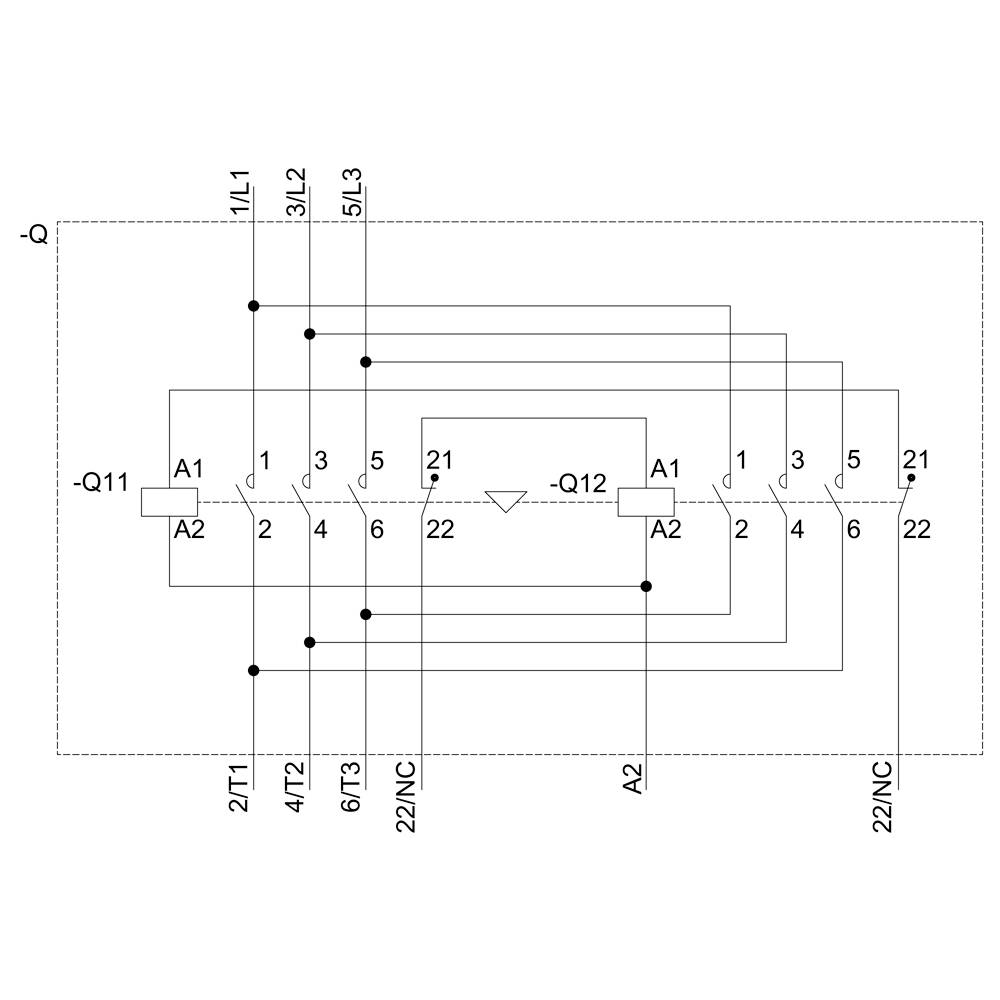

Reversing contactor assembly AC-3,3 kW/400 V,AC230V,50/60 Hz 3-pole, Size S00 Spring-type terminal electrical and mechanical interlock
