Siemens 3RA2316-8XB30-1BB4 Reversing contactor combo 3 makers 690 V AC 9 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor combo
No. of pins
3-pin
Nominal voltage
690 V AC
Current load
9 A
Connection
Screws
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Type of voltage: DC
- Conductor cross-section single or multi-wire: 4 mm²
- Conductor cross-section for fine-wire: 2.5 mm²
- Product type
Reversing contactor combo
- Type
3RA2316-8XB30-1BB4
- Type
S00
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
690 V AC
- Current load
9 A
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C

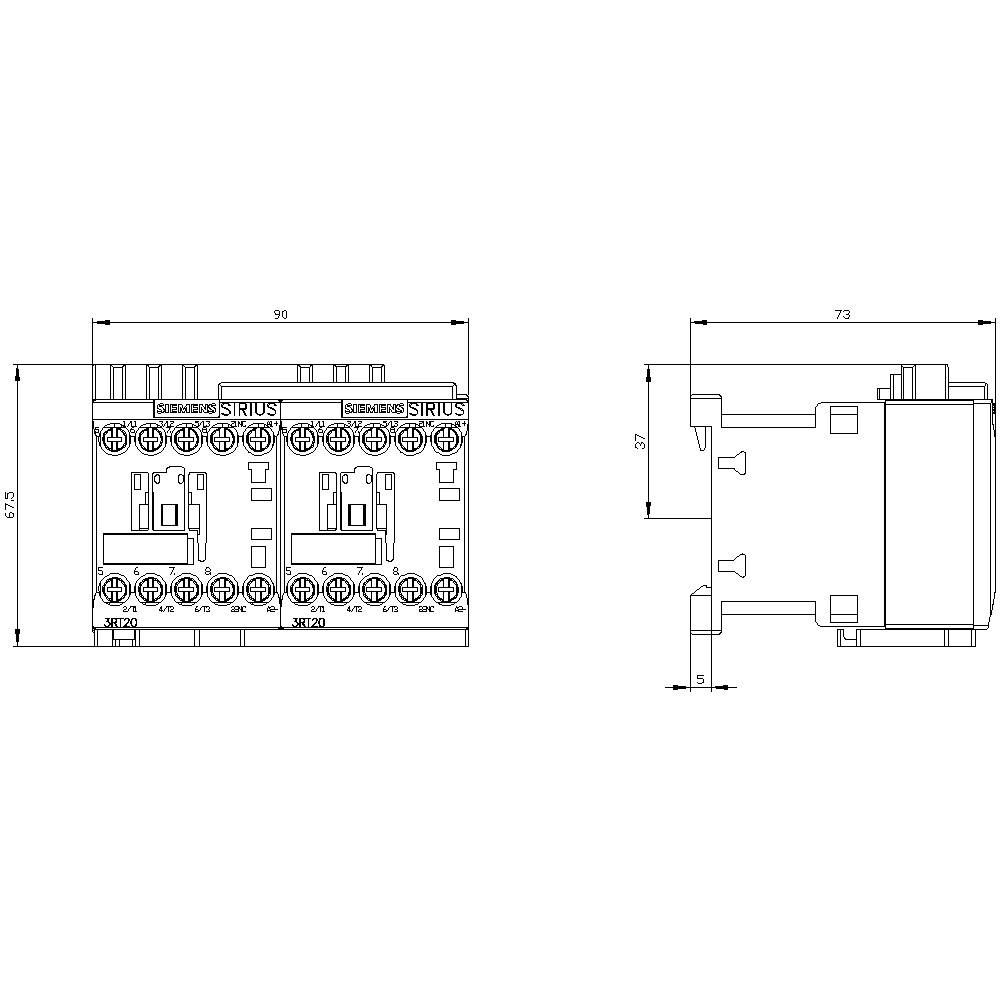

- Width
90 mm
- Height
68 mm
- Depth
73 mm
- Dim
(W x H x D) 90 x 68 x 73 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Reversing contactor
4 kW
3
0
9 A
24-24 V
IP20
Screw connection
DC
Other
3.677
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1744512 Siemens 3RA2316-8XB30-1BB4 Reversing contactor combo 3 makers 690 V AC 9 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1744512 Siemens 3RA2316-8XB30-1BB4 Reversing contactor combo 3 makers 690 V AC 9 A 1 pc(s)
Description
Contactor relay, 4 NO, 110 V AC, 50 / 60 Hz, Size S00, screw terminal
