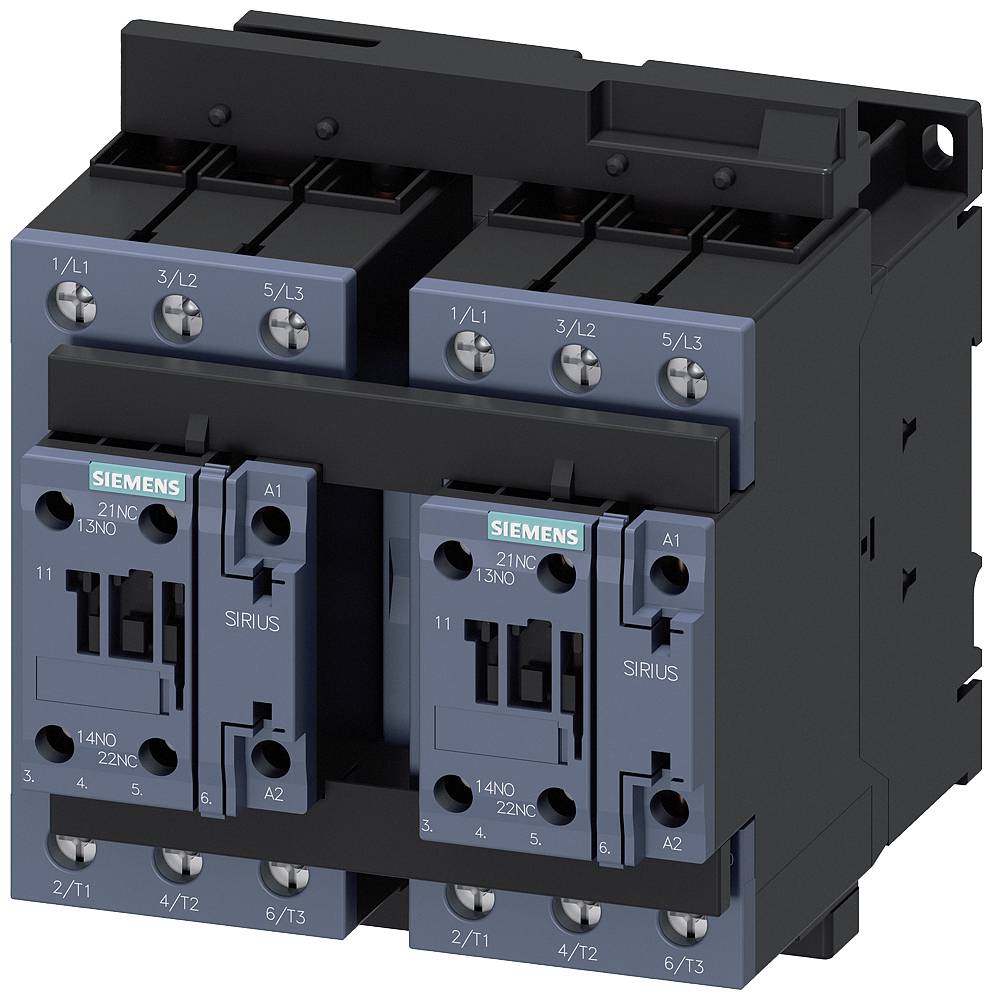

Siemens 3RA2335-8XB30-1KB4 Reversing contactor combo 18.5 kW + varistor Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor combo
No. of pins
3-pin
Power
18.5 kW
Packaging type
Piece
Type
3RA2335-8XB30-1KB4
Datasheet (PDF)
Highlights & Details
Reversing combination AC-3, 18.5 kW/400 V, DC 24 V, 0.7-1.25 us, 3-pin, S2
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Reversing contactor combo
- Type
3RA2335-8XB30-1KB4
- Type
S00
- No. of pins
3-pin
- Auxiliary contact type
2 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
41 A
18.5 kW
- Features
+ varistor
- Mounting type
DIN rail
- Content
1 pc(s)
- RoHS-compliant
Yes
18.5 kW
3
0
41 A
IP20
Screw connection
DC
Other
22.0649625
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2871511 Siemens 3RA2335-8XB30-1KB4 Reversing contactor combo 18.5 kW + varistor Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2871511 Siemens 3RA2335-8XB30-1KB4 Reversing contactor combo 18.5 kW + varistor Piece 1 pc(s)
Description
Reversing combination, AC-3e/AC-3, 41 A, 18.5 kW / 400 V, 3-pole, 24 V DC, 0.7-1.25* US, with varistor attached, Screw connection, electrical and mechanical locking, auxiliary contacts: 2 x 1 S reversible combination SIRIUS 3RA23 for switching motors incl. change of rotation direction.
The 3RA23 reversing combination is a tested and factory-assembled combination of two 3RT2 contactors of the same power, which are already wired and mechanically and electrically locked. They are climate-proof, globally approved (e.g. IEC and UL/CSA) and IE3/IE4 ready.
The 3RA23 reversing combinations are available with AC and DC actuation in sizes S00 to S3. They are offered in screw and spring-type connection technology for mounting on DIN rail or screw mounting.
The accessories of the 3RT2 contactors are uniform for all sizes and can also be used for the contactor combinations.
The 3RA23 reversible combinations replace the tried-and-tested 3RA13 series.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
The 3RA23 reversing combination is a tested and factory-assembled combination of two 3RT2 contactors of the same power, which are already wired and mechanically and electrically locked. They are climate-proof, globally approved (e.g. IEC and UL/CSA) and IE3/IE4 ready.
The 3RA23 reversing combinations are available with AC and DC actuation in sizes S00 to S3. They are offered in screw and spring-type connection technology for mounting on DIN rail or screw mounting.
The accessories of the 3RT2 contactors are uniform for all sizes and can also be used for the contactor combinations.
The 3RA23 reversible combinations replace the tried-and-tested 3RA13 series.
Simple, efficient, always up-to-date - the SIRIUS modular system.
