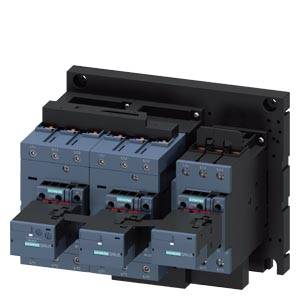

Siemens 3RA2446-8XF32-1AG2 Star-delta combo 3 makers 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Star-delta combo
No. of pins
3-pin
Nominal voltage
690 V AC
Connection
Screws
Type
3RA2446-8XF32-1AG2
Datasheet (PDF)
Number
Total (€ 1,158.82 / piece)
€ 1,158.82
plus VAT.
14-day return policy included
Highlights & Details
SENTRON, fuse holder, class J, 3-pole, In: 100 A, Un AC: 600 V, for ...
Our service for you
Technical specifications
- Type of voltage: AC
- Conductor cross-section single or multi-strand: 70 mm²
- Conductor cross-section for finely-stranded: 50 mm²
- Product type
Star-delta combo
- Type
3RA2446-8XF32-1AG2
- Type
S3
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
690 V AC
- Control voltage (max.)
110 V AC
- Control voltage range
110 V AC (max)
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
220 mm
- Height
180 mm
- Depth
244 mm

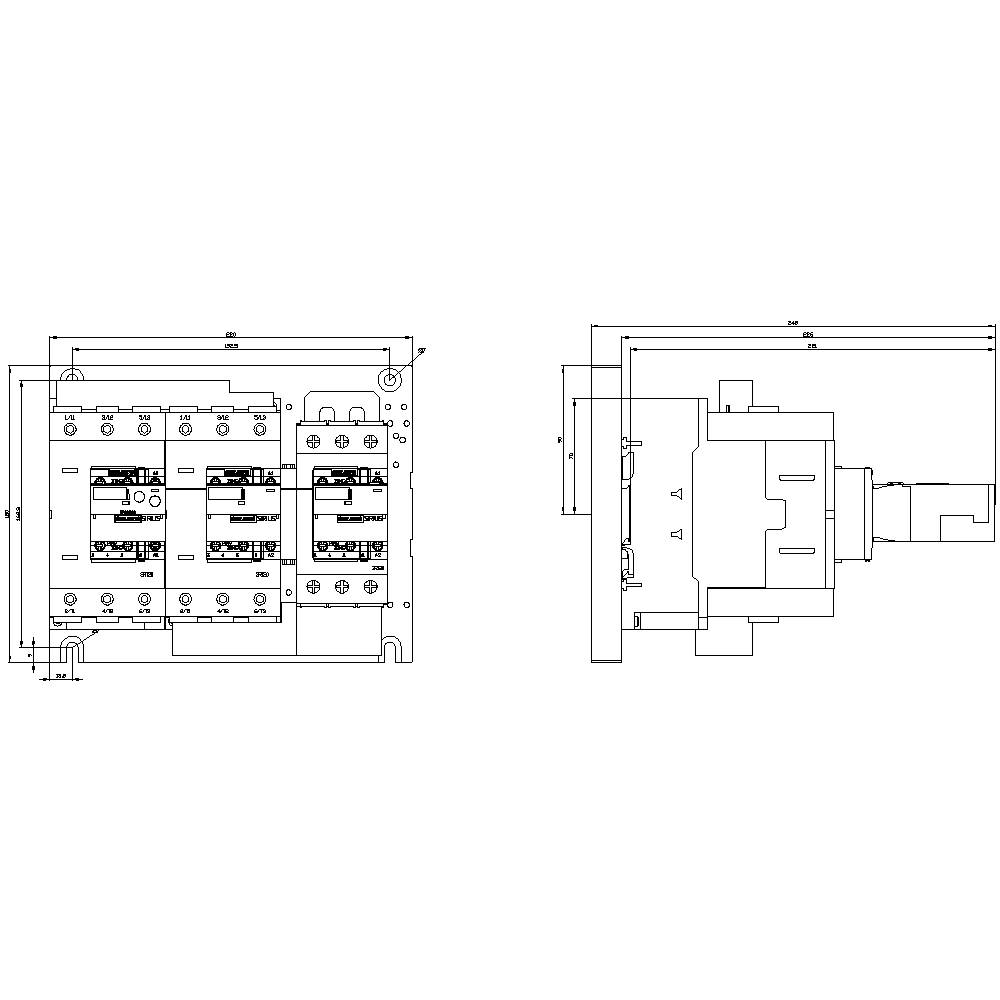

- Dim
(W x H x D) 220 x 180 x 244 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Star-delta contactor
90 kW
3
0
160 A
IP20
Screw connection
AC
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1741299 Siemens 3RA2446-8XF32-1AG2 Star-delta combo 3 makers 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1741299 Siemens 3RA2446-8XF32-1AG2 Star-delta combo 3 makers 690 V AC 1 pc(s)
Description
SENTRON, fuse holder, Class J, 3-pole, In: 100 A, Un AC: 600 V, for busbar system 8US 60 mm, Use within the European economic area, Turkey, Switzerland only as part of a tested, CE-compliant plant. UL fuse systems class CC and class J. As an important component of the SENTRON protective components for electronic installations, the 3NW fuse system from Siemens provides effective protection for personnel, equipment and plants with reliable shutdown in the event of an overload or short-circuit. Class CC fuses are used for branch circuit protection applications. Class J fuse links are used for branch circuit protection and in the feeder circuit. Key features of the Siemens NW fuses: 1. Easier export thanks to UL and CSA approvals for typical applications on the North American market. 2. Modern design with touch protection ensures safe installation. 3. Dead-state fuse replacement in fuse holders possible www.siemens.com/fuses. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution boards as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
