Buy Siemens 3RA2711-1AA00 Function module Compatible with (relay brand): Siemens 1 pc(s)

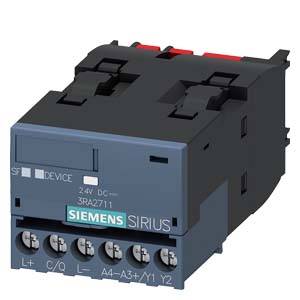

A Siemens Sirius electrical contactor, model 3RA2711, for switching applications; showing connections and technical details.

Image similar

An open electrical cabinet with multiple rows of electrical components and cable connections, neatly organised.

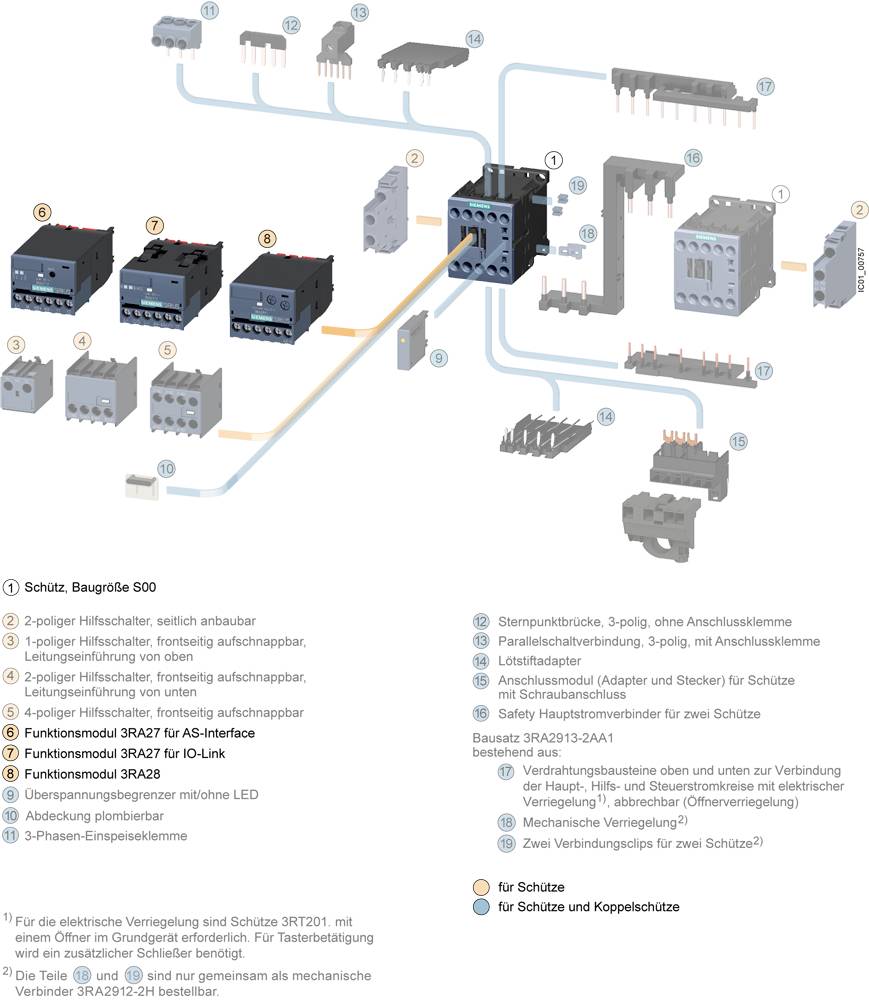

Diagram shows switchgear enclosures with connection possibilities. Focus on switching device 3RA27, surrounded by contactor and auxiliary switch modules.

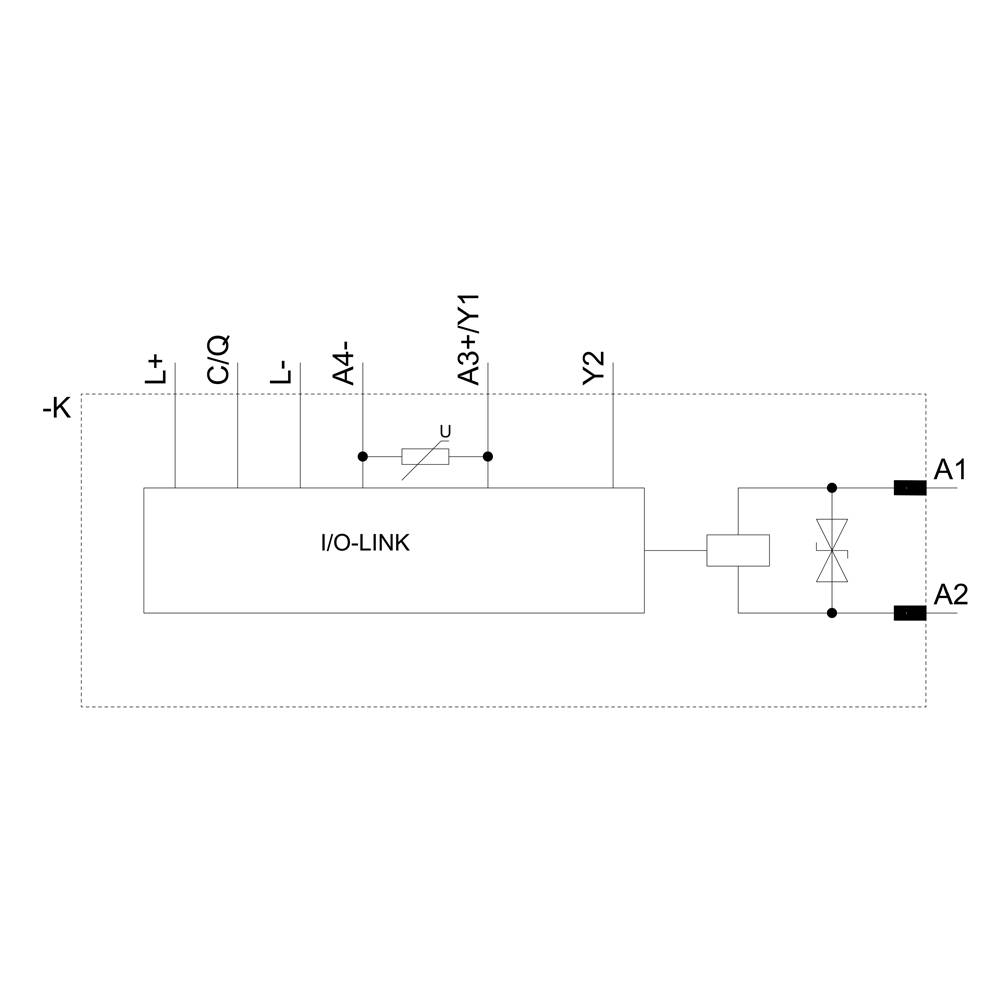

Block diagram of an I/O-Link system with connections: '+', 'C/Q', 'L-', 'A4-', 'A3/Y1', 'Y2', and A1/A2. Line connects A1 and A2.

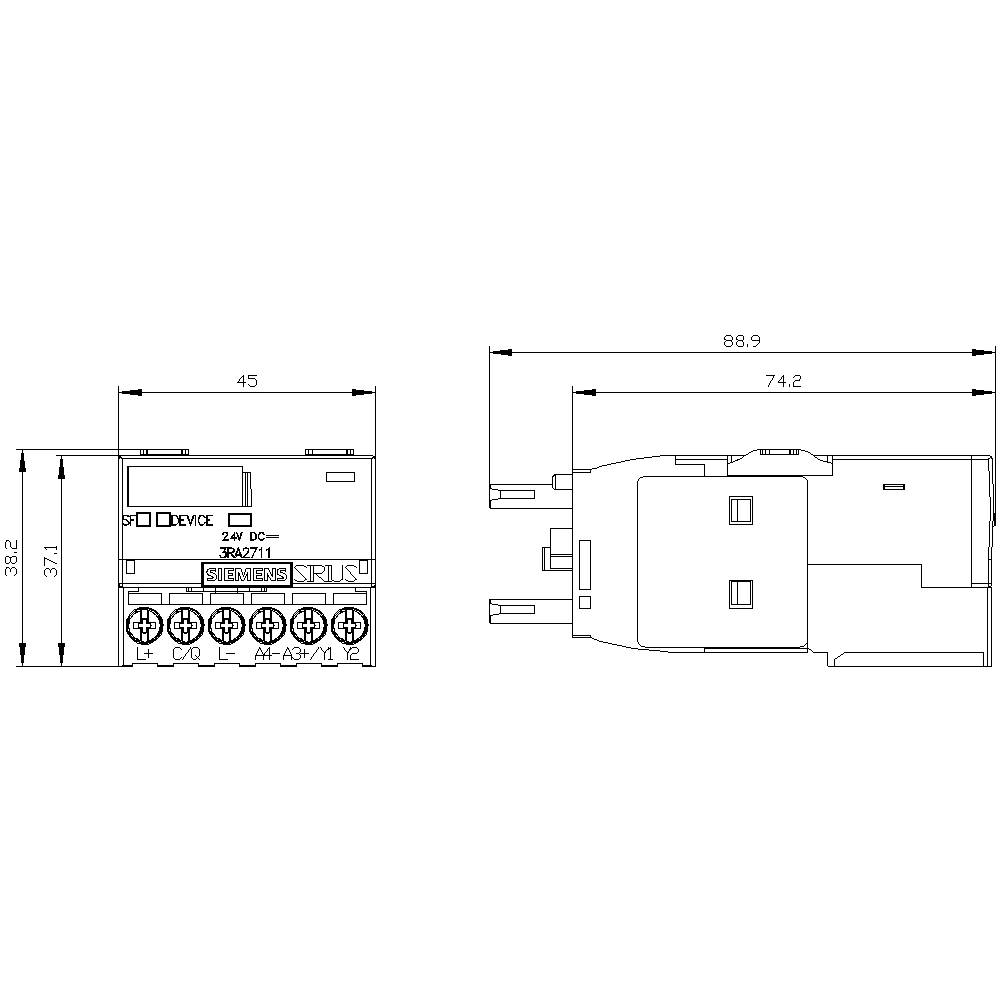

Technical drawing of an electrical relay with dimensions: width 45 mm, overall length 88.9 mm, depth 74.2 mm.

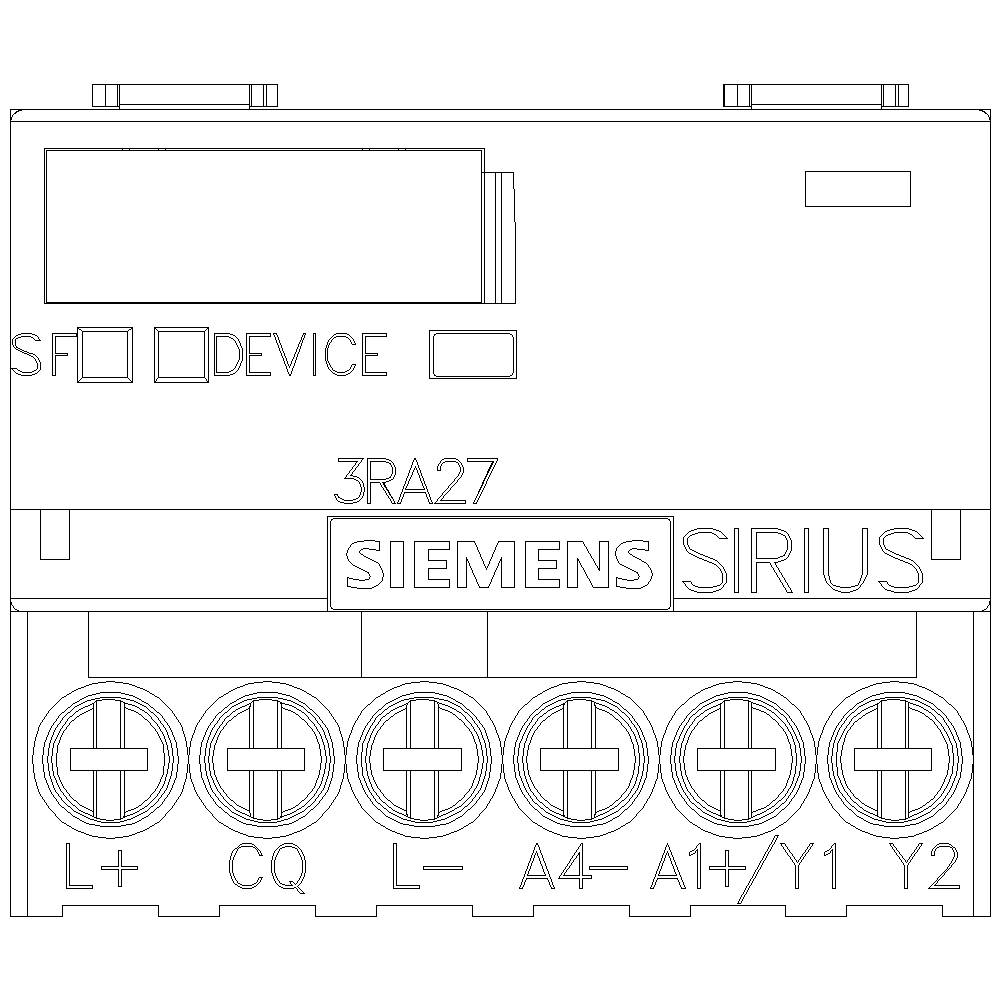

Switching device with connections for L+, CQ, L-, A4-, A1-/Y1, Y2. Marking: 'SIEMENS SIRIUS' and '3RA27'. Indicators for 'SF' and 'DEVICE'.

1/6

Image similar

Product type

Function module

Connection

Screw terminal

Type

3RA2711-1AA00

Compatible with

Siemens

Compatible with series

Siemens Sirius series

Datasheet (PDF)

Dispatches on Mon, 2 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€ 92.43

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC

Product type: Function module

Type: 3RA2711-1AA00

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Push-fit

Connection: Screw terminal

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 37 mm

Depth: 75 mm

Dim: (W x H x D) 45 x 37 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: TRUE

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

No. of pins

Product type

Nominal voltage

Current load

Siemens 3RA2315-8XB30-1AK6 Reversing contactor combo 3 makers 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1699327

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1BB4 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1699328

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1BW4 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1699329

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-2BB4 Reversing contactor combo 3 makers 690 V AC 6.1 A Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1701883

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1AP0 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1702108

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1AF0 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1704758

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2316-8XB30-1AK6 Reversing contactor combo 3 makers 4 kW 690 V AC 9 A Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1704759

3-pin

Reversing contactor combo

690 V AC

9 A

Siemens 3RA2315-8XE30-2BB4 Reversing contactor combo 3 makers 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1732573

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1AB0 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1744500

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1AH0 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1744501

3-pin

Reversing contactor combo

690 V AC

6.1 A

Documents & Downloads

Datasheet

Datasheet 1745888 Siemens 3RA2711-1AA00 Function module Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1745888 Siemens 3RA2711-1AA00 Function module Compatible with (relay brand): Siemens 1 pc(s)

Description

Power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NO, 230 V AC, 50 / 60 Hz 3-pole, Size S00 screw terminal
