Buy Siemens 3RA2711-2AA00 Function module Compatible with (relay brand): Siemens Single 1 pc(s)

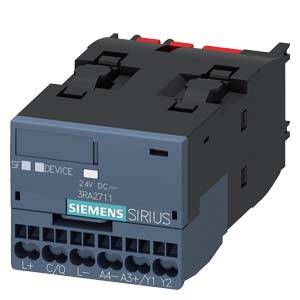

A Siemens electric switching relay from the Sirius series. Marking: 'SF DEVICE, 2.4V DC, 3RA2711'.

Image similar

An open electrical cabinet shows orderly rows of switchgear, control devices, cables, and connections.

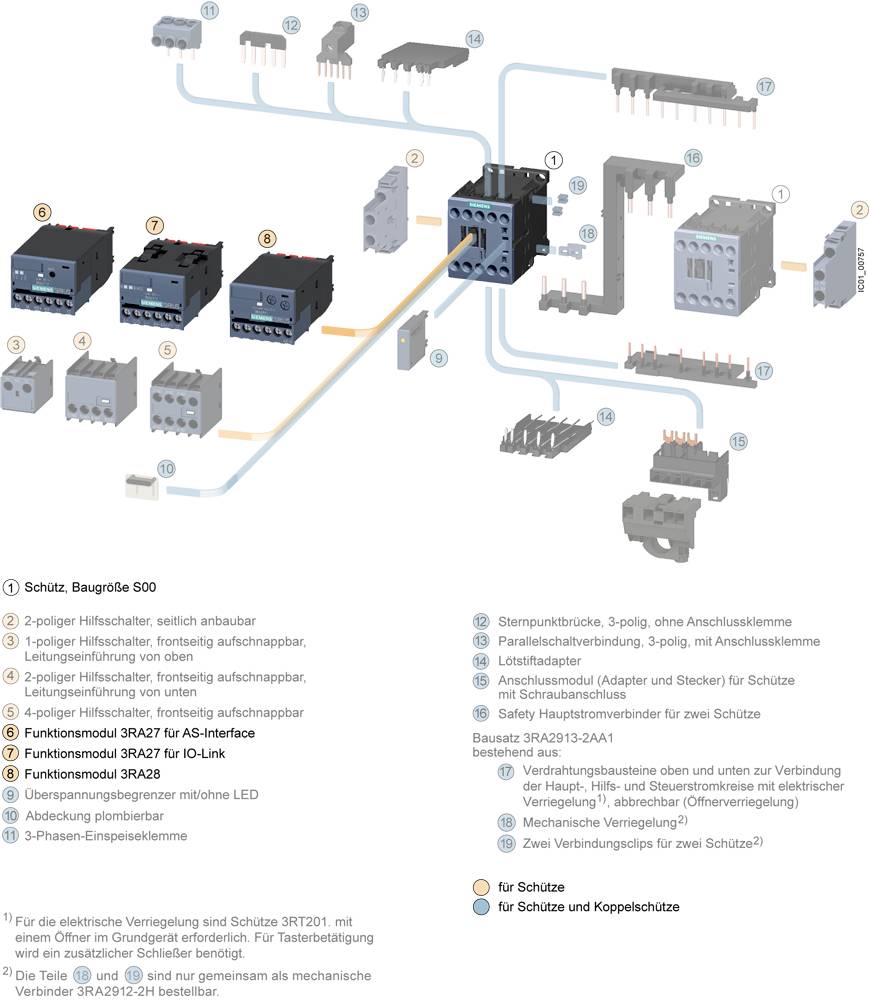

Overview of Protectors and Modules with Connections. Numbered labels show respective components and their functions.

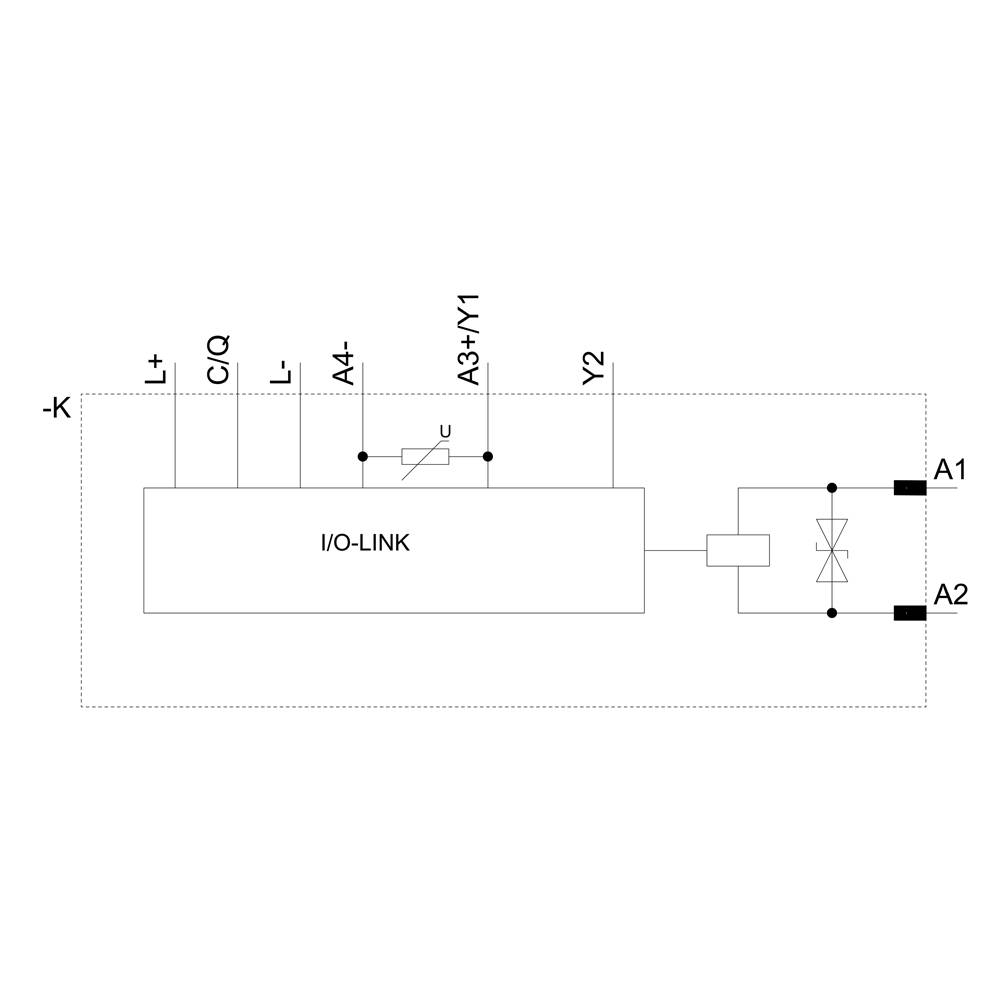

Circuit diagram shows I/O-Link module connection with terminals: L+, C/Q, L-, A4-, A3/Y1, and Y2, connected to A1 and A2, bridged by diode symbol.

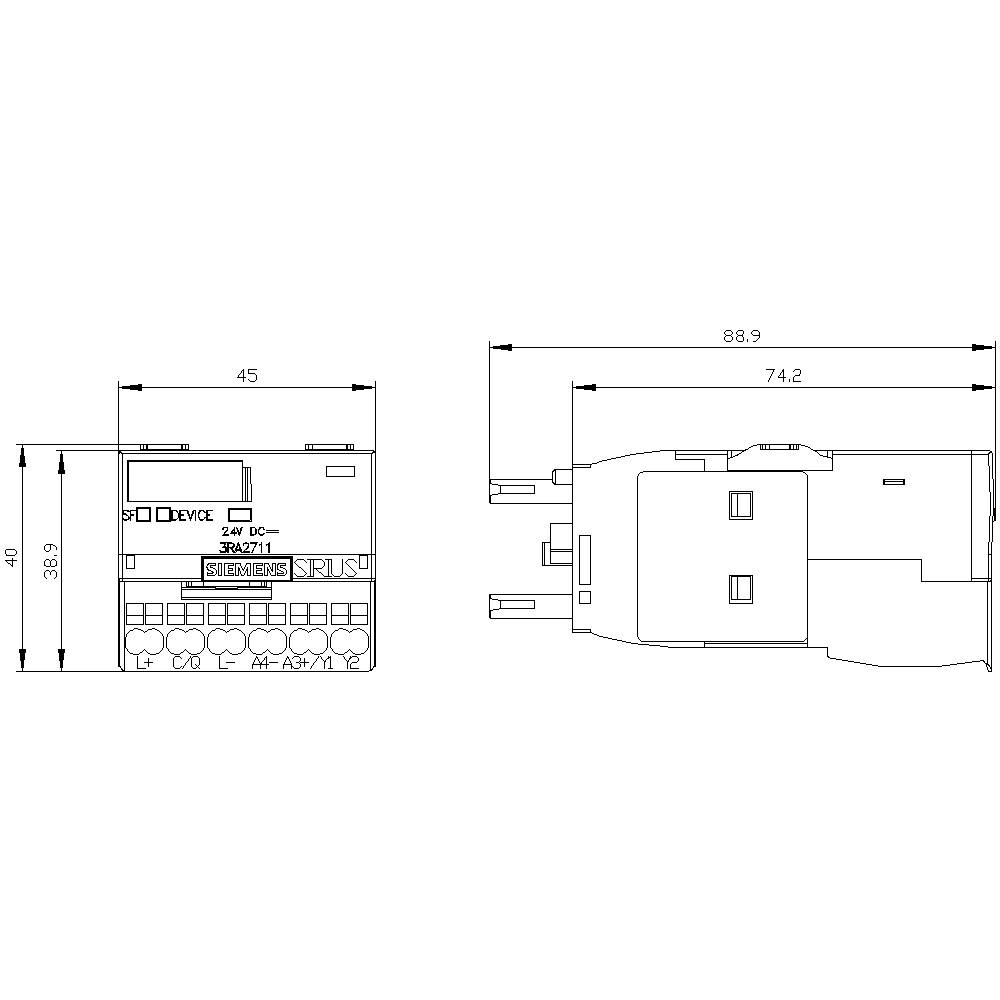

Technical drawing of an electronic device with dimensions: width 45 mm, depth 88.9 mm. Details show connections and housing shape.

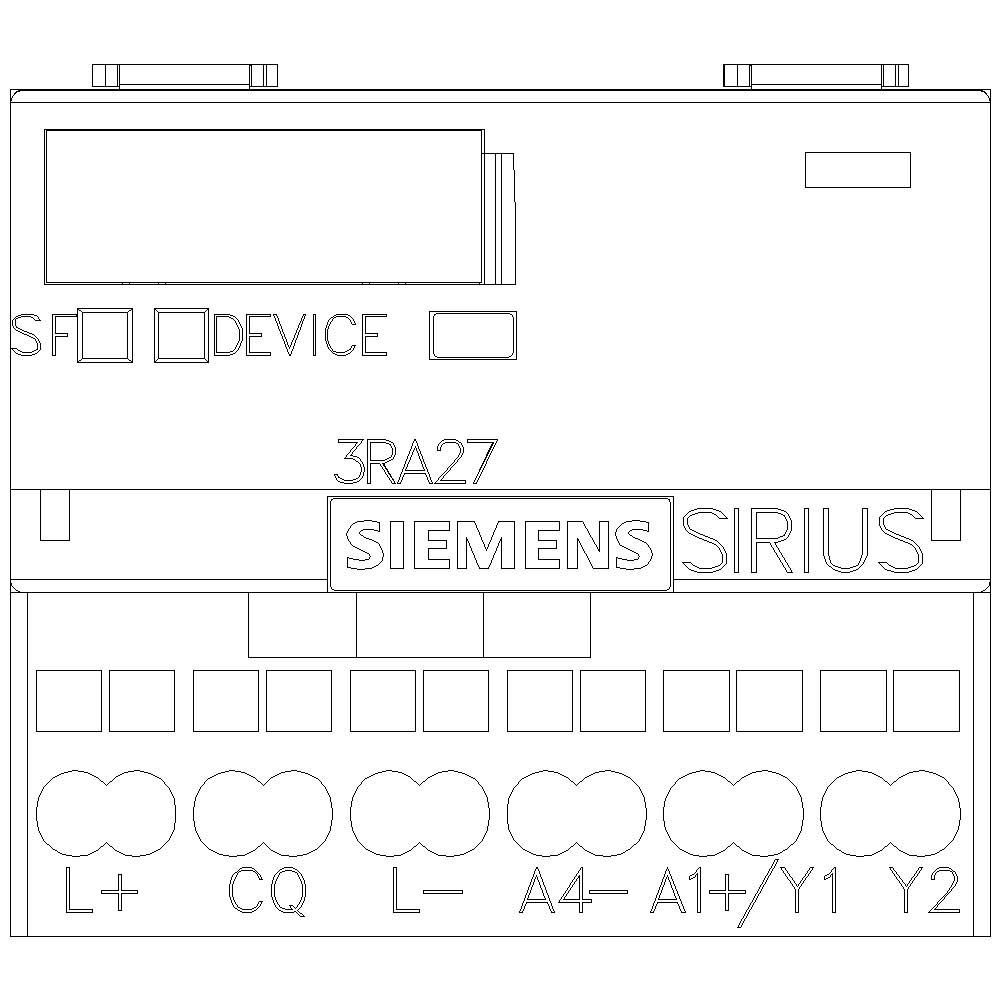

'Siemens Sirius' control module with labels: SF, Device, 3RA27, and various connections in the lower section.

1/6

Image similar

Product type

Function module

Connection

Spring-loaded connector

Packaging type

Single

Type

3RA2711-2AA00

Compatible with

Siemens

Datasheet (PDF)

Dispatches on Mon, 2 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€ 92.43

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC

Packaging type: Single

Product type: Function module

Type: 3RA2711-2AA00

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Push-fit

Connection: Spring-loaded connector

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 39 mm

Depth: 75 mm

Dim: (W x H x D) 45 x 39 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

No. of pins

Product type

Nominal voltage

Current load

Siemens 3RA2315-8XB30-1AK6 Reversing contactor combo 3 makers 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1699327

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1BB4 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1699328

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1BW4 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1699329

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-2BB4 Reversing contactor combo 3 makers 690 V AC 6.1 A Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1701883

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1AP0 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1702108

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1AF0 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1704758

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2316-8XB30-1AK6 Reversing contactor combo 3 makers 4 kW 690 V AC 9 A Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1704759

3-pin

Reversing contactor combo

690 V AC

9 A

Siemens 3RA2315-8XE30-2BB4 Reversing contactor combo 3 makers 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1732573

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1AB0 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1744500

3-pin

Reversing contactor combo

690 V AC

6.1 A

Siemens 3RA2315-8XB30-1AH0 Reversing contactor combo 3 makers 3 kW 690 V AC 6.1 A Compatible with (relay brand): Siemens 1 pc(s)

Item no:1744501

3-pin

Reversing contactor combo

690 V AC

6.1 A

Documents & Downloads

Datasheet

Datasheet 1745893 Siemens 3RA2711-2AA00 Function module Compatible with (relay brand): Siemens Single 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1745893 Siemens 3RA2711-2AA00 Function module Compatible with (relay brand): Siemens Single 1 pc(s)

Description

Function module for AS-i, Reversing start, spring-type terminal, Installation on contactors 3RT2 Communication-capable contactor required
