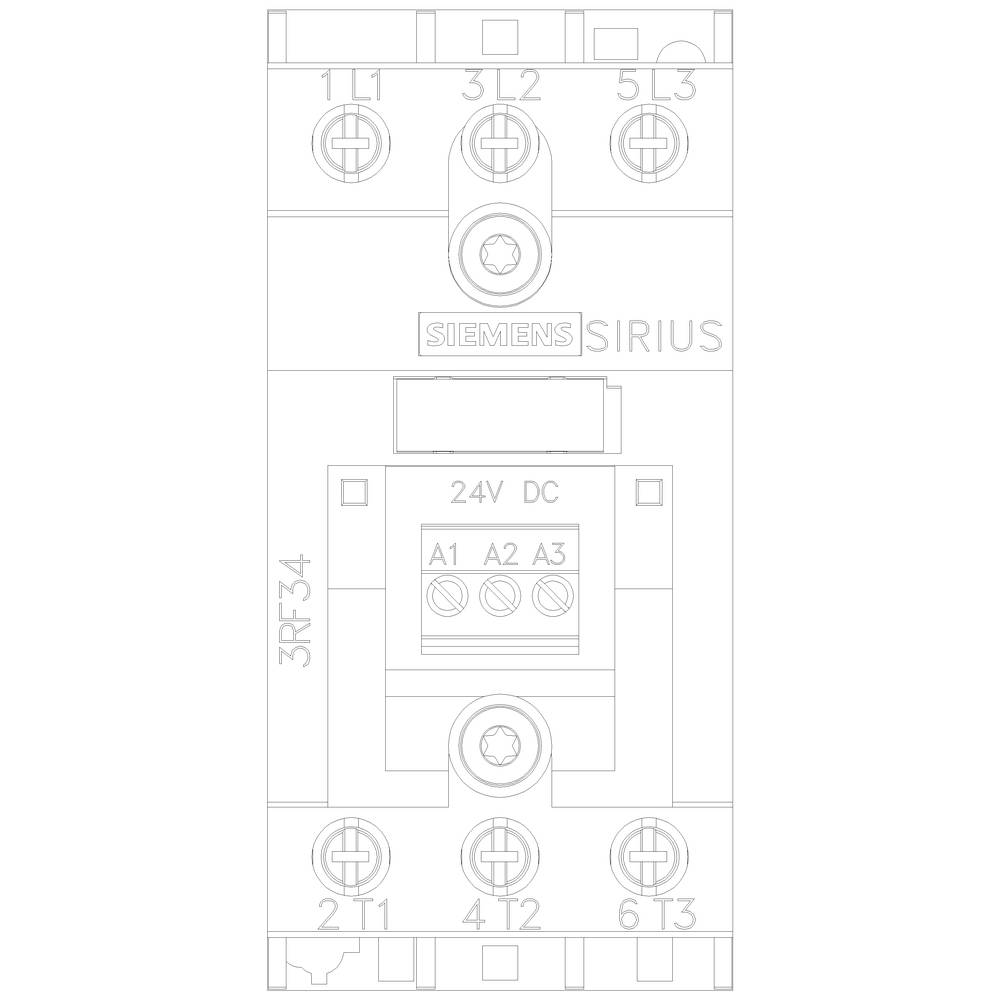

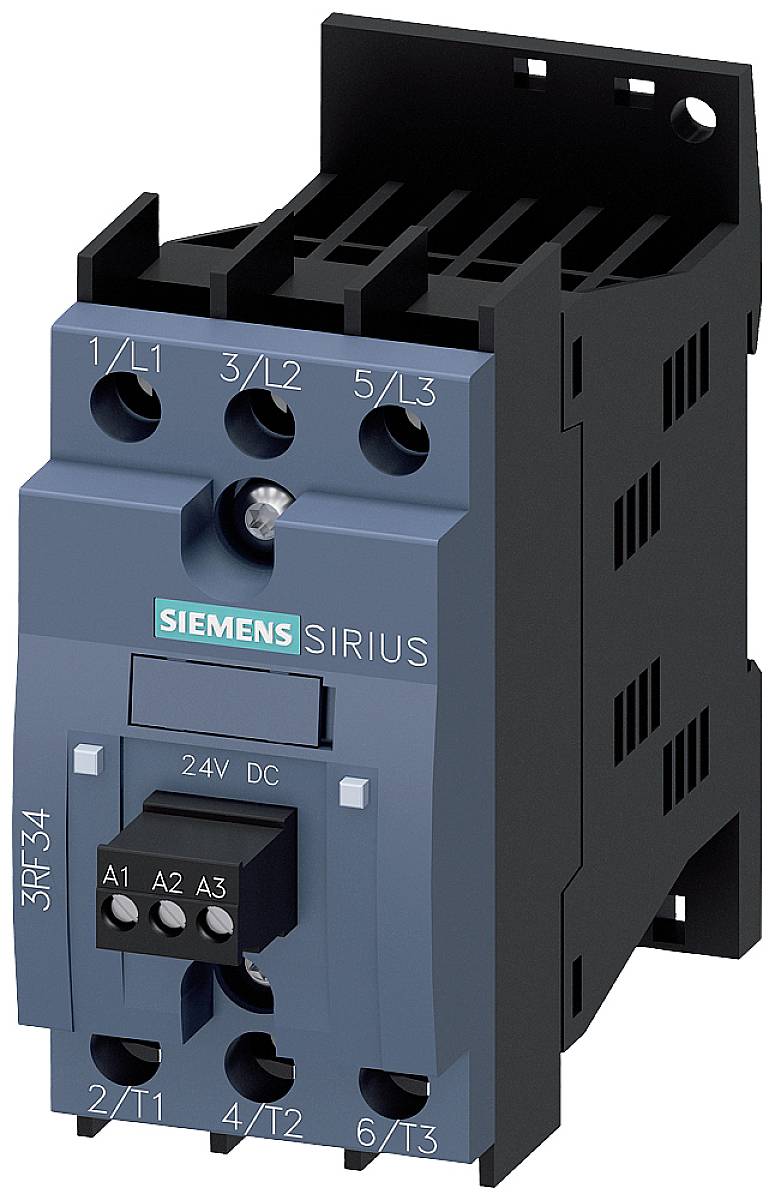

Siemens 3RF3403-1BD24 SSC 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSC
No. of pins
3-pin
Connection
Screws
Type
3RF3403-1BD24
Contact type
2 makers
Datasheet (PDF)
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
14 days return policy included
Technical specifications
- Voltage type: AC
- Conductor cross-section single-wire or multi-wire: 6 mm²
- Conductor cross-section: Fine strand 10 mm²
- Mounting type: Snap-on fastening: Screw fixing
- Number of pins: 3polig
- Product type
SSC
- Type
3RF3403-1BD24
- No. of pins
3-pin
- Contact type
2 makers
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
45 mm
- Height
95 mm
- Depth
113.8 mm

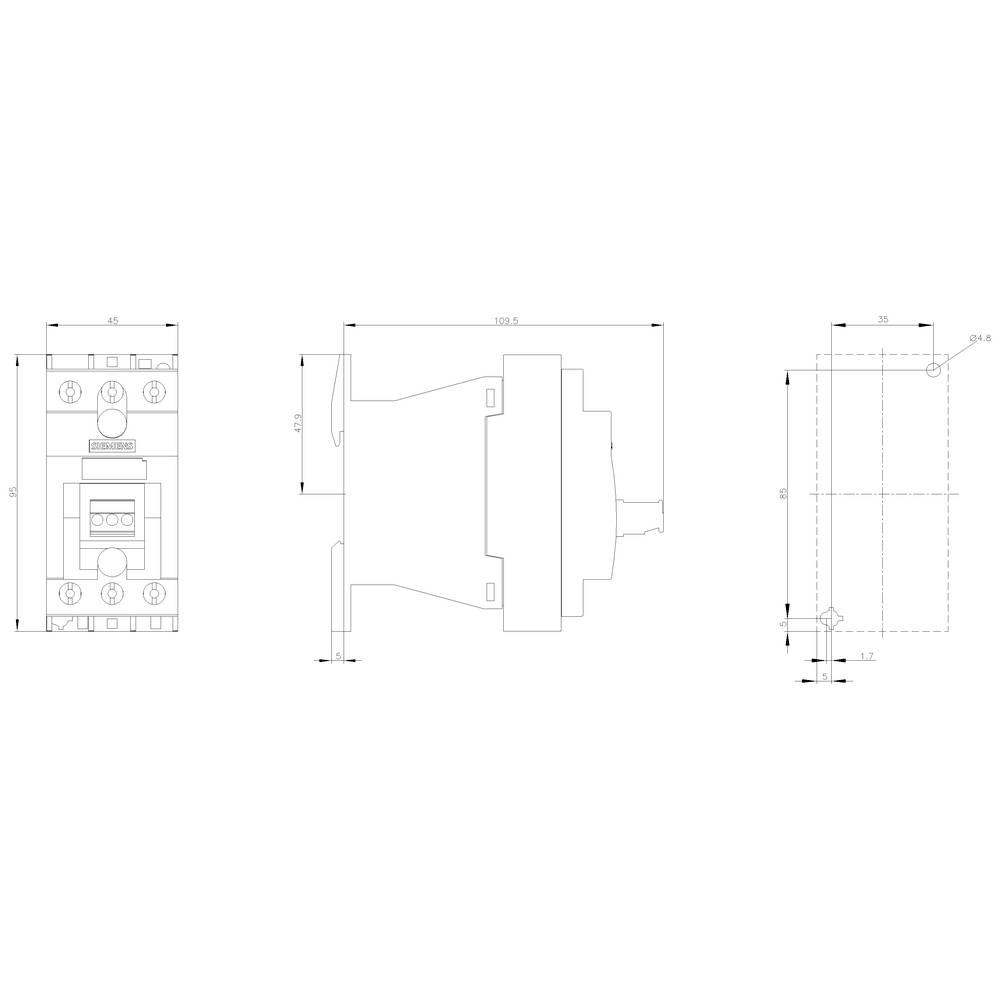

- Dim
(W x H x D) 45 x 95 x 113.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
3
TRUE
3.8 A
AC
3.8 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1742904 Siemens 3RF3403-1BD24 SSC 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1742904 Siemens 3RF3403-1BD24 SSC 2 makers 1 pc(s)
Description
RS1E-X for ET200S High Feature reversing starter Setting range 0.3...3 A Mechanical switching Electronic protection AC-3, up to 1.1 kW / 400 V expandable for Brake control module 2DI module 2DI module Circuit breaker signaling parameterizable DPV 1-capable PROFIENERGY-capable to PN
