Siemens 3RF3412-1BB04 SSC 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSC
No. of pins
3-pin
Connection
Screws
Type
3RF3412-1BB04
Contact type
2 makers
Datasheet (PDF)
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
14 days return policy included
Technical specifications
- Voltage type: DC
- Conductor cross-section single-wire or multi-wire: 6 mm²
- Conductor cross-section: Fine strand 10 mm²
- Mounting type: Snap-on fastening: Screw fixing
- Number of pins: 3polig
- Product type
SSC
- Type
3RF3412-1BB04
- No. of pins
3-pin
- Contact type
2 makers
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
90 mm
- Height
95 mm
- Depth
100.8 mm
- Dim

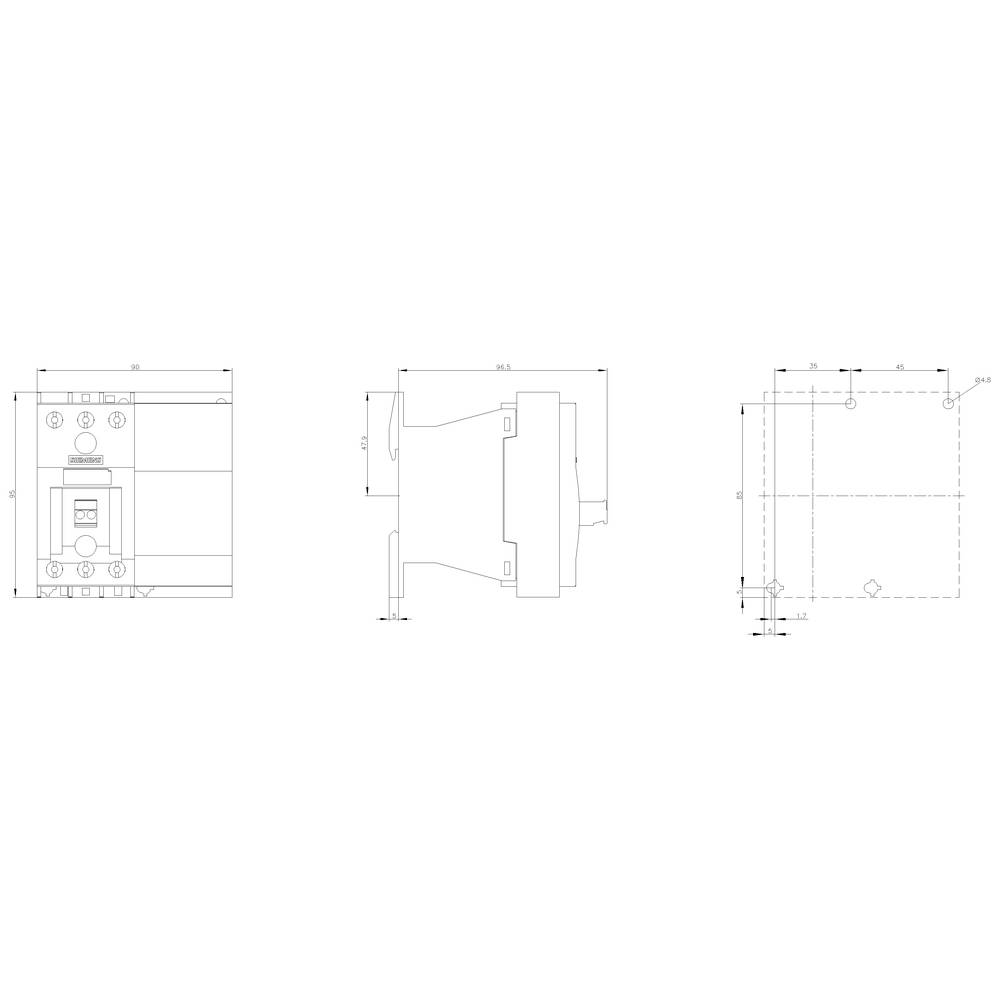

(W x H x D) 90 x 95 x 100.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
3
TRUE
12.5 A
DC
12.5 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1742919 Siemens 3RF3412-1BB04 SSC 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1742919 Siemens 3RF3412-1BB04 SSC 2 makers 1 pc(s)
Description

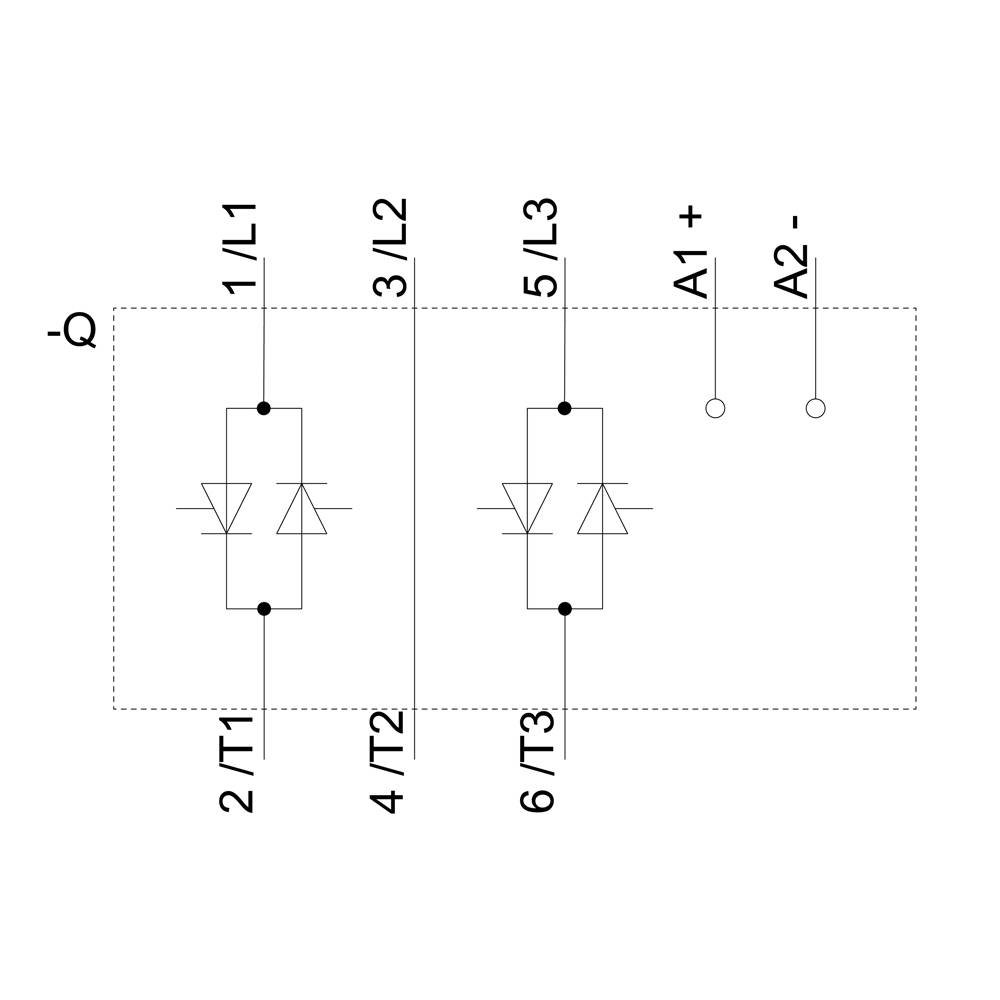

Solid-state contactor 3-phase 3RF3 AC 53 / 16 A / 40 °C 48-600 V / 24 V DC 2-phase controlled Instantaneous switching Spring-type terminal
