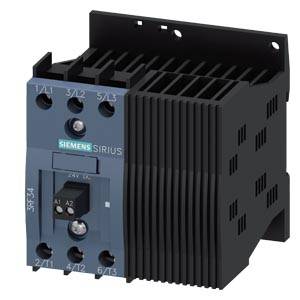

Siemens 3RF3412-1BB26 SSC 2 makers 6.1 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSC
No. of pins
3-pin
Current load
6.1 A
Connection
Screws
Type
3RF3412-1BB26
Datasheet (PDF)
Number
Total (€ 193.27 / piece)
€ 193.27
plus VAT.
Technical specifications
- Voltage type: AC
- Conductor cross-section single-wire or multi-wire: 6 mm²
- Conductor cross-section: Fine strand 10 mm²
- Mounting type: Snap-on fastening: Screw fixing
- Load current: 6.1 A
- Number of pins: 3polig
- Product type
SSC
- Type
3RF3412-1BB26
- No. of pins
3-pin
- Contact type
2 makers
- Current load
6.1 A
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
90 mm
- Height
95 mm
- Depth
100.8 mm
- Dim
(W x H x D) 90 x 95 x 100.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
3
TRUE
12.5 A
AC
12.5 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1742926 Siemens 3RF3412-1BB26 SSC 2 makers 6.1 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1742926 Siemens 3RF3412-1BB26 SSC 2 makers 6.1 A 1 pc(s)
Description
Contact block for position switch 3SE5162 Mounting position on the right in the switch 1 NO/1 NC slow-action contact
