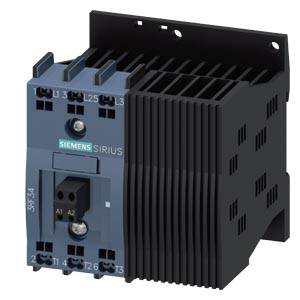

Siemens 3RF3416-2BB04 SSC 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSC
No. of pins
3-pin
Connection
Spring-loaded connector
Type
3RF3416-2BB04
Contact type
2 makers
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 184.87 / piece)
€
Technical specifications
- Voltage type: DC
- Conductor cross-section: Single-wire or multi-wire: 2.5 mm²
- Conductor cross-section: Fine strand 1.5 mm²
- Mounting type: Snap-on fastening: Screw fixing
- Number of pins: 3polig
- Product type
SSC
- Type
3RF3416-2BB04
- No. of pins
3-pin
- Contact type
2 makers
- Mounting type
Snap-in
Screw-fit
- Connection
Spring-loaded connector
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
90 mm
- Height
95 mm
- Depth
100.8 mm
- Dim
(W x H x D) 90 x 95 x 100.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
3
TRUE
16 A
DC
16 A
Documents & Downloads
Datasheet
Datasheet 1742933 Siemens 3RF3416-2BB04 SSC 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1742933 Siemens 3RF3416-2BB04 SSC 2 makers 1 pc(s)
Description
power contactor, AC-3 12 A, 5.5 kW / 400 V 2 NO + 2 NC, 110 V AC, 50 Hz 120 V, 60 Hz, with plugged-in Varistor, 3-pole, Size S0 screw terminal Captive auxiliary switch for SUVA applications
