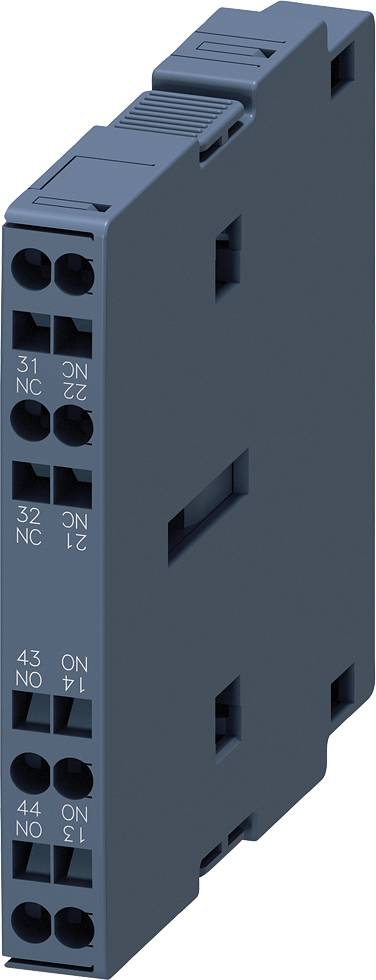

Siemens 3RH1921-2DE11 Auxiliary switch + enclosure Compatible with (relay brand): Siemens Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Connection
Spring-loaded connector
Packaging type
Single
Type
3RH1921-2DE11
Type
S0
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Packaging type
Single
- Product type
Auxiliary switch
- Type
3RH1921-2DE11
- Type
S0
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Features
+ enclosure
- Mounting type
Snap-in
- Connection
Spring-loaded connector
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
10 mm
- Height
72.5 mm
- Depth
71 mm
- Dim
(W x H x D) 10 x 72.5 x 71 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
Top mounting
None
Spring clamp connection
0
1
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1744068 Siemens 3RH1921-2DE11 Auxiliary switch + enclosure Compatible with (relay brand): Siemens Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1744068 Siemens 3RH1921-2DE11 Auxiliary switch + enclosure Compatible with (relay brand): Siemens Single 1 pc(s)
Description

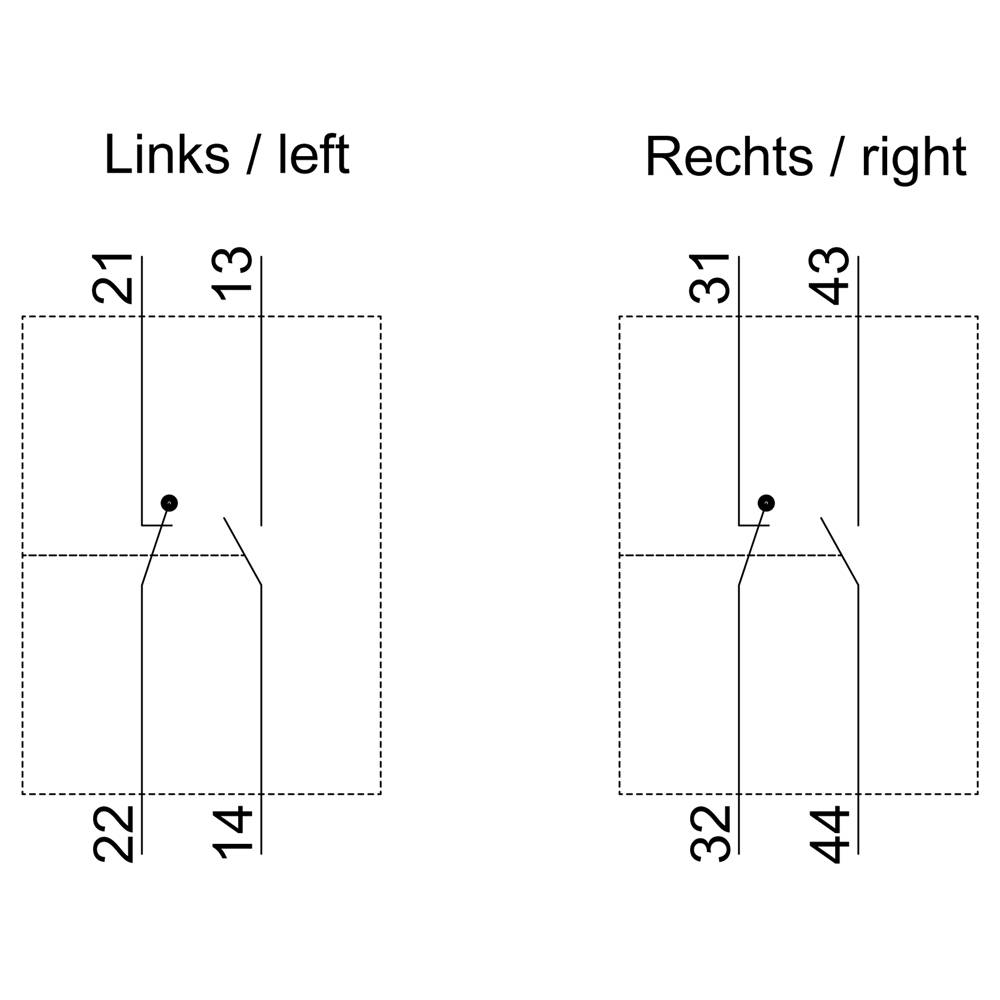

Auxiliary switch block, 22, 2 NO + 2 NC, EN 50012, Spring-type connection system, for motor contactors, 4-pole
Hints
Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
