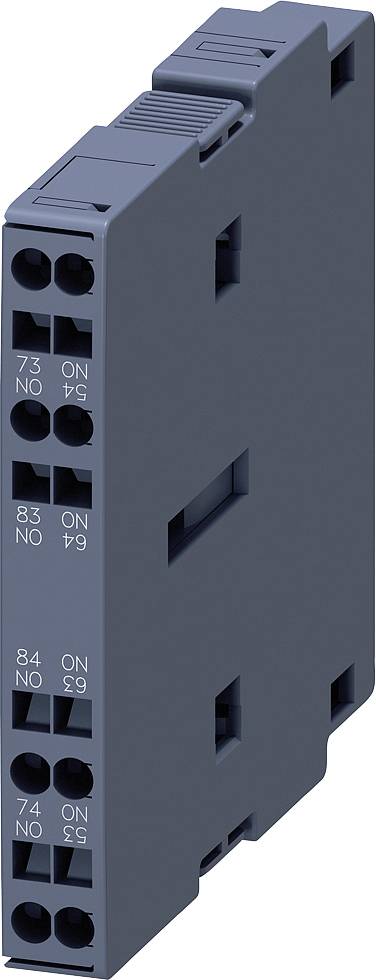

Siemens 3RH1921-2EA20 Auxiliary switch module Instant response 2 makers pluggable Compatible with (relay brand): Siemens
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
Connection
Spring-loaded connector
Packaging type
Piece
Type
3RH1921-2EA20
Type
S0
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Auxiliary switch module
- Type
3RH1921-2EA20
- Type
S0
- Switching type
Instant response
- Contact type

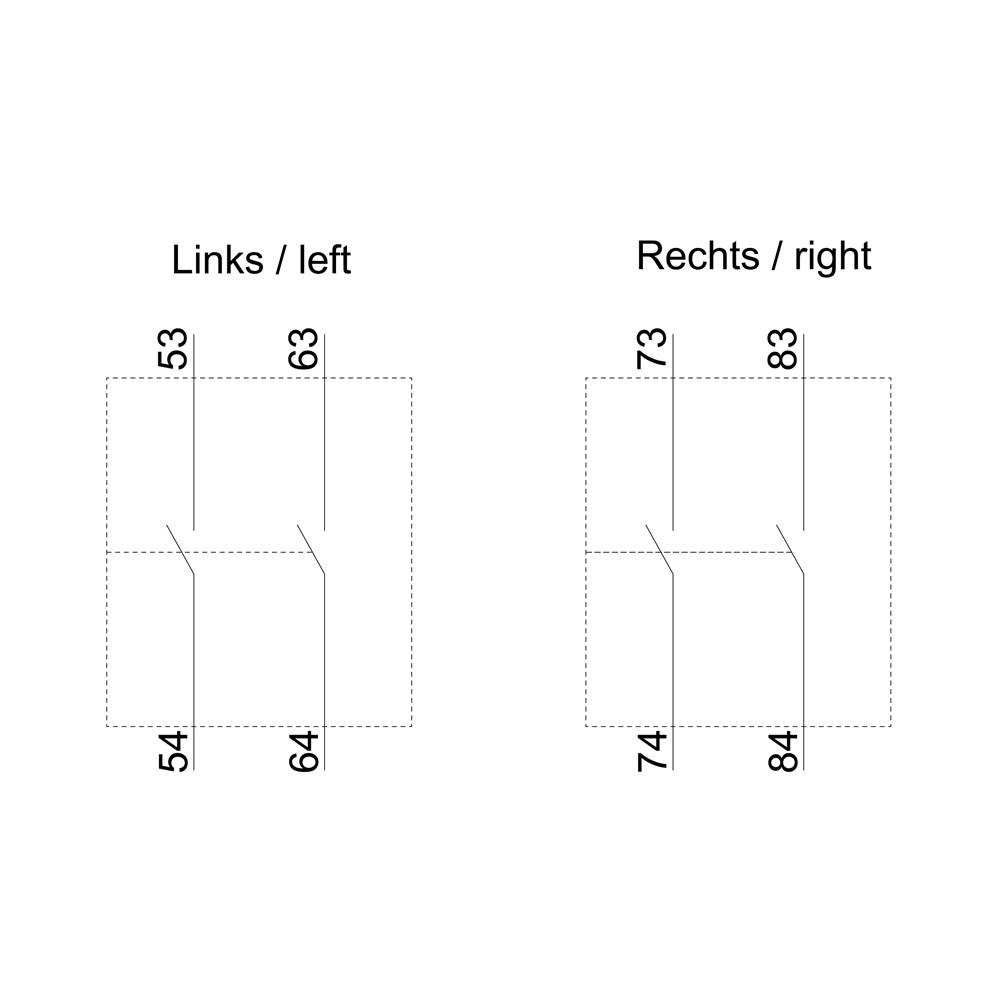

2 makers
- Auxiliary contact type
2 makers
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Features
pluggable
- Mounting type
Snap-in
- Connection
Spring-loaded connector
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C

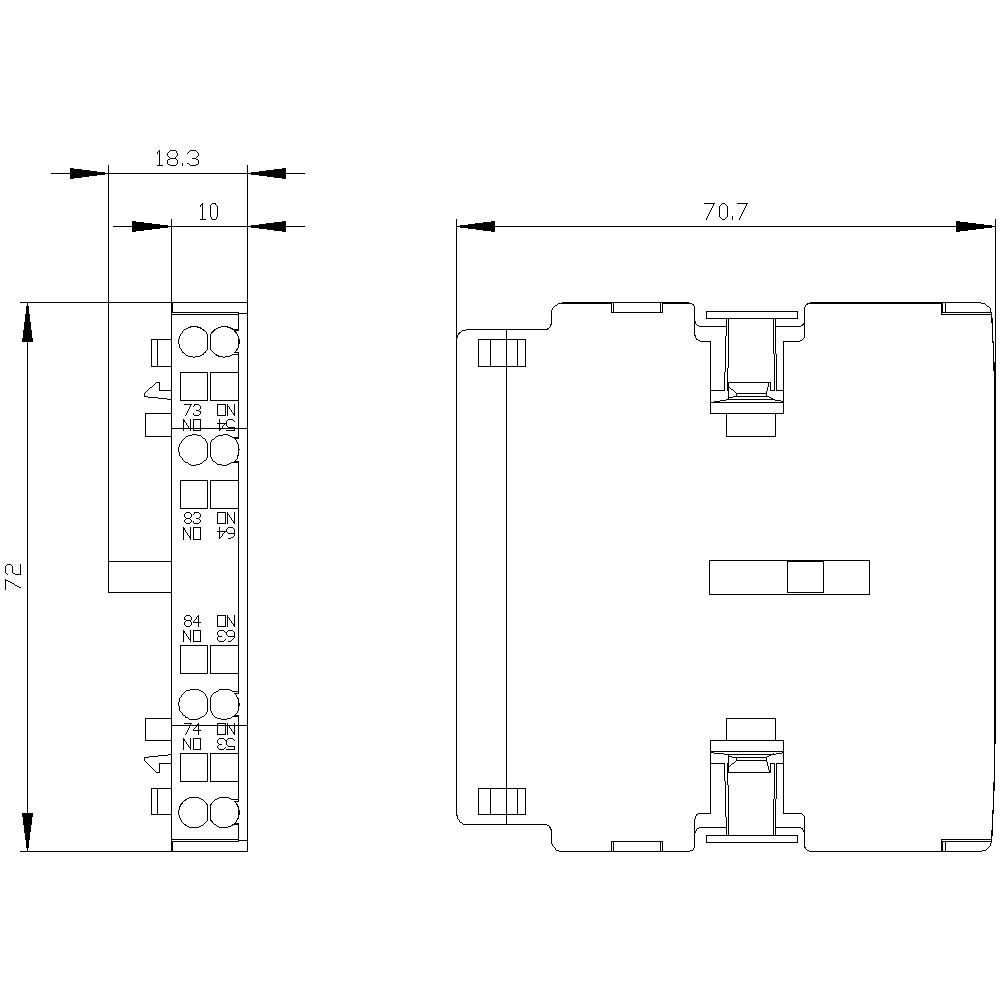

- Width
10 mm
- Height
72.5 mm
- Depth
71 mm
- Dim
(W x H x D) 10 x 72.5 x 71 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
Top mounting
None
6 A
Spring clamp connection
0
0
2
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1704507 Siemens 3RH1921-2EA20 Auxiliary switch module Instant response 2 makers pluggable Compatible with (relay brand): Siemens
User & Safety Instructions
User & Safety Instructions 1704507 Siemens 3RH1921-2EA20 Auxiliary switch module Instant response 2 makers pluggable Compatible with (relay brand): Siemens
Description
Auxiliary switch block, 1 NO + 1 NC, EN 50012, lateral, 10 mm, spring-type terminal, Size S3 ... S12, for motor contactors, 2-pole 2nd lateral auxiliary switch
Hints
Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
