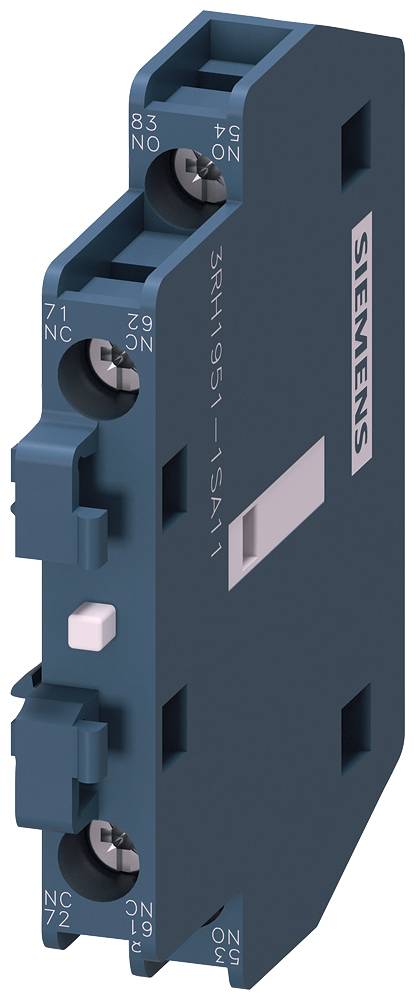

Siemens 3RH1951-1SA11 Star-delta combo Instant response + auxiliary contact Compatible with (relay brand): Siemens 1 pc(
EAN:
Part number:
Item no:
Product type
Star-delta combo
Type
3RH1951-1SA11
Switching type
Instant response
Compatible with
Siemens
Compatible with series
Siemens Sirius series
Datasheet (PDF)
Technical specifications
- Product type
Star-delta combo
- Type
3RH1951-1SA11
- Switching type
Instant response
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Features
+ auxiliary contact
- Mounting type
Site
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
Top mounting
None
4 A
Screw connection
0
1
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2871529 Siemens 3RH1951-1SA11 Star-delta combo Instant response + auxiliary contact Compatible with (relay brand): Siemens 1 pc(
User & Safety Instructions
User & Safety Instructions 2871529 Siemens 3RH1951-1SA11 Star-delta combo Instant response + auxiliary contact Compatible with (relay brand): Siemens 1 pc(
Description
Additional auxiliary contact block for 3RT135, 3RT136, 3RT137 1S 1Ö, laterally mounted, screw connection auxiliary switches SIRIUS 3RH19 for extending the auxiliary contacts in the control circuit.
This auxiliary switch 3RH19 can be mounted on the 3RT13 contactors without tools.
The 3RH19/3RH29 auxiliary switches are available as front-side or side-mountable variants, with up to four instantaneous switching or up to two leading-edge closing contacts and NC contacts. The auxiliary switches can be designed as positively-driven contact elements in 3RH auxiliary contactors or as mirror contacts in 3RT power contactors. They are available throughout with screw connection and spring connection.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
This auxiliary switch 3RH19 can be mounted on the 3RT13 contactors without tools.
The 3RH19/3RH29 auxiliary switches are available as front-side or side-mountable variants, with up to four instantaneous switching or up to two leading-edge closing contacts and NC contacts. The auxiliary switches can be designed as positively-driven contact elements in 3RH auxiliary contactors or as mirror contacts in 3RT power contactors. They are available throughout with screw connection and spring connection.
Simple, efficient, always up-to-date - the SIRIUS modular system.
