Image similar

'An open electrical cabinet with various electrical components and wires. The cabinet door is transparent.'

'Auxiliary Shooter and Accessories' shows various switch components and adapters with numbered explanations of their function and application.

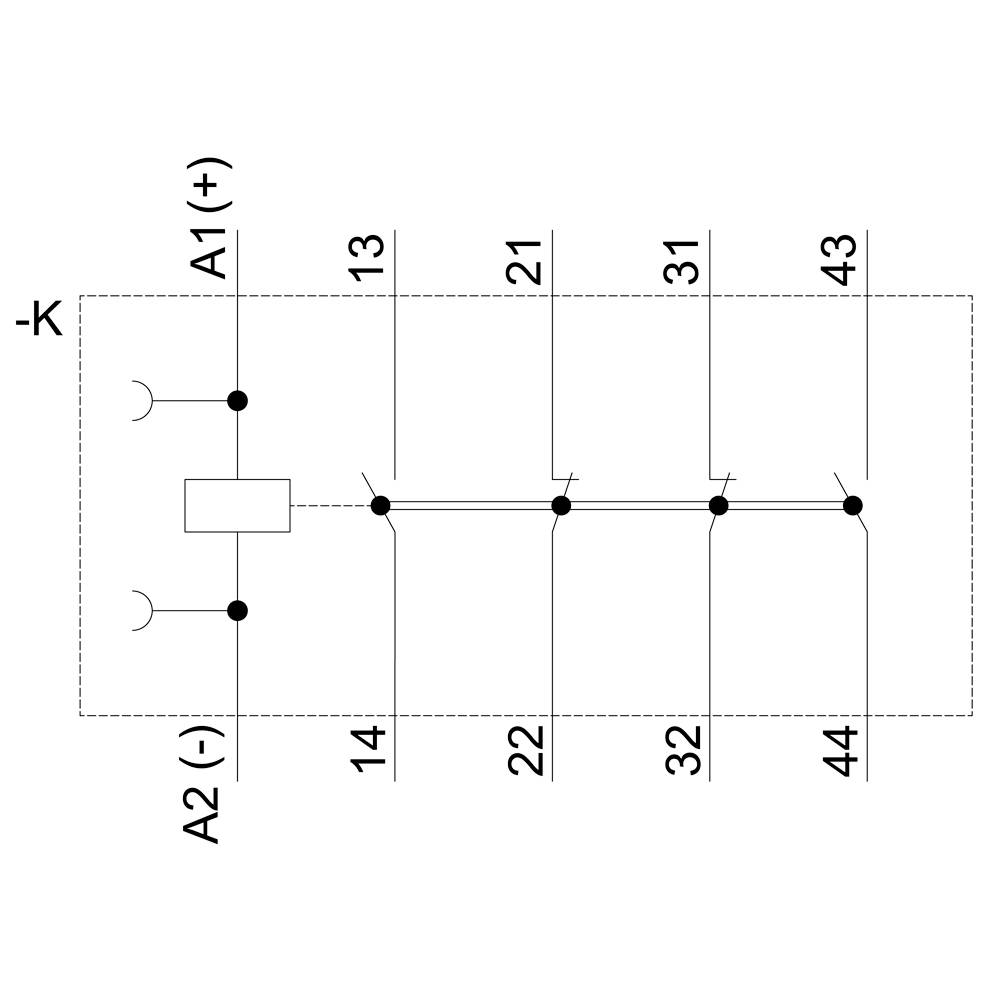

Circuit diagram of a relay with terminals A1(+), A2(-) and switching contacts 13-14, 21-22, 31-32, 43-44.

Technical Drawing of an Electrical Relay with Dimensions: Width 45mm, Depth 73mm, and Height 32mm, including Side and Front Views.

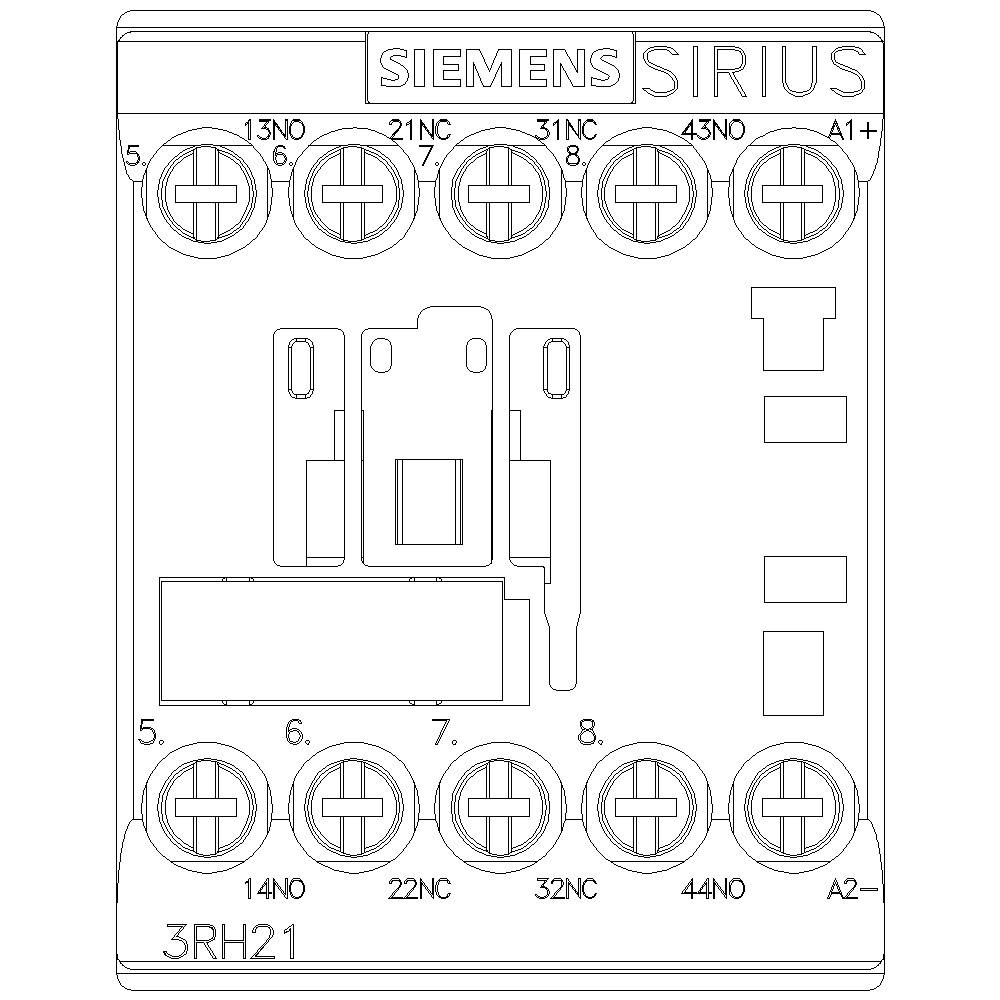

'SIEMENS SIRIUS 3RH21' switching device front view with connection terminals 13NC to 43NC at the top and 14NO to 32NC at the bottom.

1/6

Image similar

Product type

Auxiliary contactor

Type

3RH2122-1BE80

Type

S00

Auxiliary contact type

2 makers

2 breakers

Mounting type

Snap-in

Screw-fit

Datasheet (PDF)

Siemens

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 67.22 / piece)

€

Report legal concerns

Technical specifications

Type of voltage: DC

Product type: Auxiliary contactor

Type: 3RH2122-1BE80

Type: S00

Auxiliary contact type: 2 makers
2 breakers

Mounting type: Snap-in
Screw-fit

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 57.5 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 57.5 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 2

: 2

: 3 A

: Screw connection

: DC

Documents & Downloads

Datasheet

Datasheet 1744132 Siemens 3RH2122-1BE80 Auxiliary contactor 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1744132 Siemens 3RH2122-1BE80 Auxiliary contactor 1 pc(s)

Description

Traction contactor, AC-3 12 A, 5.5 kW / 400 V 125 V DC, 0.7-1.25*US with integrated suppressor diode 3-pole, Size S00 Spring-type terminal suitable for PLC outputs

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
