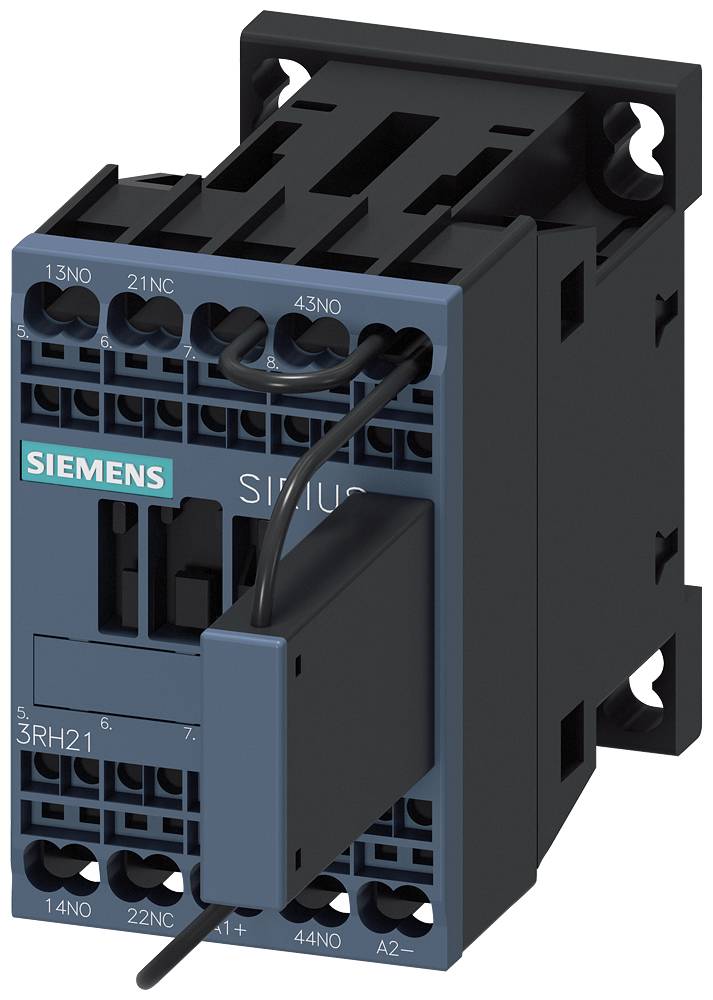

Siemens 3RH2122-2KG40-0LA4 Auxiliary contactor 2 makers + protection diode Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
No. of pins
4-pin
Connection
Spring-loaded connector
Packaging type
Single
Type
3RH2122-2KG40-0LA4
Datasheet (PDF)
Highlights & Details
Auxiliary contactor, 2S+1Ö, DC 125V, S00, spring-loaded connection, With suppressor diode
Our service for you
Technical specifications
- Packaging type
Single
- Product type
Auxiliary contactor
- Type
3RH2122-2KG40-0LA4
- Type
S00
- No. of pins
4-pin
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Control voltage (max.)
125 V DC
- Control voltage range
125 V DC (max)
- Features
+ protection diode
- Mounting type
DIN rail
- Connection
Spring-loaded connector
- Content
1 pc(s)
- RoHS-compliant
Yes
2
1
3 A
Spring clamp connection
DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2871557 Siemens 3RH2122-2KG40-0LA4 Auxiliary contactor 2 makers + protection diode Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2871557 Siemens 3RH2122-2KG40-0LA4 Auxiliary contactor 2 makers + protection diode Single 1 pc(s)
Description
Auxiliary contactor rail, 2 S + 1 Ö DC 125 V, 0.7 ... 1.25* US, integrated with suppressor diode, size S00, spring-loaded connection DIN rail mounting optimized (20G) suitable for PLC outputs SIRIUS 3RH2 auxiliary contactor for switching the control signals in the control circuit.
The SIRIUS 3RH2 contactor relays have standard connection designations and reliable and time-saving connection technology. The simultaneous switching of several auxiliary circuits is possible through output multiplication. All contacts are also available as SUVA variants with positive guidance for safety applications. The auxiliary contactors are climate-proof, have a high contact reliability and are suitable for worldwide use with the corresponding approvals (e.g. IEC AND UL/CSA).
They are available in AC or DC operation and are available with screw or spring-type tension technology. The basic version of the auxiliary contactor is 4 pole and can be expanded to 8 pole by snap-on auxiliary switch.
The extensive accessories of 3RT2 contactors for sizes S00 to S3 can also be used for 3RH2 contactor relays.
3RH2 contactor relays replace the tried and tested 3RH1 series.
Simple, efficient, always up-to-date - the SIRIUS modular system.
