Buy Siemens 3RH2122-2KJ80 Auxiliary coupling relay + protection diode 1 pc(s)

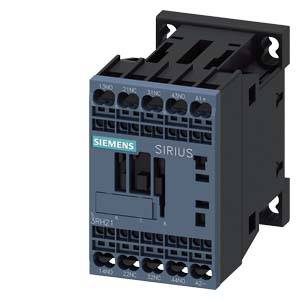

A dark grey Siemens SIRIUS contactor with multiple terminals at the top and bottom, suitable for industrial switching applications.

Image similar

Product type

Auxiliary coupling relay

Connection

Spring-loaded connector

Type

3RH2122-2KJ80

Type

S00

Auxiliary contact type

2 makers

2 breakers

Datasheet (PDF)

Dispatches on Fri, 16 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 45.37 / piece)

€ 45.37

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

CURRENT MONIT. F. IO-LINK S00 SPRING

Our service for you

Technical specifications

Type of voltage: DC

Product type: Auxiliary coupling relay

Type: 3RH2122-2KJ80

Type: S00

Auxiliary contact type: 2 makers
2 breakers

Control voltage (min.): 50.4 V DC

Control voltage (max.): 90 V DC

Control voltage range: 50.4 - 90 V DC

Compatible with series: Siemens Sirius series

Features: + protection diode

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 70 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 70 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 2

: 2

: 3 A

: 72-72 V

: Spring clamp connection

: DC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1686918 Siemens 3RH2122-2KJ80 Auxiliary coupling relay + protection diode 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1686918 Siemens 3RH2122-2KJ80 Auxiliary coupling relay + protection diode 1 pc(s)

Description

Current monitoring relay for IO-Link, can be mounted to Contactor 3RT2, Size S00 Apparant/active current monitoring 1.6-16 A, 20-400 Hz, 3-phase Supply voltage 24 V DC 1 change-over contact Monitoring for Current overshoot and undershoot Current asymmetry Phase failure, Cable break Phase sequence, Residual current Blocking current, Switching cycle and Operating hours counter Warning and alarm thresholds Auto-reset or manual reset ON delay 0-9999.9 s OFF delay 0-9999.9 s Reclosing delay 0-300 min spring-type connection system
