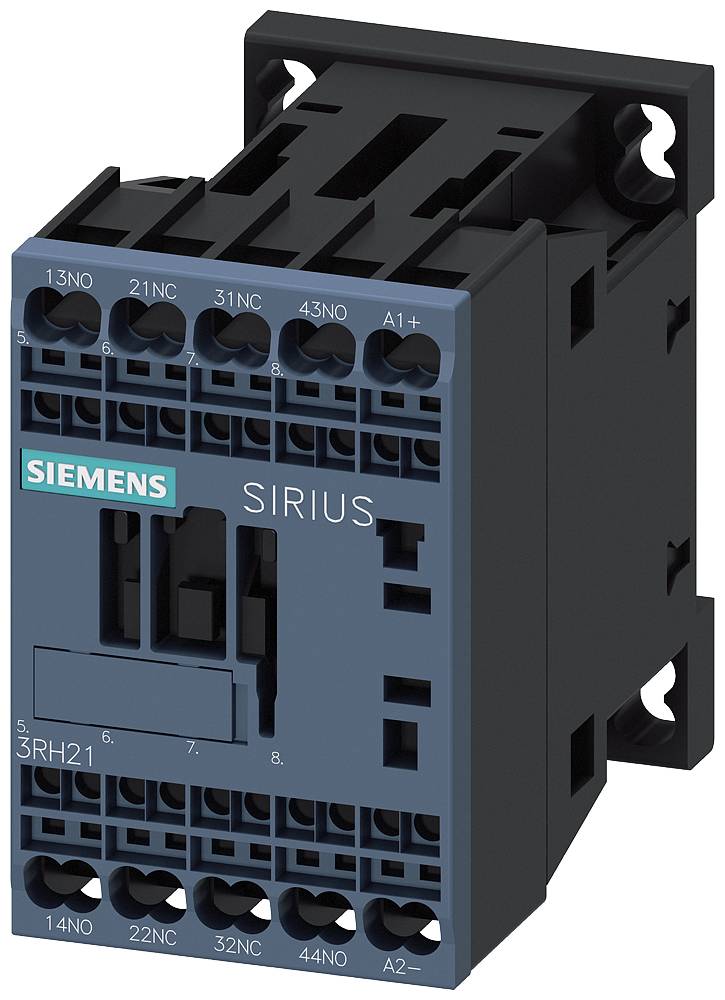

Siemens 3RH2122-2LB40-1AA0 Auxiliary contactor 2 makers + varistor Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
Connection
Spring-loaded connector
Packaging type
Piece
Type
3RH2122-2LB40-1AA0
Type
S00
Datasheet (PDF)
Highlights & Details
Auxiliary contactor, 2S+1Ö, DC 24V, S00, spring-loaded connection, With varistor
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Auxiliary contactor
- Type
3RH2122-2LB40-1AA0
- Type
S00
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Control voltage (min.)
16.8 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
16.8 - 30 V DC
- Compatible with series
Siemens Sirius series
- Features
+ varistor
- Connection
Spring-loaded connector
- Content
1 pc(s)
- RoHS-compliant
Yes
2
2
3 A
Spring clamp connection
DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2871560 Siemens 3RH2122-2LB40-1AA0 Auxiliary contactor 2 makers + varistor Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2871560 Siemens 3RH2122-2LB40-1AA0 Auxiliary contactor 2 makers + varistor Piece 1 pc(s)
Description
Auxiliary contactor rail, 2 S + 2 NC, 24 V DC, 0.7 ... 1.25* US, with varistor integrated, size S00, spring-loaded connection for mounting position SIRIUS 3RH2 coupling auxiliary contactor for switching the control signals in the control circuit with direct connection to electronic controls.
The SIRIUS 3RH2 auxiliary contactor relays have standard connection designations and reliable and time-saving connection technology. The simultaneous switching of several auxiliary circuits is possible through output multiplication. The contacts are also available as SUVA variants with positive guidance for safety applications. The coupling auxiliary contactors are climate-proof, have a high contact reliability and are suitable for worldwide use with appropriate approvals (e.g. IEC AND UL/CSA).
They are available in AC or DC operation and are available with screw or spring-type tension technology.
The extensive accessories of 3RT2 contactors for sizes S00 to S3 can also be used for 3RH2 coupling contactor relays.
The 3RH2 coupling contactor relays replace the tried and tested 3RH1 series.
Simple, efficient, always up-to-date - the SIRIUS modular system.
