A Siemens Sirius contactor, model 3RH2140-1BB40, for controlling electrical equipment in industrial applications, is shown.

A Siemens Sirius contactor, model 3RH2140-1BB40, for controlling electrical equipment in industrial applications, is shown.

An open electrical cabinet with multiple rows of electrical components and cables for controlling machines and systems.

'Overview of Auxiliary Gunner and Assistant Gunner. Displays various adapters and their functions with connection options.'

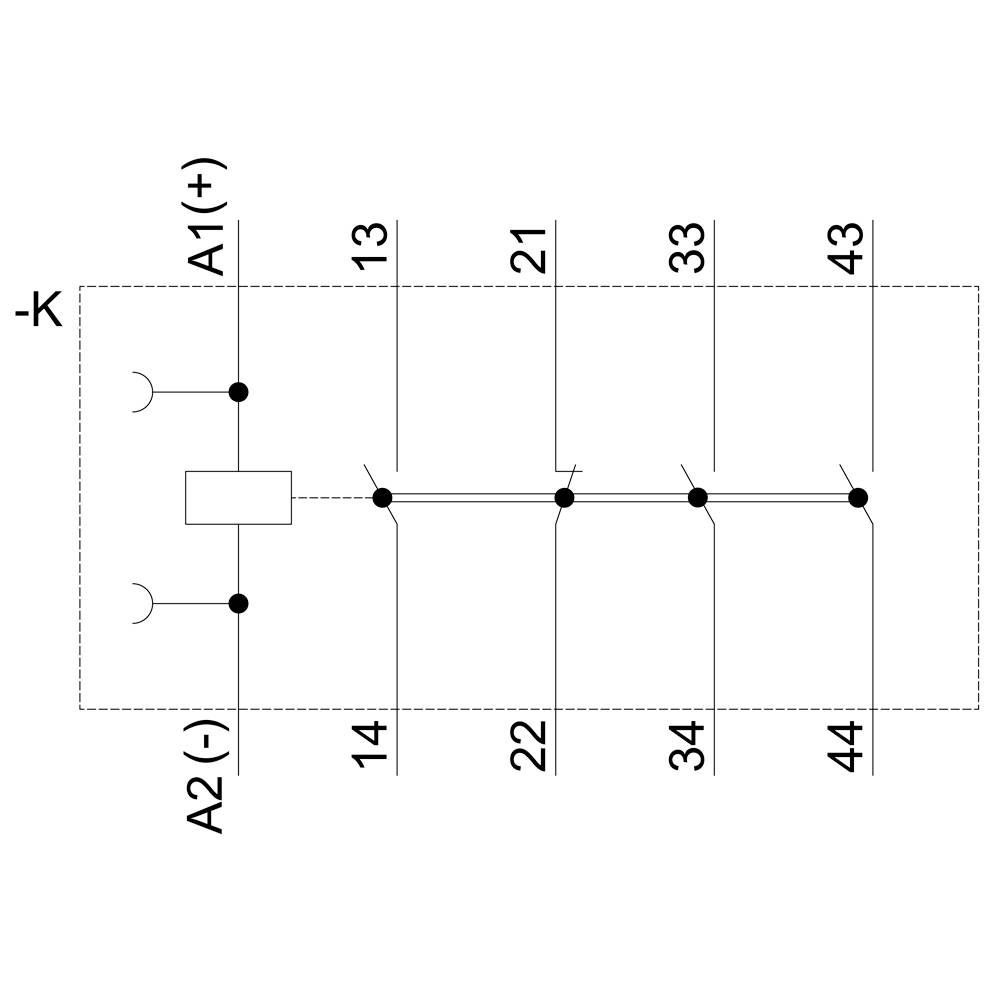

Circuit diagram shows a relay block with contacts at A1, A2 and terminals 13, 14, 21, 22, 33, 34, 43, 44. Relay and coil depicted.

Technical drawing of a relay: Front, side, and top views with dimensional measurements in millimetres for precise installation.

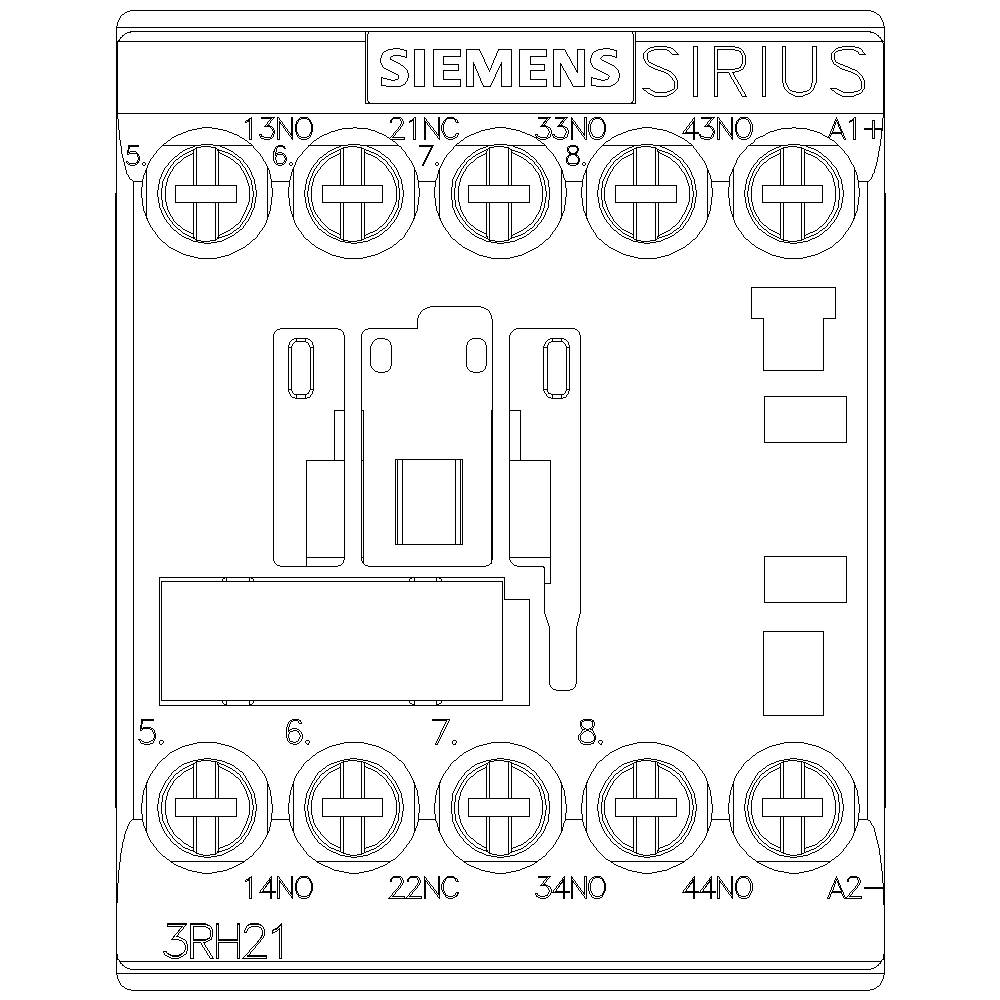

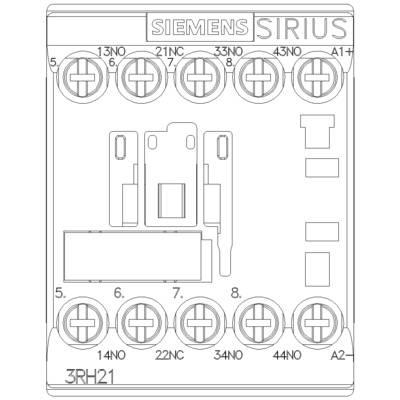

Electrical control device front view with connections. Top: 13NC, 21NC, 33NO, 43NO, A1+. Bottom: 14NO, 22NC, 34NO, A2-. Label: 'SIEMENS SIRIUS'.

1/6

Image similar

Product type

Auxiliary contactor

Type

3RH2131-1BE40

Type

S00

Auxiliary contact type

1 breaker

3 makers

Control voltage range

Datasheet (PDF)

Siemens

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 55.45 / piece)

€

Report legal concerns

Technical specifications

Type of voltage: DC

Product type: Auxiliary contactor

Type: 3RH2131-1BE40

Type: S00

Auxiliary contact type: 1 breaker
3 makers

Control voltage range

Mounting type: Snap-in
Screw-fit

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 57.5 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 57.5 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 3

: 1

: 3 A

: Screw connection

: DC

Documents & Downloads

Datasheet

Datasheet 1736381 Siemens 3RH2131-1BE40 Auxiliary contactor 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1736381 Siemens 3RH2131-1BE40 Auxiliary contactor 1 pc(s)

Description

Coupling contactor relay, 3 NO + 1 NC, 24 V DC, 0.85 ... 1.85* US, with varistor plugged on, Size S00, screw terminal

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.

Frequently Bought Together

(^*All information is plus legal VAT)

Siemens 3RH2131-1BE40 Auxiliary contactor 1 pc(s)

Siemens 3RH2131-1BE40 Auxiliary contactor 1 pc(s)

Conrad Electronic

Siemens 3RH2911-1HA31 Auxiliary switch module 1 pc(s)

Siemens 3RH2911-1HA31 Auxiliary switch module 1 pc(s)

Conrad Electronic

Total price:

€ 78.13^*

What kind of Contactors are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

Siemens 3RH2911-1HA31 Auxiliary switch module 1 pc(s)

Siemens 3RH2911-1HA31 Auxiliary switch module 1 pc(s)

Conrad Electronic

Siemens 3RH2131-1JB40 Auxiliary coupling relay 1 pc(s)

Siemens 3RH2131-1JB40 Auxiliary coupling relay 1 pc(s)

Conrad Electronic

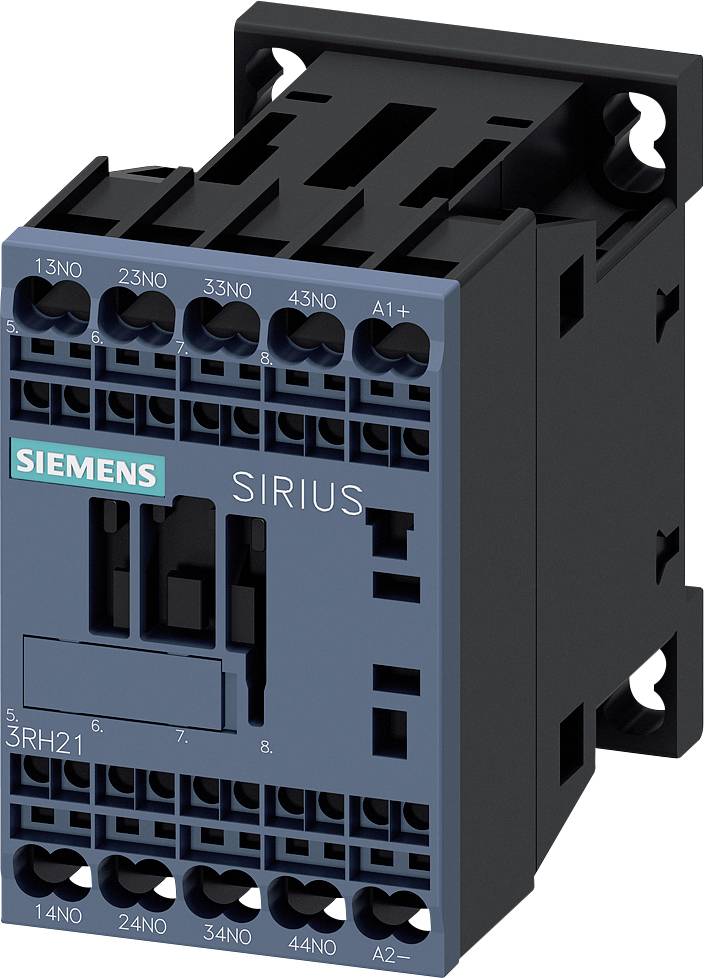

Siemens 3RH2140-2FB40 Auxiliary contactor 1 pc(s)
