Buy Siemens 3RH2131-2BE40 Auxiliary contactor 3 makers, 1 breaker Piece 1 pc(s)

A Siemens SIRIUS contactor, an electrical switching device, is depicted. Its purpose is to control and switch electrical motors.

Image similar

An open electrical cabinet with various electrical components and wiring, organised across multiple shelves.

'Circuit diagrams of auxiliary contactors and accessories: single-pole and double-pole auxiliary contacts, LED indication, surge protection, function module.'

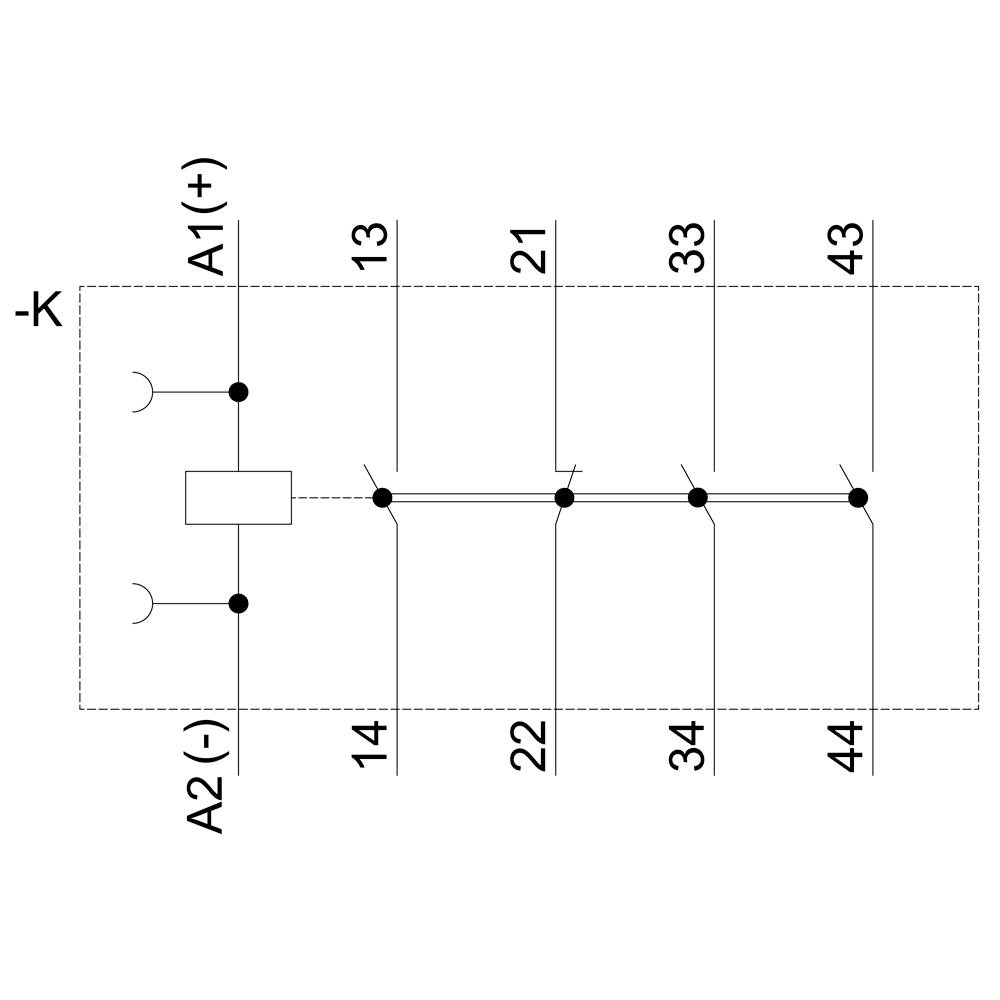

'Circuit diagram of a relay module: Six connection points with numbered contacts. Representation of electrical connections.'

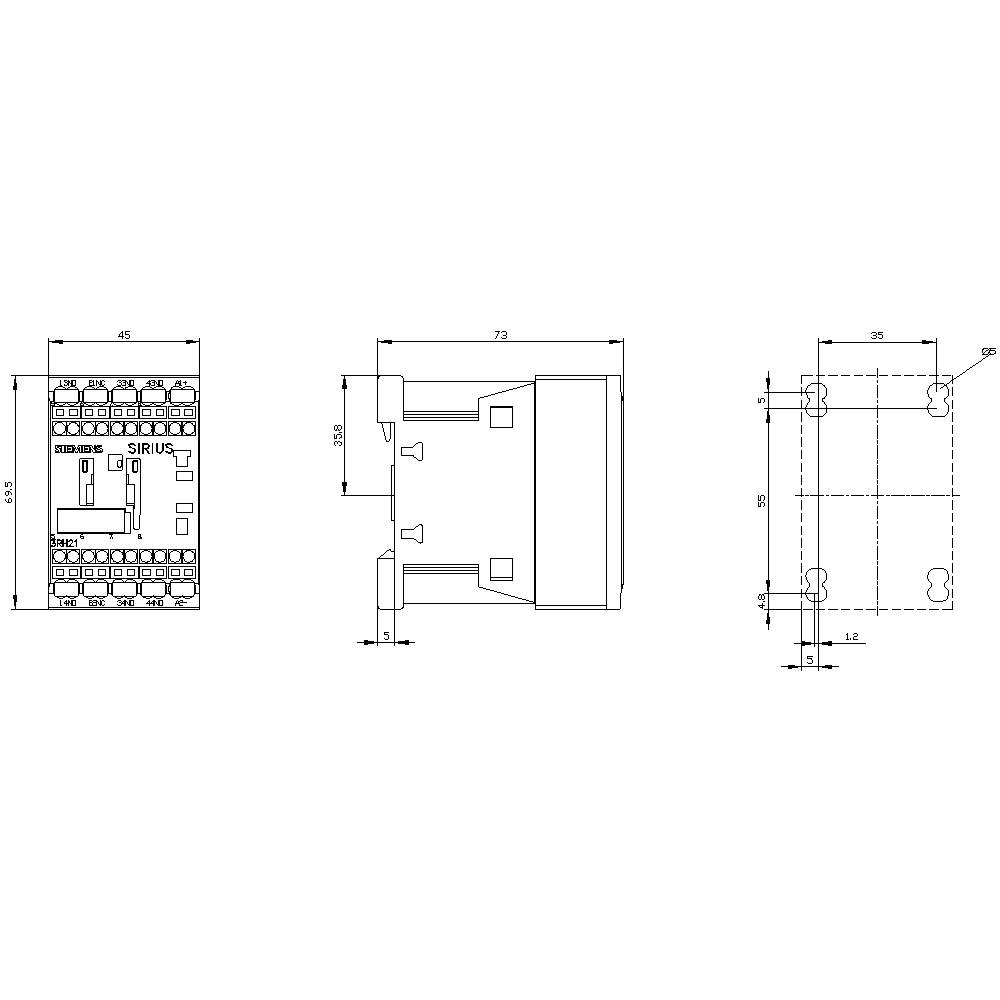

Technical drawing of an electrical component with front, side, and top views, including dimensions in millimetres.

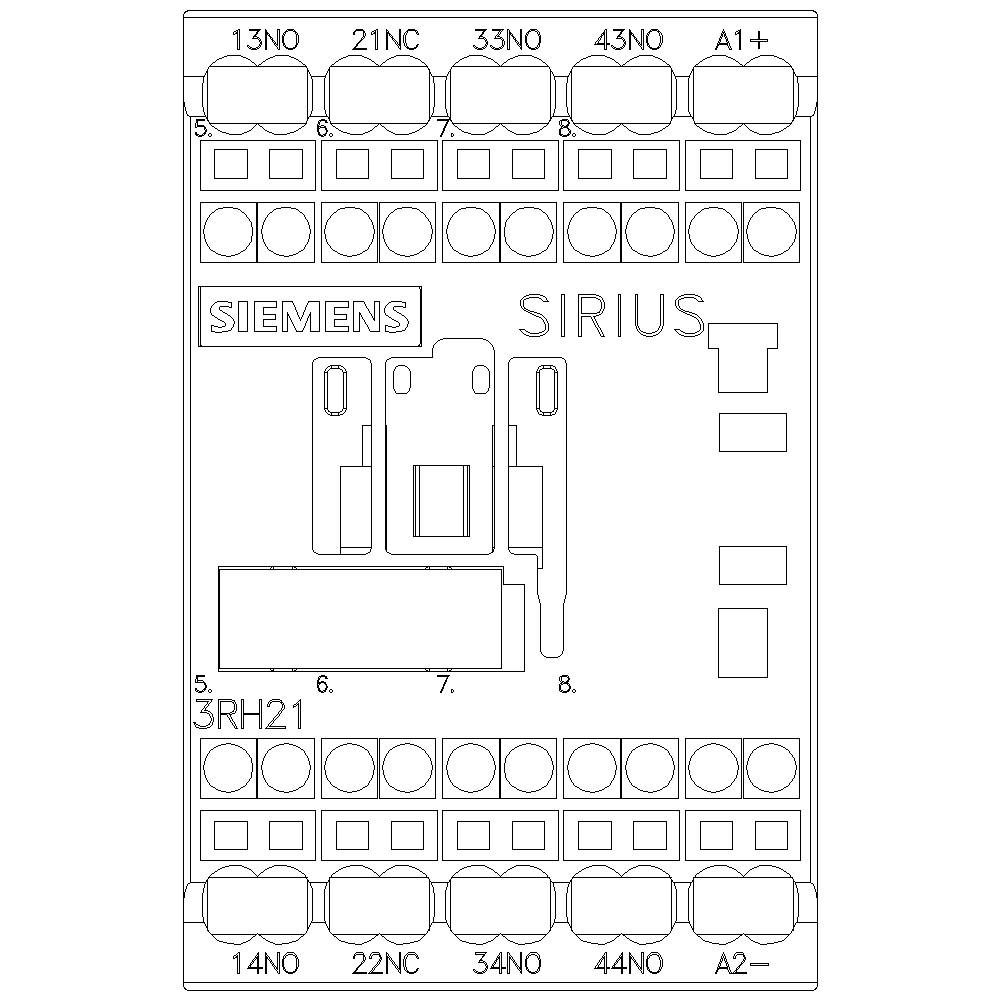

Terminal diagram of a Siemens Sirius relay module with connections, labelled '3RH21', 'SIEMENS', '14NO', '22NC', '34NO', '43NC', 'A1+', 'A2-'.

1/6

Image similar

Product type

Auxiliary contactor

No. of pins

4-pin

Connection

Spring-loaded connector

Packaging type

Piece

Type

3RH2131-2BE40

Datasheet (PDF)

Dispatches on Mon, 5 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 38.65 / piece)

€ 38.65

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

CURRENT MON. S00 BASIC 24-240V UC SCREW

Our service for you

Technical specifications

Type of voltage: DC

Packaging type: Piece

Product type: Auxiliary contactor

Type: 3RH2131-2BE40

Type: S00

No. of pins: 4-pin

Contact type: 3 makers
1 breaker

Auxiliary contact type: 1 breaker
3 makers

Control voltage (max.): 60 V DC

Control voltage range: 60 V DC (max)

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 70 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 70 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 3

: 1

: 3 A

: Spring clamp connection

: DC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1750444 Siemens 3RH2131-2BE40 Auxiliary contactor 3 makers, 1 breaker Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1750444 Siemens 3RH2131-2BE40 Auxiliary contactor 3 makers, 1 breaker Piece 1 pc(s)

Description

Monitoring relay, can be mounted to Contactor 3RT2, Size S00 basic, analog adjustment Apparent current monitoring 1.6-16 A, 20-400 Hz, 2-phase Supply 24-240 V AC/DC 1 change-over contact Monitoring for Current overshoot and undershoot Phase failure, Cable break with or without fault buffer ON delay 0-60 s Noise pulse suppression 0-30 s Switching hysteresis 6% Screw connection system
