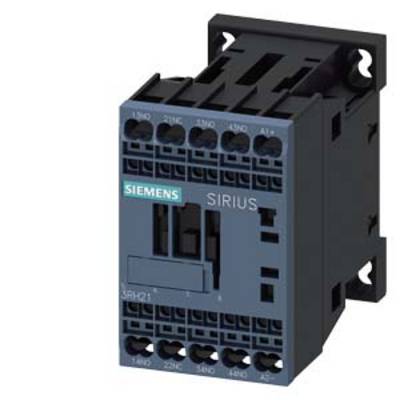

Buy Siemens 3RH2131-2XF40-0LA2 Auxiliary contactor + varistor Compatible with (relay brand): Siemens Piece 1 pc(s)

Image similar

Server rack with open doors, filled with network hardware, cables, and circuits for optimising data processing.

Diagram shows various auxiliary protection devices, adapters and accessories for electrical installations. Numbered legend explains the function of the components.

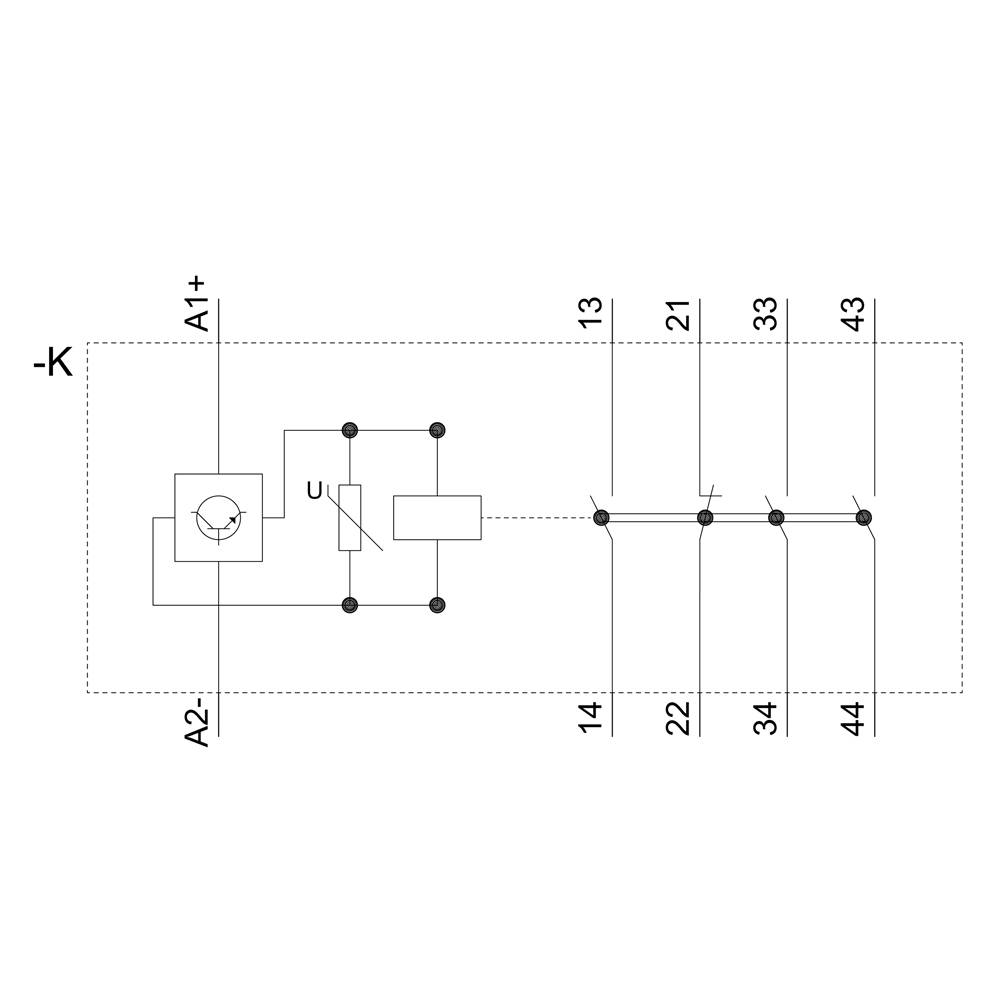

Circuit diagram of an electrical relay with coil and switching contacts, marked as A1+, A2-, 13, 14, 21, 22, 33, 34, 43, 44.

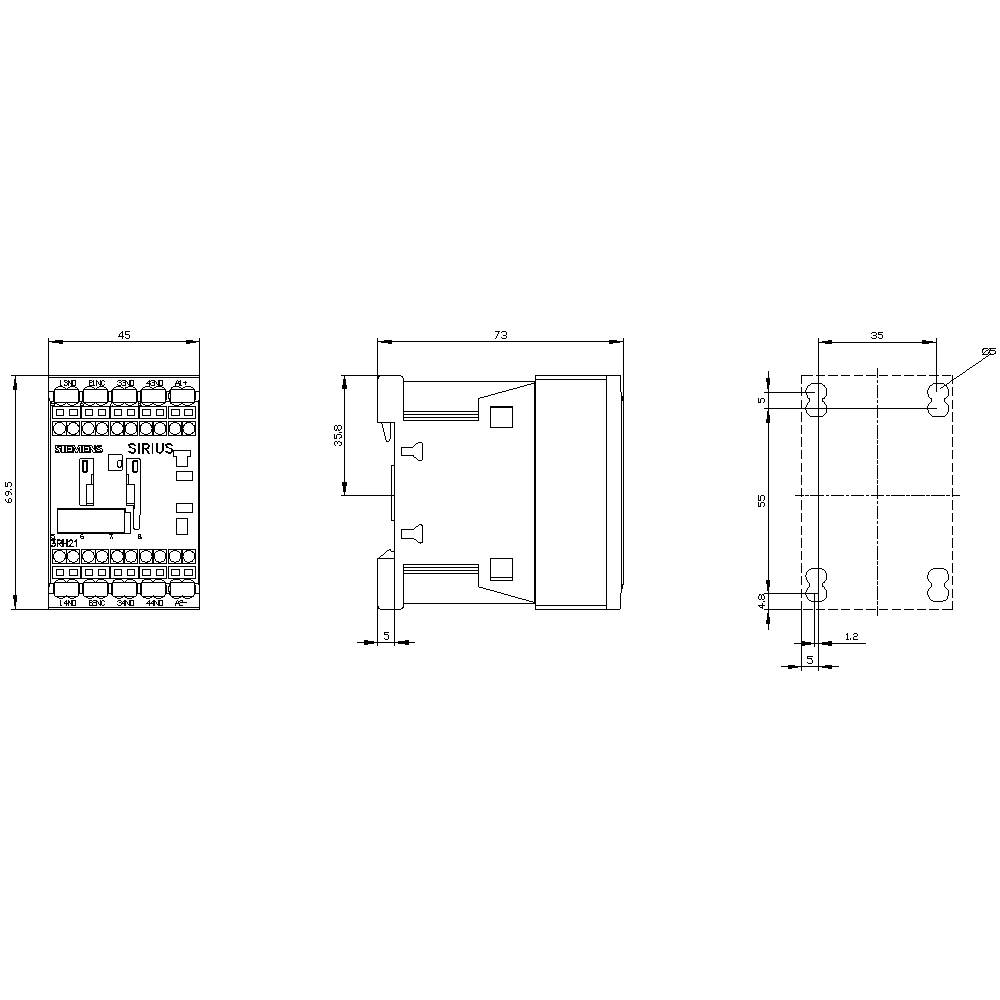

Technical drawing of a Siemens SIRIUS component with dimensions. Front and side views show details and connection points.

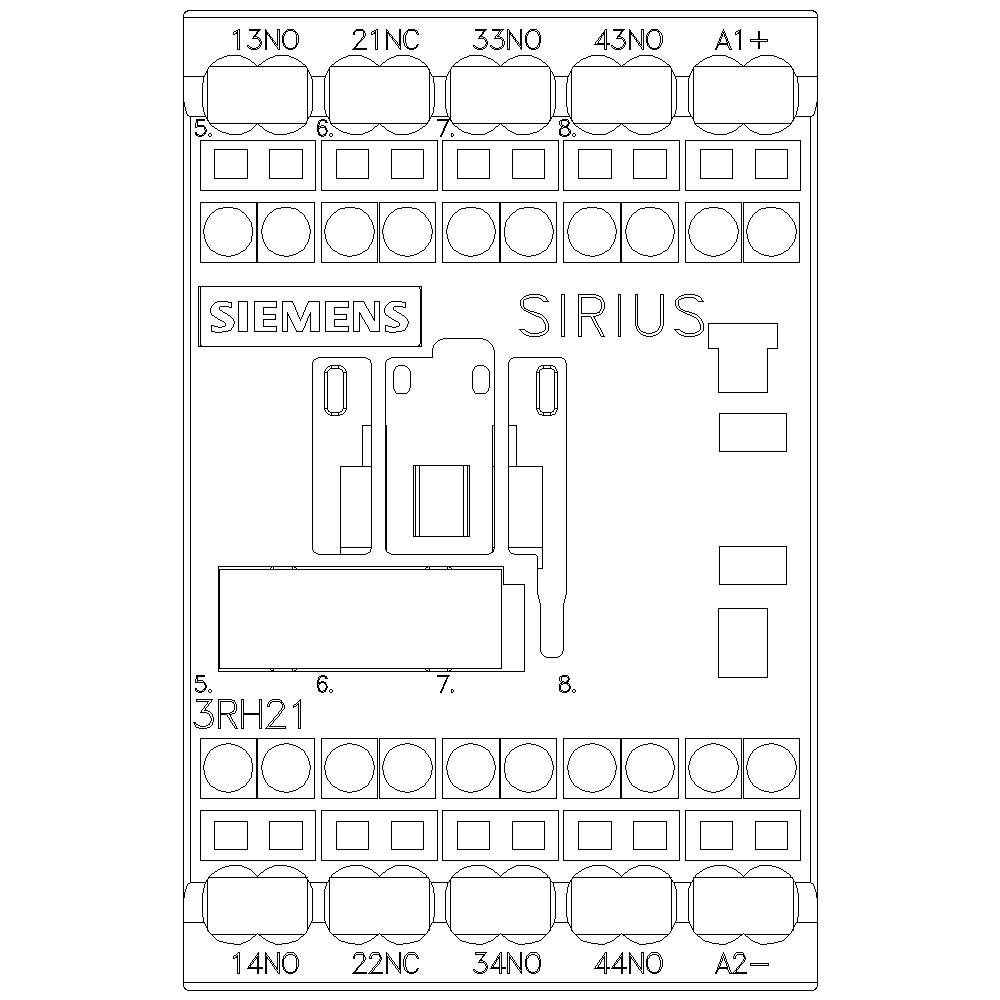

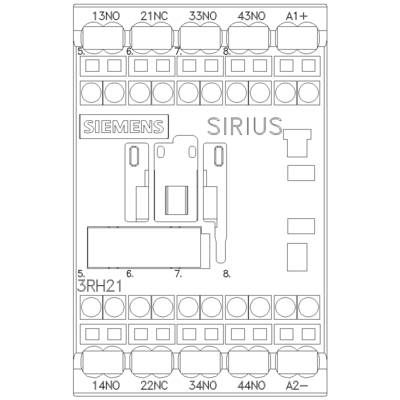

'Siemens SIRIUS 3RH21' circuit diagram with connections and numbering for electrical circuits, for wiring relays.

1/6

Image similar

Product type

Auxiliary contactor

No. of pins

4-pin

Connection

Spring-loaded connector

Packaging type

Piece

Type

3RH2131-2XF40-0LA2

Datasheet (PDF)

Dispatches on Tue, 29 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Switch disconnector 3LD3, main switch

Our service for you

Technical specifications

Type of voltage: DC

Packaging type: Piece

Product type: Auxiliary contactor

Type: 3RH2131-2XF40-0LA2

Type: S00

No. of pins: 4-pin

Auxiliary contact type: 1 breaker
3 makers

Control voltage (min.): 72 V DC

Control voltage (max.): 125 V DC

Control voltage range: 72 - 125 V DC

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + varistor

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 3000 0000

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 70 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 70 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 3

: 1

: 3 A

: Spring clamp connection

: DC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1741253 Siemens 3RH2131-2XF40-0LA2 Auxiliary contactor + varistor Compatible with (relay brand): Siemens Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1741253 Siemens 3RH2131-2XF40-0LA2 Auxiliary contactor + varistor Compatible with (relay brand): Siemens Piece 1 pc(s)

Description

Load disconnector 3LD3, Iu 40 A Main switch 3-pole Rated operating capacity at AC-23 A at 400 V 15.0 kW Front plate mounting Basic switch with Central hole mounting 22.5mm Toggle drive red / yellow 48x48 mm with auxiliary switch 1OE + 1S The 3LD main and emergency off switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD3 disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD3 are also ideal for control panels, in particular for applications in small machines (for example saws, compressors, pumps, concrete mixers, drills, mills, and woodworking machinery) Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile thanks to local approvals. 3. One mechanical size for five electrical sizes. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 63 A with lockable rotary operating mechanism. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
