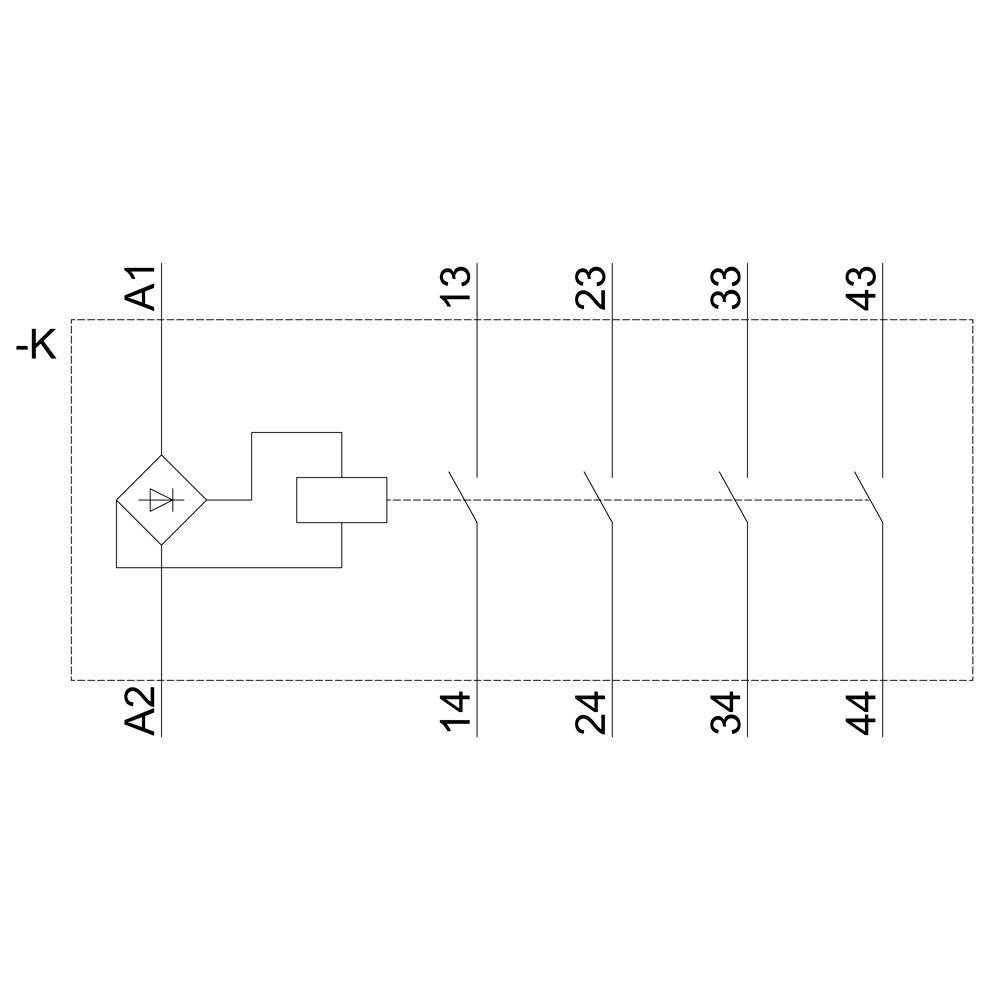

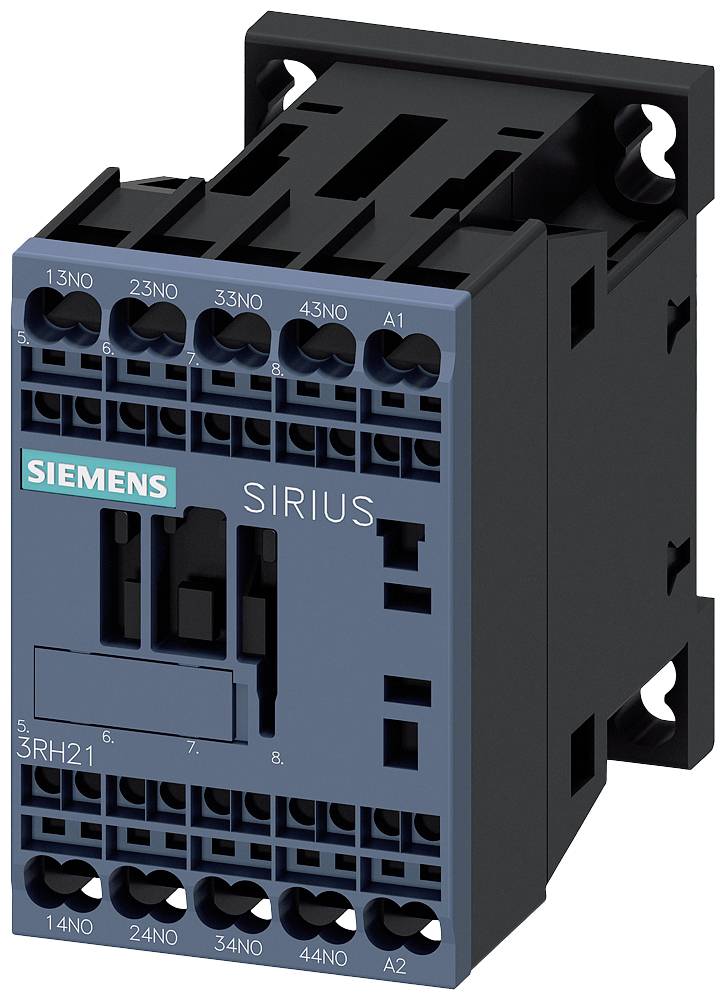

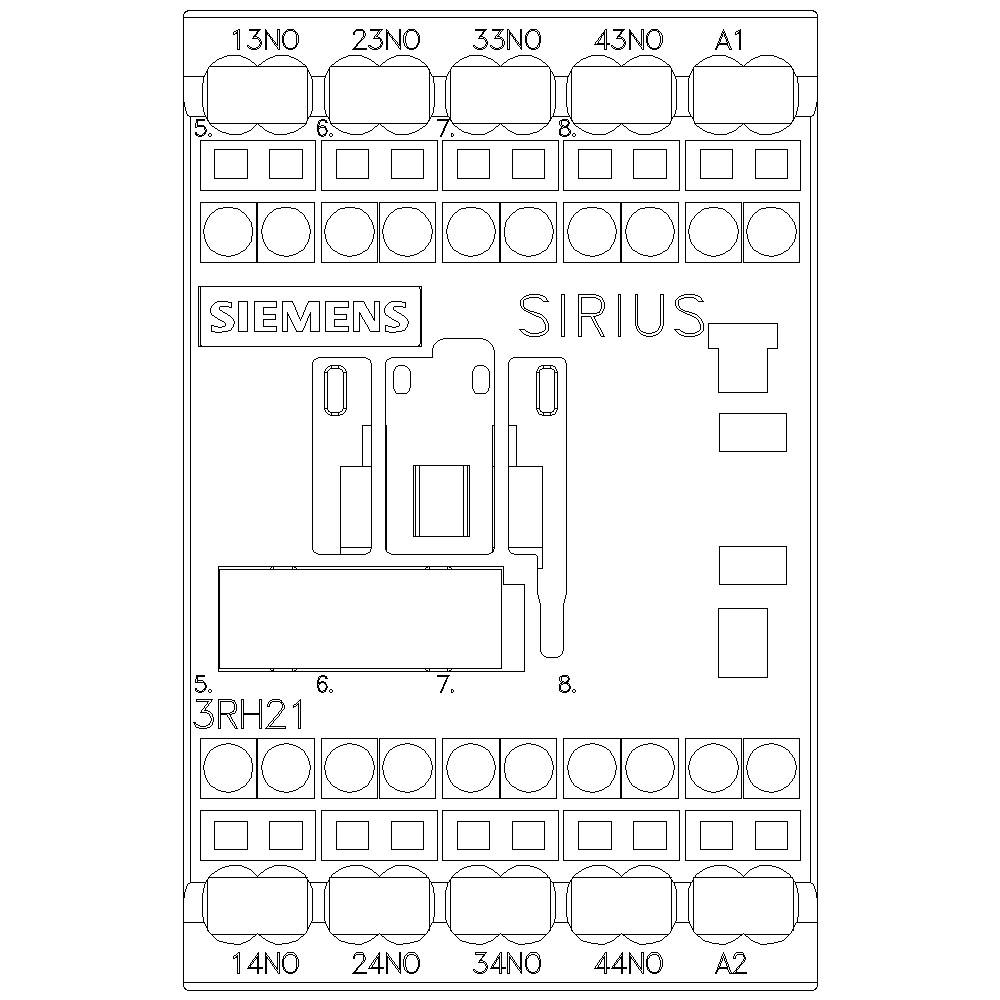

Siemens 3RH2140-2GG20 Auxiliary contactor 4 makers + diode bridge Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
No. of pins
4-pin
Connection
Spring-loaded connector
Packaging type
Piece
Type
3RH2140-2GG20
Datasheet (PDF)
Number
Total (€ 42.01 / piece)
€ 42.01
plus VAT.
14-day return policy included
Highlights & Details
CONT.RELAY,4NO+4NC,DC24V
Our service for you
Technical specifications
- Type of voltage: AC
- Packaging type
Piece
- Product type
Auxiliary contactor
- Type
3RH2140-2GG20
- Type
S00
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (max.)
110 V AC
- Control voltage range
110 V AC (max)
- Features
+ diode bridge
- Mounting type
Snap-in
Screw-fit
- Connection
Spring-loaded connector
- Durability
3000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
45 mm
- Height
70 mm
- Depth
73 mm
- Dim
(W x H x D) 45 x 70 x 73 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
4
3 A
Spring clamp connection
AC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1742391 Siemens 3RH2140-2GG20 Auxiliary contactor 4 makers + diode bridge Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1742391 Siemens 3RH2140-2GG20 Auxiliary contactor 4 makers + diode bridge Piece 1 pc(s)
Description
Contactor relay, 4 NO + 4 NC, 24 V DC, Size S00, spring-type terminal, Captive auxiliary switch, for SUVA applications
Hints
Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
