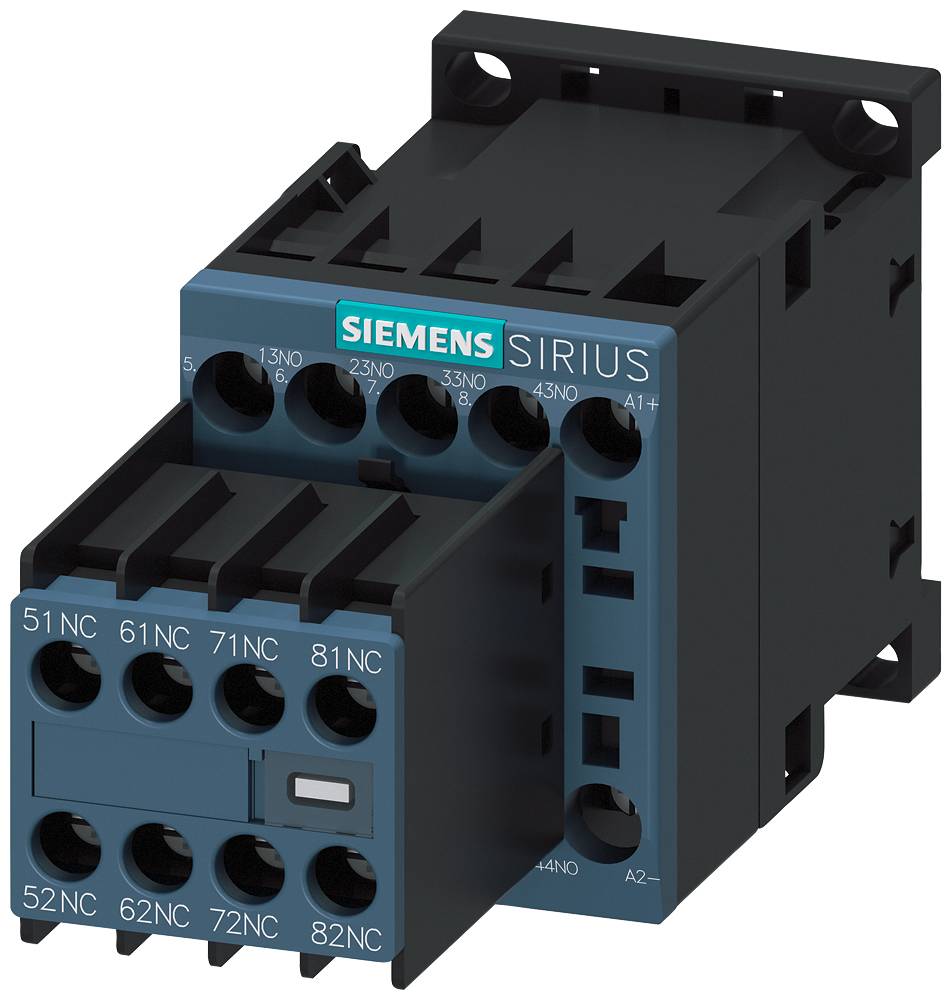

Siemens 3RH2344-1BG40 Auxiliary contactor 4 breakers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
No. of pins
4-pin
Type
3RH2344-1BG40
Type
S00
Contact type
4 breakers
Datasheet (PDF)
Highlights & Details
Auxiliary contactor, 4S+4NC, DC 125V, S00, screw connection
Our service for you
Technical specifications
- Product type
Auxiliary contactor
- Type
3RH2344-1BG40
- Type
S00
- No. of pins
4-pin
- Contact type
4 breakers
- Auxiliary contact type
4 breakers
- Control voltage (max.)
125 V DC
- Control voltage range
125 V DC (max)
- Content
1 pc(s)
- RoHS-compliant
Yes
4
4
3 A
Screw connection
DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2871648 Siemens 3RH2344-1BG40 Auxiliary contactor 4 breakers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2871648 Siemens 3RH2344-1BG40 Auxiliary contactor 4 breakers 1 pc(s)
Description
Auxiliary contactor with auxiliary switch DC 125 V size S00, screw terminal, 4 Ö basic unit / DIN EN SIRIUS 3RH2 auxiliary contactor for switching the control signals in the control circuit.
The SIRIUS 3RH2 contactor relays have standard connection designations and reliable and time-saving connection technology. The simultaneous switching of several auxiliary circuits is possible through output multiplication. All contacts are also available as SUVA variants with positive guidance for safety applications. The auxiliary contactors are climate-proof, have a high contact reliability and are suitable for worldwide use with the corresponding approvals (e.g. IEC AND UL/CSA).
They are available in AC or DC operation and are available with screw or spring-type tension technology. The basic version of the auxiliary contactor is 4 pole and can be expanded to 8 pole by snap-on auxiliary switch.
The extensive accessories of 3RT2 contactors for sizes S00 to S3 can also be used for 3RH2 contactor relays.
3RH2 contactor relays replace the tried and tested 3RH1 series.
Simple, efficient, always up-to-date - the SIRIUS modular system.
