Siemens 3RH2431-1AB00 Auxiliary contactor Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
No. of pins
4-pin
Packaging type
Piece
Type
3RH2431-1AB00
Type
S00
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
CONTACTOR RELAY LATCHED,3NO+1NC,110VDC
Our service for you
Technical specifications
- Type of voltage: AC
- Packaging type
Piece
- Product type
Auxiliary contactor
- Type
3RH2431-1AB00
- Type
S00
- No. of pins
4-pin
- Auxiliary contact type
1 breaker
3 makers
- Control voltage (min.)
24 V AC
- Control voltage (max.)
24 V AC
- Control voltage range
24 - 24 V AC
- Mounting type
Snap-in
Screw-fit
- Durability
5000000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C

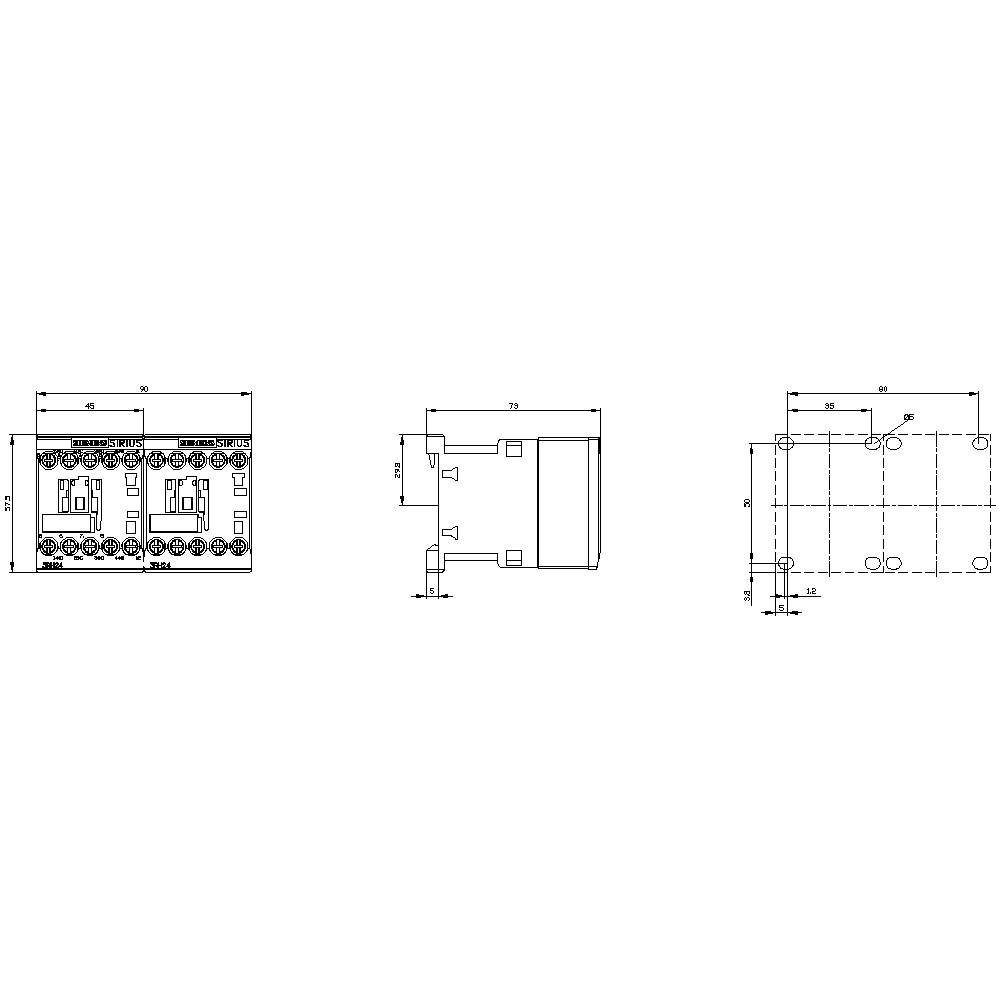

- Width
90 mm
- Height
57.5 mm
- Depth
73 mm
- Dim
(W x H x D) 90 x 57.5 x 73 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
3
1
3 A
Screw connection
AC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1699064 Siemens 3RH2431-1AB00 Auxiliary contactor Piece 1 pc(s)
Datasheet 1699064 Siemens 3RH2431-1AB00 Auxiliary contactor Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1699064 Siemens 3RH2431-1AB00 Auxiliary contactor Piece 1 pc(s)
Description
Contactor relay, latched, 3 NO + 1 NC, 110 V DC, Size S00, screw terminal
Hints
Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
