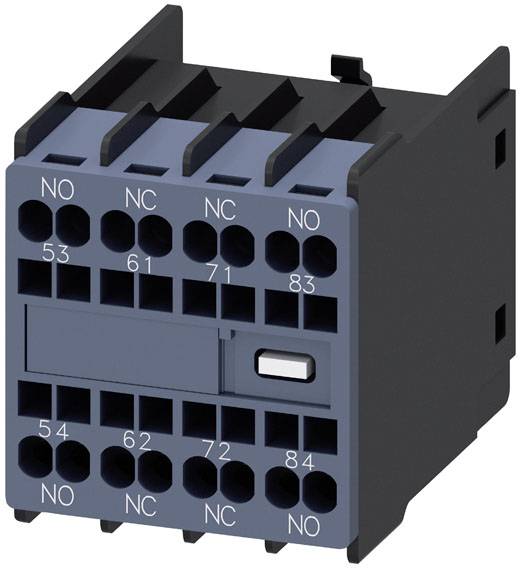

Siemens 3RH2911-2GA22 Auxiliary switch Instant response + auxiliary contact Compatible with (relay brand): Siemens Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product design: Snap-on front on auxiliary switch 3RH21440/3RH2440Product function / forced management: YesProduct function / forced guidance, note: With 3RH2Application area: For expansion of auxiliary contacts in the control circuitSuitability for use: Auxiliary contactorSurge voltage resistance: 6 kVType of connectable wire cross-sections / with AWG lines / for auxiliary contacts: 2x (20 ... 14)Type of connectable conductor cross-sections / for auxiliary contacts / single-wire or multi-wired: 2x (0.5 ... 2.5 mm²Type of connectable conductor cross-sections / for auxiliary contacts / fine-wired / with wire-end processing: 2x (0.5 ... 1.5 mm²Type of connectable conductor cross-sections / for auxiliary contacts / fine-wired / without wire-end processing: 2x (0.5 ... 2.5 mm²Connectable wire cross-section / for auxiliary contacts / fine-wired / with wire-end processing / maximum: 2.5 mm²

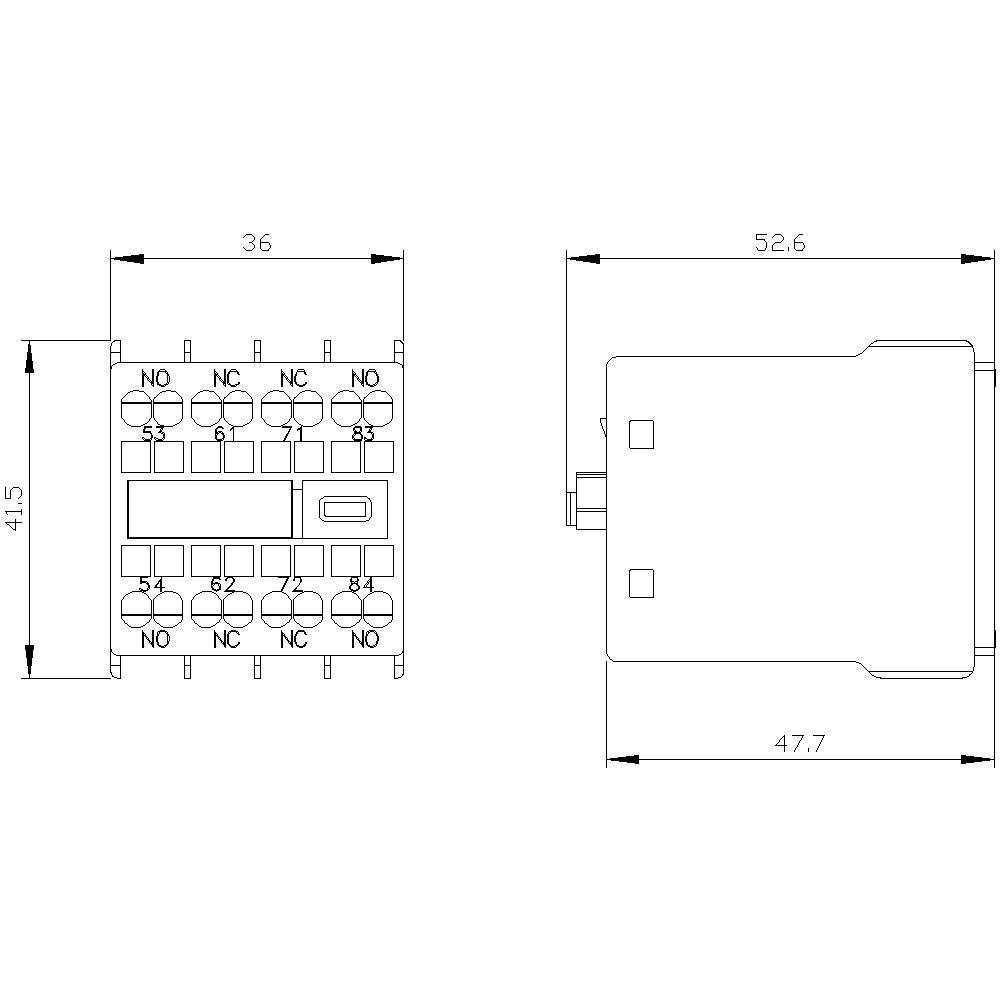

- Depth
47.7 mm
- Height
41.5 mm
- Width
36 mm
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
IP20
- Auxiliary contact type
2 makers
2 breakers
- Type
S00
- Connection
Spring-loaded connector
- Packaging type
Piece
- Mounting type
Snap-in
- Features
+ auxiliary contact
- Switching type
Instant response
- Durability
10000000
- Electrical lifespan
200000
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2862289 Siemens 3RH2911-2GA22 Auxiliary switch Instant response + auxiliary contact Compatible with (relay brand): Siemens Piece
User & Safety Instructions
User & Safety Instructions 2862289 Siemens 3RH2911-2GA22 Auxiliary switch Instant response + auxiliary contact Compatible with (relay brand): Siemens Piece
Description

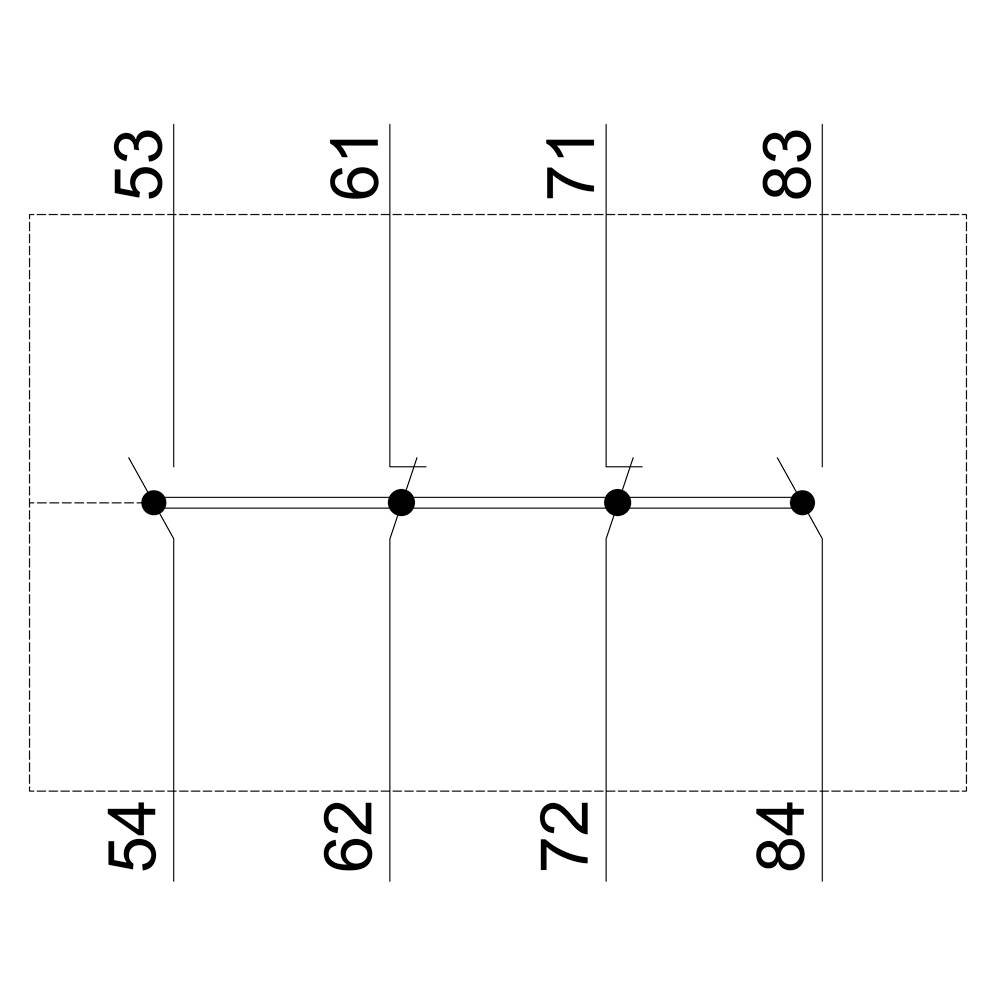

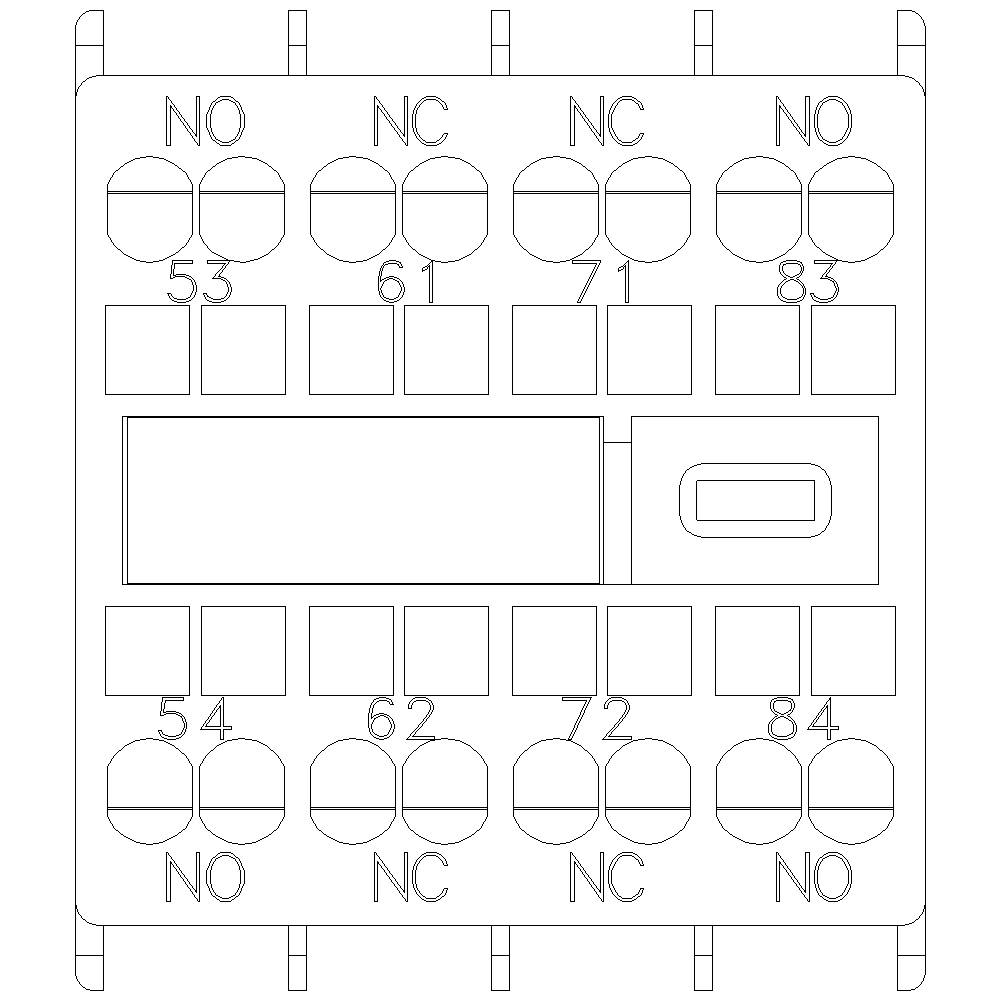

Auxiliary switch on the front, 2 NO + 2 NC Current track 1 S, 1 NC, 1 NC, 1 S for contactor sizes S00 Spring connection 53/54 , 61/62 , 71/72 , 83/84 physically coded - only with 3RH21440* and 3RH2440* Hicontactors (according to EN 50011) SIRIUS 3RH29 Auxiliary switch for expansion of the auxiliary contacts in the control circuit.The 3RH29 front-side auxiliary switches can be mounted on the 3RT2 contactors and 3RH2 contactor relays without any size tools.The 3RH19/3RH29 auxiliary switches are available as front-side or side-mountable variants, with up to four instantaneous switching or up to two leading-edge closing contacts and NC contacts. The auxiliary switches can be designed as positively-driven contact elements in 3RH auxiliary contactors or as mirror contacts in 3RT power contactors. They are available throughout with screw connection and spring connection.Simple, efficient, always up-to-date - the SIRIUS modular system.
