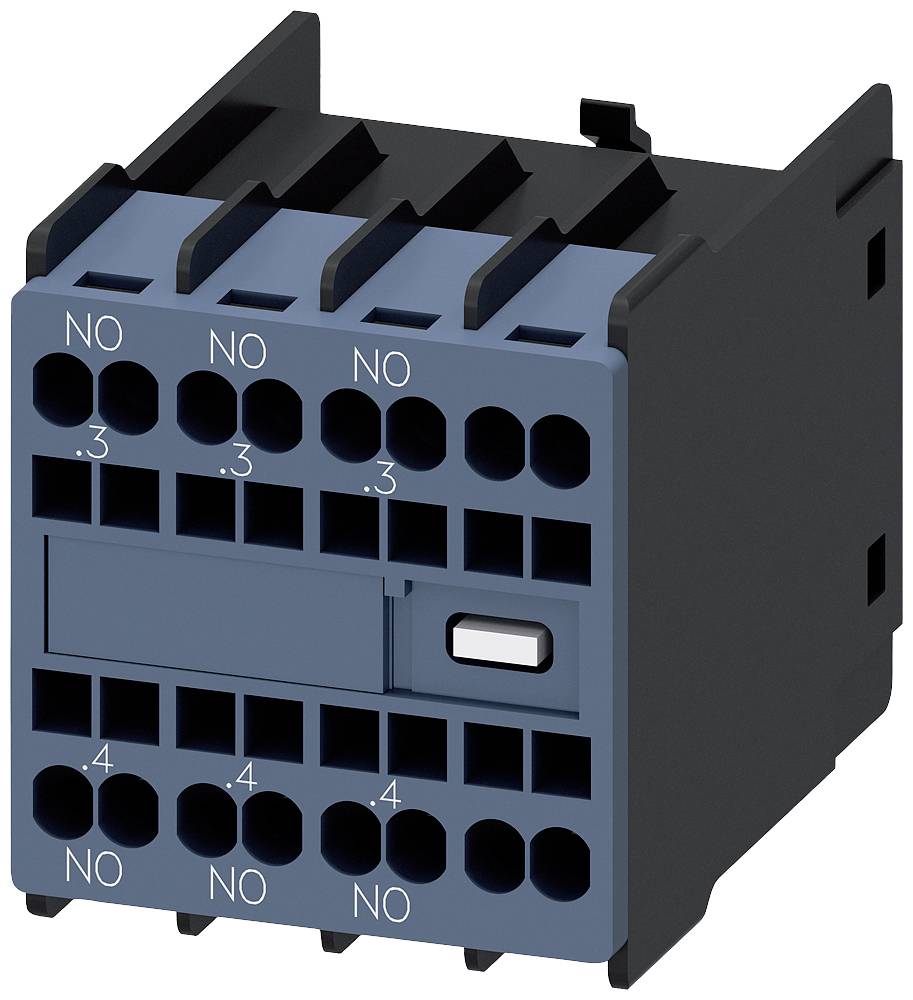

Siemens 3RH2911-2HA30 Auxiliary switch module Instant response 3 makers Compatible with (relay brand): Siemens Piece 1 p
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
Connection
Spring-loaded connector
Packaging type
Piece
Type
3RH2911-2HA30
Switching type
Instant response
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Technical specifications
- Size: S00, S0, S2, S3
- Packaging type
Piece
- Product type
Auxiliary switch module
- Type
3RH2911-2HA30
- Switching type
Instant response
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Mounting type
Snap-in
- Connection
Spring-loaded connector
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C

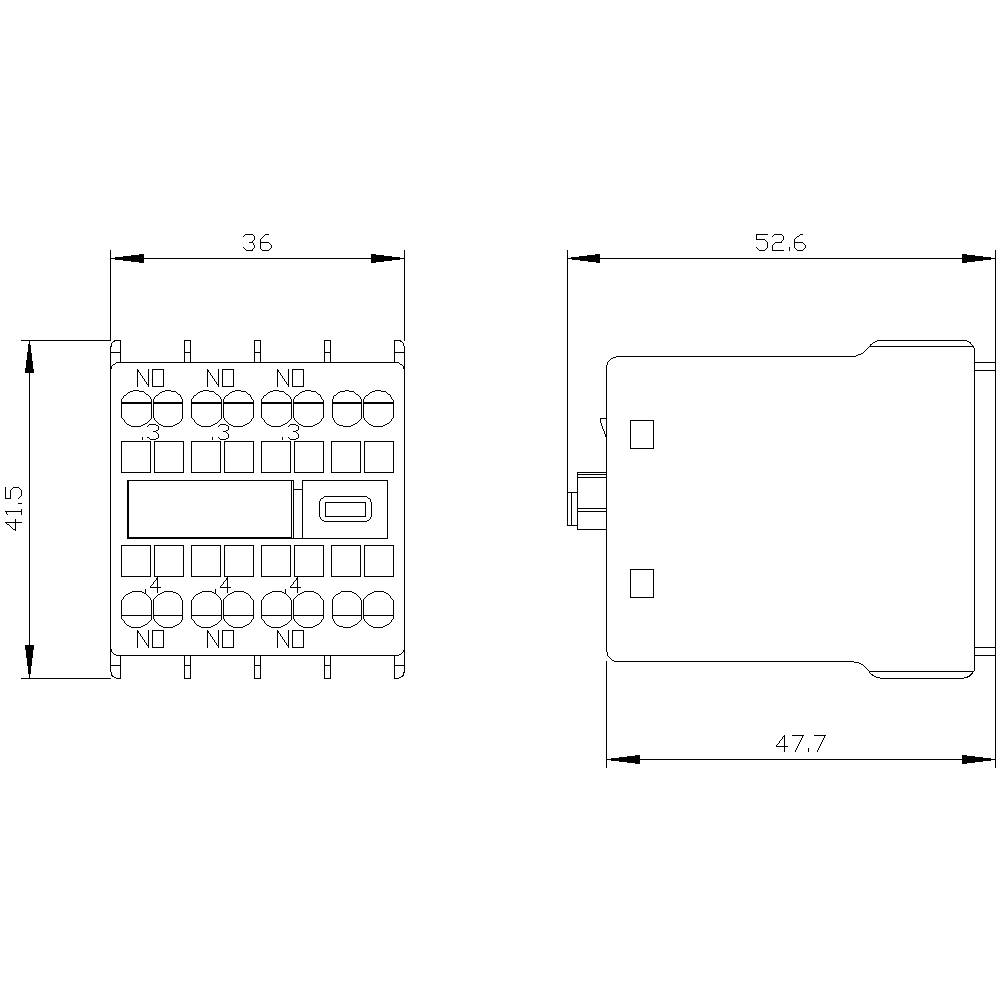

- Width
36 mm
- Height
41.5 mm
- Depth
47.7 mm
- Dim
(W x H x D) 36 x 41.5 x 47.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
Top mounting
None
6 A
Spring clamp connection
0
0
3
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1699251 Siemens 3RH2911-2HA30 Auxiliary switch module Instant response 3 makers Compatible with (relay brand): Siemens Piece 1 p
User & Safety Instructions
User & Safety Instructions 1699251 Siemens 3RH2911-2HA30 Auxiliary switch module Instant response 3 makers Compatible with (relay brand): Siemens Piece 1 p
Description
Auxiliary switch on the front, 2 NC Current path 1 NC, 1 NC for 3RH and 3RT Ring cable lug connection .1/.2, .1/.2
Hints
Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
