Siemens 3RH2916-1XA22-0MA0 Auxiliary current switch Compatible with (relay brand): Siemens Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary current switch
Packaging type
Piece
Type
3RH2916-1XA22-0MA0
Compatible with
Siemens
Mounting type
Front
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Auxiliary current switch
- Type
3RH2916-1XA22-0MA0
- Compatible with
Siemens
- Mounting type
Front
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
Top mounting
None
6 A
Screw connection
0
2
2
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2871686 Siemens 3RH2916-1XA22-0MA0 Auxiliary current switch Compatible with (relay brand): Siemens Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2871686 Siemens 3RH2916-1XA22-0MA0 Auxiliary current switch Compatible with (relay brand): Siemens Piece 1 pc(s)
Description

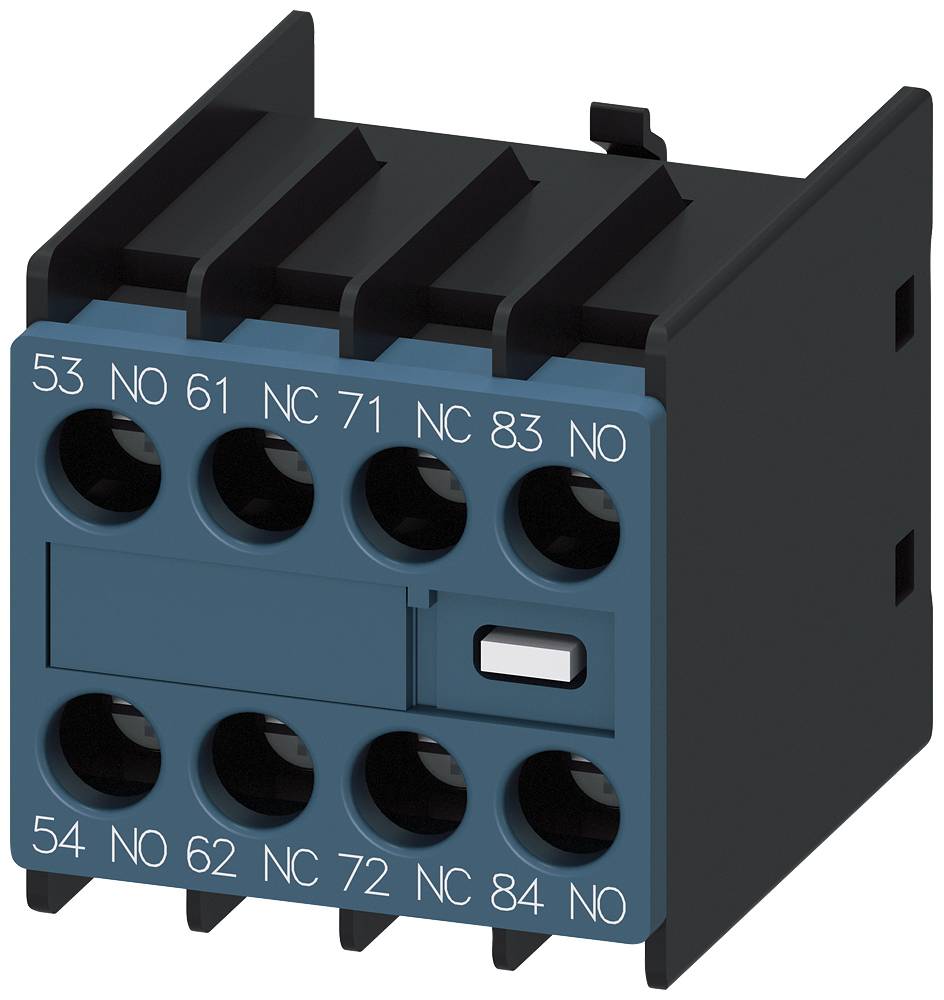

Auxiliary switch on the front, 2 S + 2 Ö Current path 1 S, 1 Ö, 1 Ö, 1 S for 3RH2 and 3RT2 screw terminals 53/54, 61/62, 71/72, 83/84 auxiliary switches SIRIUS 3RH29 for extension of the auxiliary contacts in the control circuit.
The 3RH29 front-side auxiliary switches can be mounted on the 3RT2 contactors and 3RH2 contactor relays without any size tools.
The 3RH19/3RH29 auxiliary switches are available as front-side or side-mountable variants, with up to four instantaneous switching or up to two leading-edge closing contacts and NC contacts. The auxiliary switches can be designed as positively-driven contact elements in 3RH auxiliary contactors or as mirror contacts in 3RT power contactors. They are available throughout with screw connection and spring connection.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
The 3RH29 front-side auxiliary switches can be mounted on the 3RT2 contactors and 3RH2 contactor relays without any size tools.
The 3RH19/3RH29 auxiliary switches are available as front-side or side-mountable variants, with up to four instantaneous switching or up to two leading-edge closing contacts and NC contacts. The auxiliary switches can be designed as positively-driven contact elements in 3RH auxiliary contactors or as mirror contacts in 3RT power contactors. They are available throughout with screw connection and spring connection.
Simple, efficient, always up-to-date - the SIRIUS modular system.
