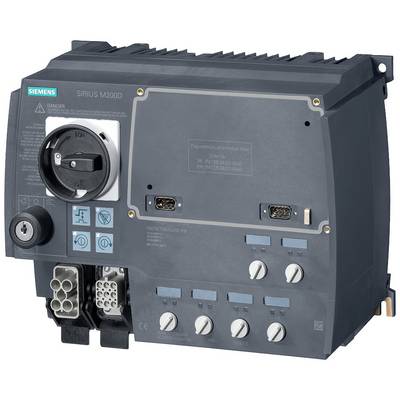

Siemens 3RK1395-6LS41-2AD3 3RK13956LS412AD3 Motor starter Motor power at 400 V 5.5 kW 400 V Nominal current 12 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 878.15 / piece)
€ 878.15
plus VAT.
Technical specifications
- Mounting type: screw fastening
- IP65 rating
- Operating frequency: 50/60 Hz
- Number of pins: 3
- Number of digital inputs: 4
- Product type
Motor starter
- Motor power at 400 V
5.5 kW
- Nominal voltage
400 V
- Type
M12-Bush
- Manufacturer part #
3RK13956LS412AD3
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Type
3RK1395-6LS41-2AD3
- Dim
(W x H x D) 294 x 215 x 148 mm
- Width
294 mm
- Height
215 mm
- Depth
148 mm
- Max. temperature
+55 °C
- Min. temperature
-25 °C
294
215 mm
148 mm
FALSE
5.5 kW
4
0
0
12 A
12
FALSE
IP65
Other
TRUE
Other
Other
DC
3 kW
5.5 kW
12 A
40 °C
50000
50000
50000
12
Class 1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1699070 Siemens 3RK1395-6LS41-2AD3 3RK13956LS412AD3 Motor starter Motor power at 400 V 5.5 kW 400 V Nominal current 12 A
User & Safety Instructions
User & Safety Instructions 1699070 Siemens 3RK1395-6LS41-2AD3 3RK13956LS412AD3 Motor starter Motor power at 400 V 5.5 kW 400 V Nominal current 12 A
Description
SIRIUS motor starter M200D Technology module DOL starter Electronic switching AC-3, 5.5 kW / 400 V 1.5 A...12.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC with brake contact 400 V AC 4 DI / 2 DO Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch via communication module 3RK1305* can be used on PROFIBUS or PROFINET
