Buy Siemens 3RK19011DE221AA0 3RK1901-1DE22-1AA0 Data decoupling module

A three-phase protective relay by Siemens, typically used in electrical installations to monitor and ensure operational safety.

Image similar

Close-up of yellow and green cables plugged into a Siemens device. A screen with digital displays is visible in the background.

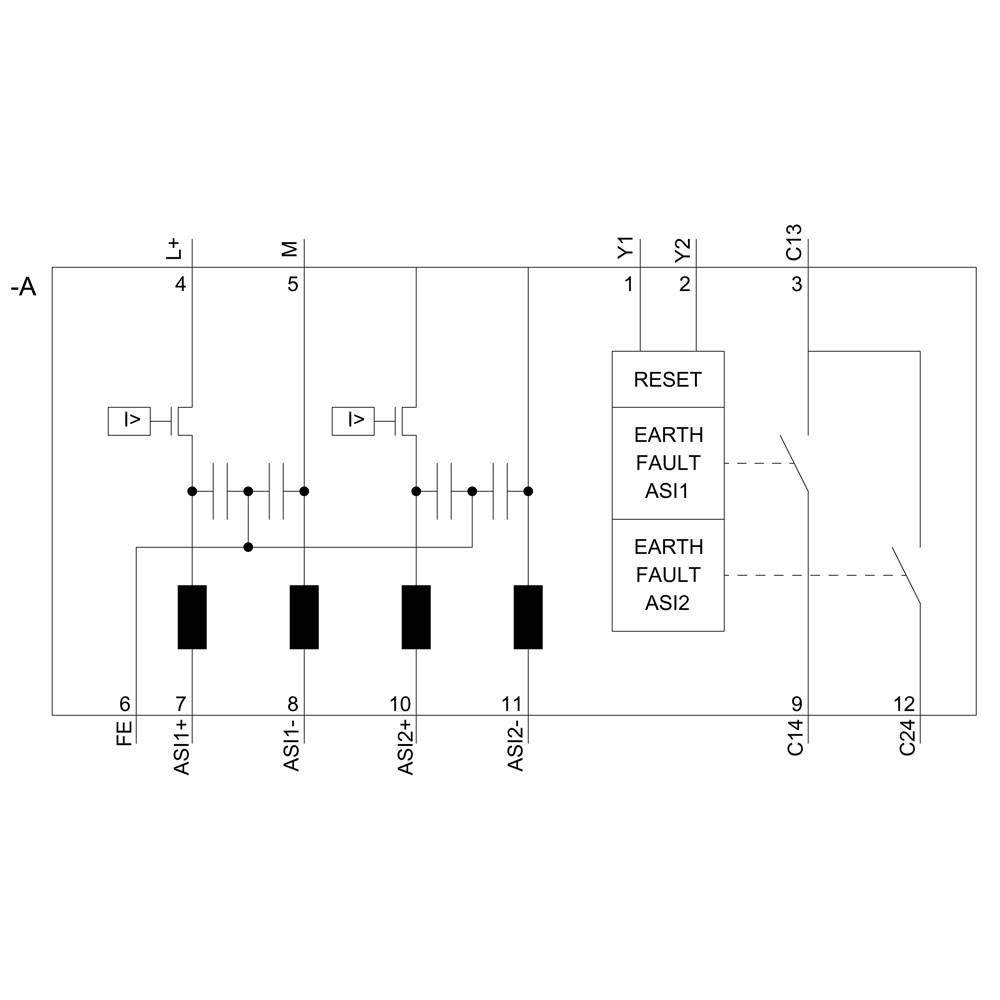

Circuit diagram shows earth fault indicator with two output relays (Y1, Y2) and error indication units for ASI1 and ASI2, with reset function.

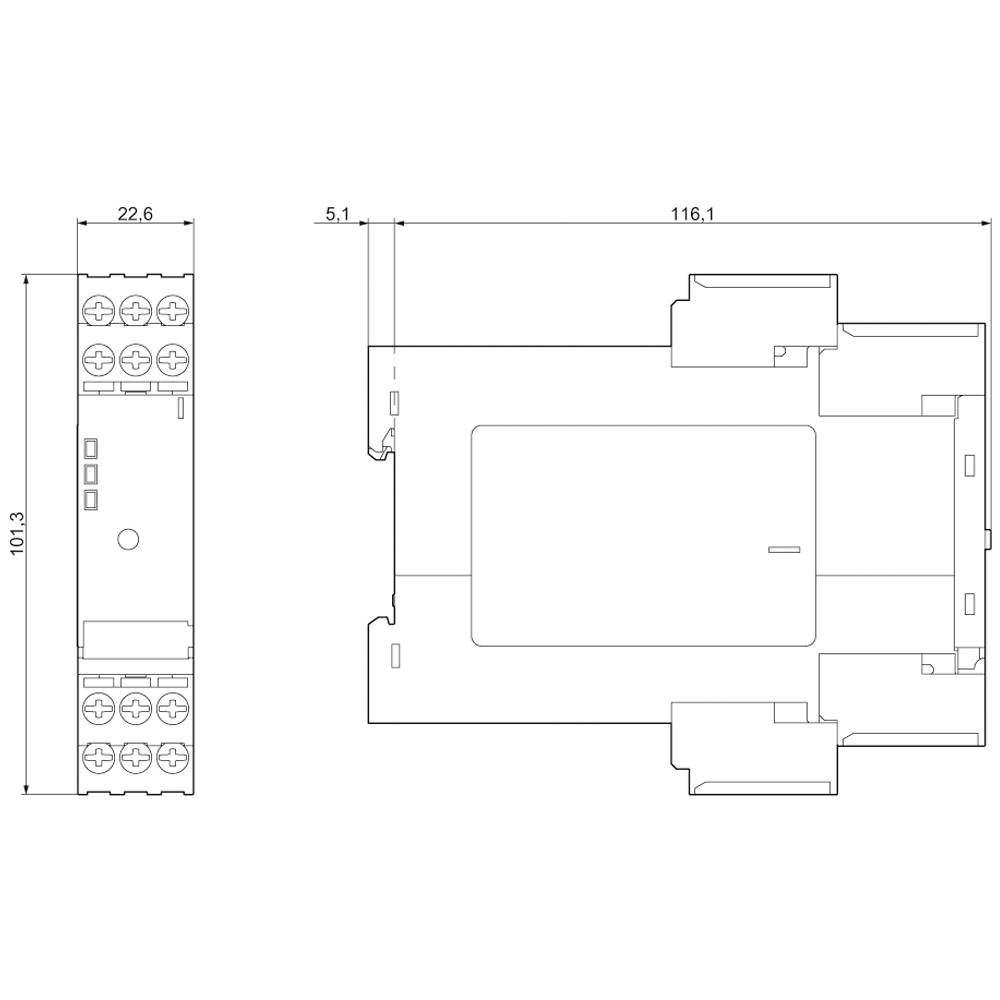

Technical drawing of a rectangular electronic component with dimensions: height 10.3, width 22.6, length 116.1.

1/4

Image similar

Datasheet (PDF)

Dispatches on Wed, 16 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 189.07 / piece)

€ 189.07

plus VAT.

Report legal concerns

Technical specifications

Mechanical life: 1000000
Mounting type: 35 mm DIN rail mounting or wall mounting with push-in lugs
Design of the short-circuit protection: electronically
Output Active power: 240 W

Product type: Data decoupling module

Width: 22.5 mm

Height: 101.3 mm

Depth: 121.2 mm

Type: 3RK1901-1DE22-1AA0

: IP20

Max. ambient temperature: +70 °C

Min. ambient temperature: -25 °C

: 22.5

: 101.3 mm

: 121.2 mm

: TRUE

: DC

: FALSE

: 4 A

: 8.2 A

: DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1760092 Siemens 3RK19011DE221AA0 3RK1901-1DE22-1AA0 Data decoupling module

User & Safety Instructions

User & Safety Instructions 1760092 Siemens 3RK19011DE221AA0 3RK1901-1DE22-1AA0 Data decoupling module

Description

SIMATIC SD memory card 2 GB Secure Digital Card for For devices with corresponding Slot Further information, Quantity and content: see technical data

Siemens 3RK19011DE221AA0 3RK1901-1DE22-1AA0 Data decoupling module
