Buy Siemens 3RK19011DG121AA0 3RK1901-1DG12-1AA0 Data decoupling module

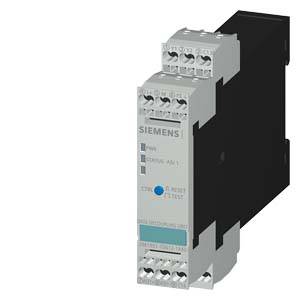

Siemens safety relay in a black housing with multiple terminals and an LED status indicator.

Image similar

Several yellow and green cables are connected to a blue Siemens device, which is part of an industrial control system.

'Electrical circuit diagram shows reset and earth fault mechanism. Main lines L+ and M connect with RESET and EARTH FAULT ASI1.'

Technical Drawing of a Rectangular Component with Dimensions: 104.9mm Height, 22.5mm Width, 116.1mm Length. Front and Side View.

1/4

Image similar

Datasheet (PDF)

Dispatches on Mon, 21 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 142.85 / piece)

€ 142.85

plus VAT.

Report legal concerns

Technical specifications

Mechanical life: 1000000
Mounting type: 35 mm DIN rail mounting or wall mounting with push-in lugs
Design of the short-circuit protection: electronically
Output Active power: 120 W

Product type: Data decoupling module

Width: 22.5 mm

Height: 104.9 mm

Depth: 121.2 mm

Type: 3RK1901-1DG12-1AA0

: IP20

Operating voltage: 24 V DC

Max. ambient temperature: +70 °C

Min. ambient temperature: -25 °C

: 22.5

: 104.9 mm

: 121.2 mm

: TRUE

: DC

: FALSE

: 4 A

: 4.1 A

: DC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1760093 Siemens 3RK19011DG121AA0 3RK1901-1DG12-1AA0 Data decoupling module

User & Safety Instructions

User & Safety Instructions 1760093 Siemens 3RK19011DG121AA0 3RK1901-1DG12-1AA0 Data decoupling module

Description

power contactor, AC-3 17 A, 7.5 kW / 400 V 1 NO + 1 NC, 48 V AC, 50 / 60 Hz, 3-pole, Size S0, screw terminal

Siemens 3RK19011DG121AA0 3RK1901-1DG12-1AA0 Data decoupling module
