A yellow Siemens safety relay module with multiple connection terminals and switches, for industrial control applications.

Image similar

A yellow Siemens safety relay module with multiple connection terminals and switches, for industrial control applications.

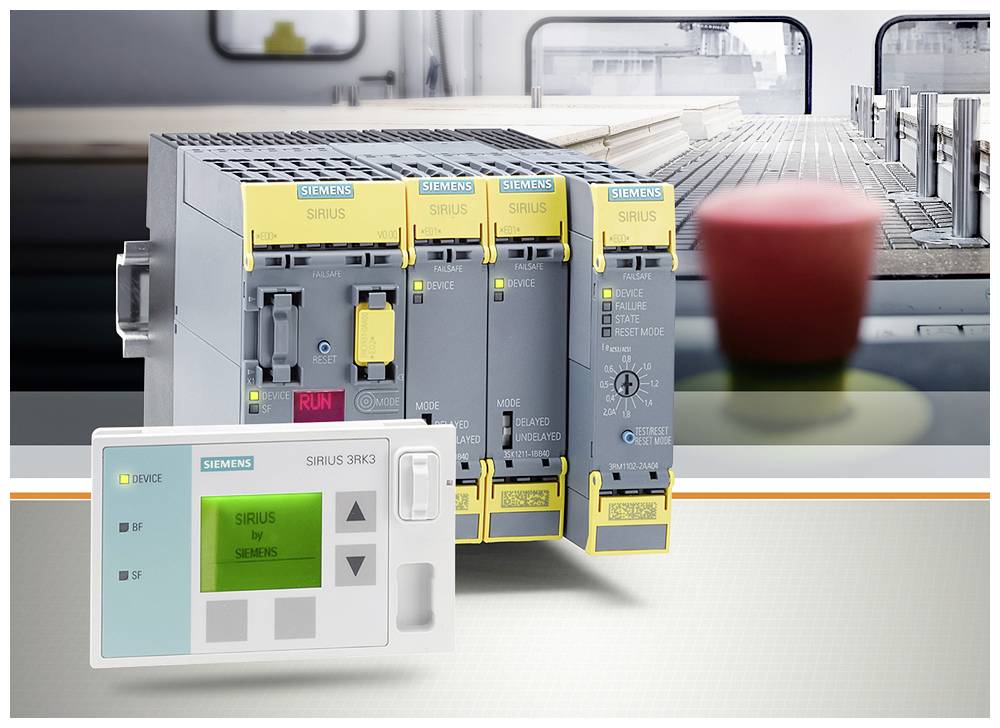

Industrial Automation: Siemens SIRIUS Switching Devices and Control Panel in a Production Environment. Main Device with Safety Markings.

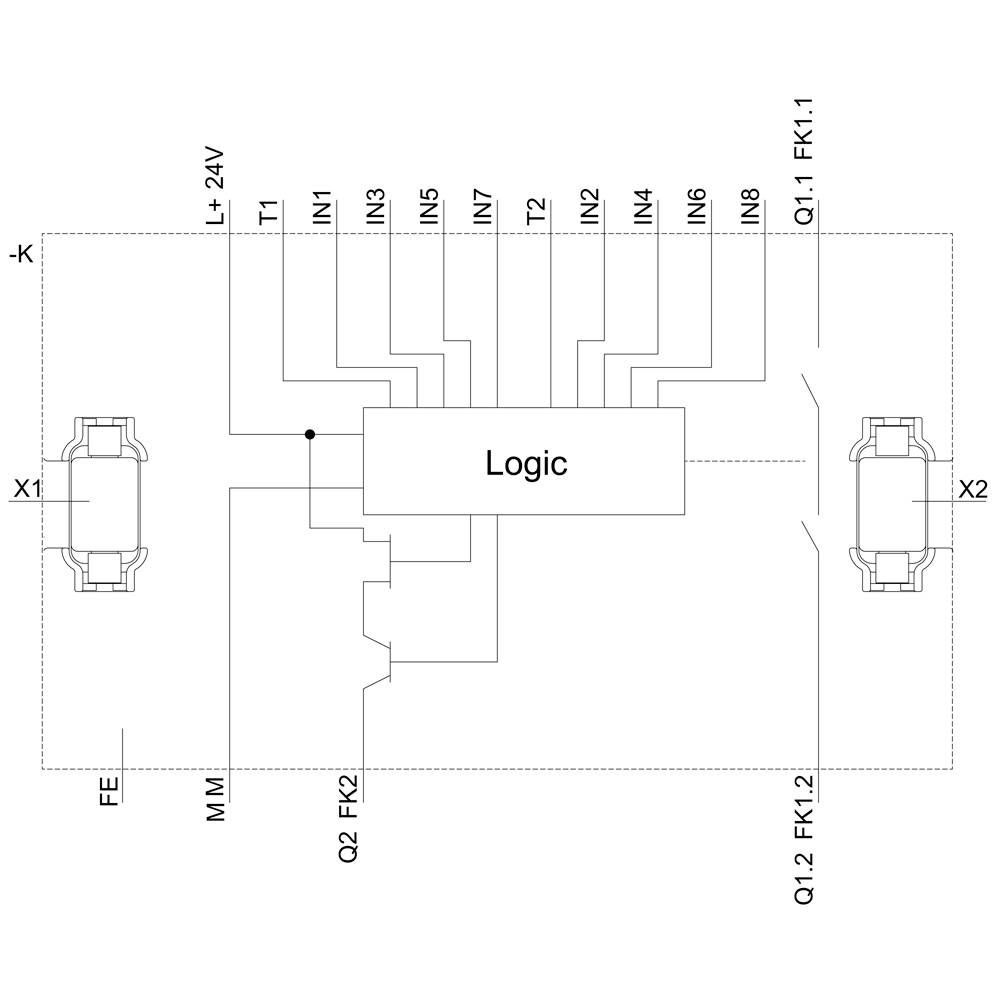

'Electrical circuit diagram with logic module and connections X1 and X2. Inputs IN1 to IN8 and outputs Q1, Q2 connected to logic.'

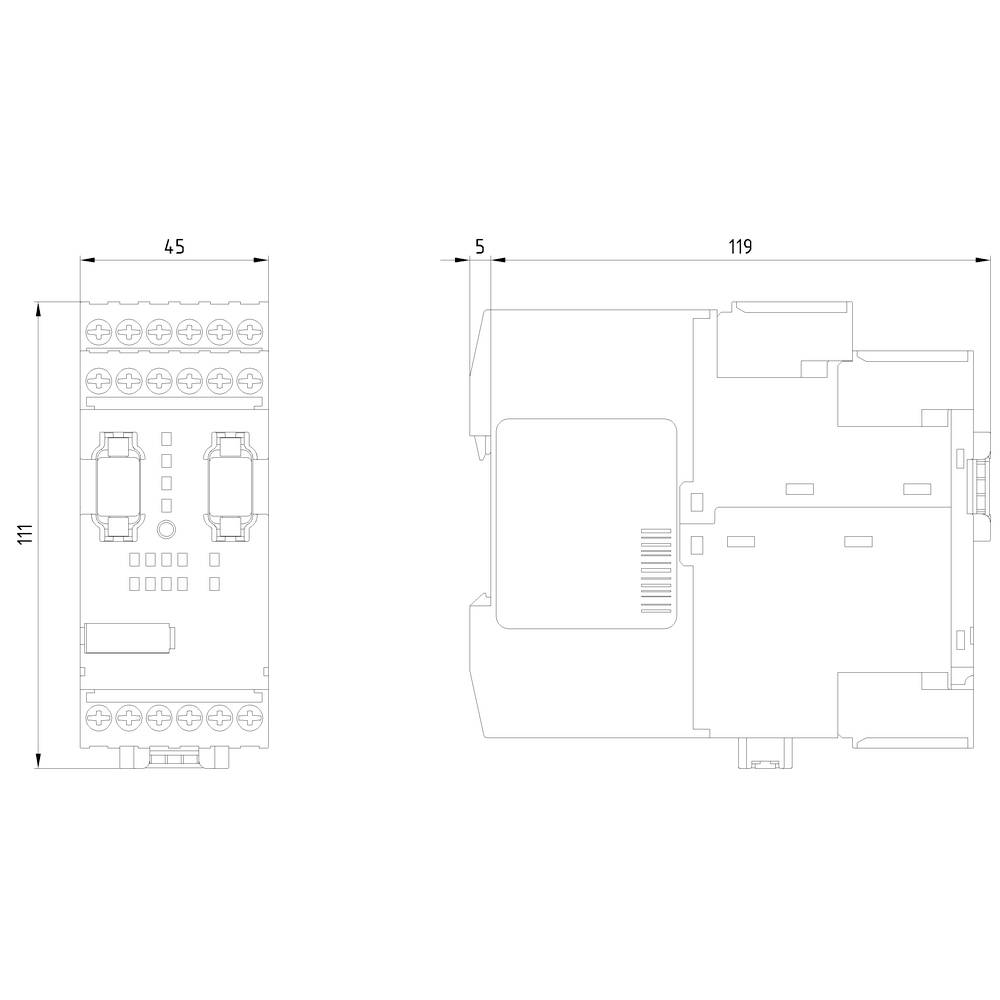

Technical drawing of an electronic device with dimensions: 111x45mm (left) and 119x5mm (right). Connection details visible.

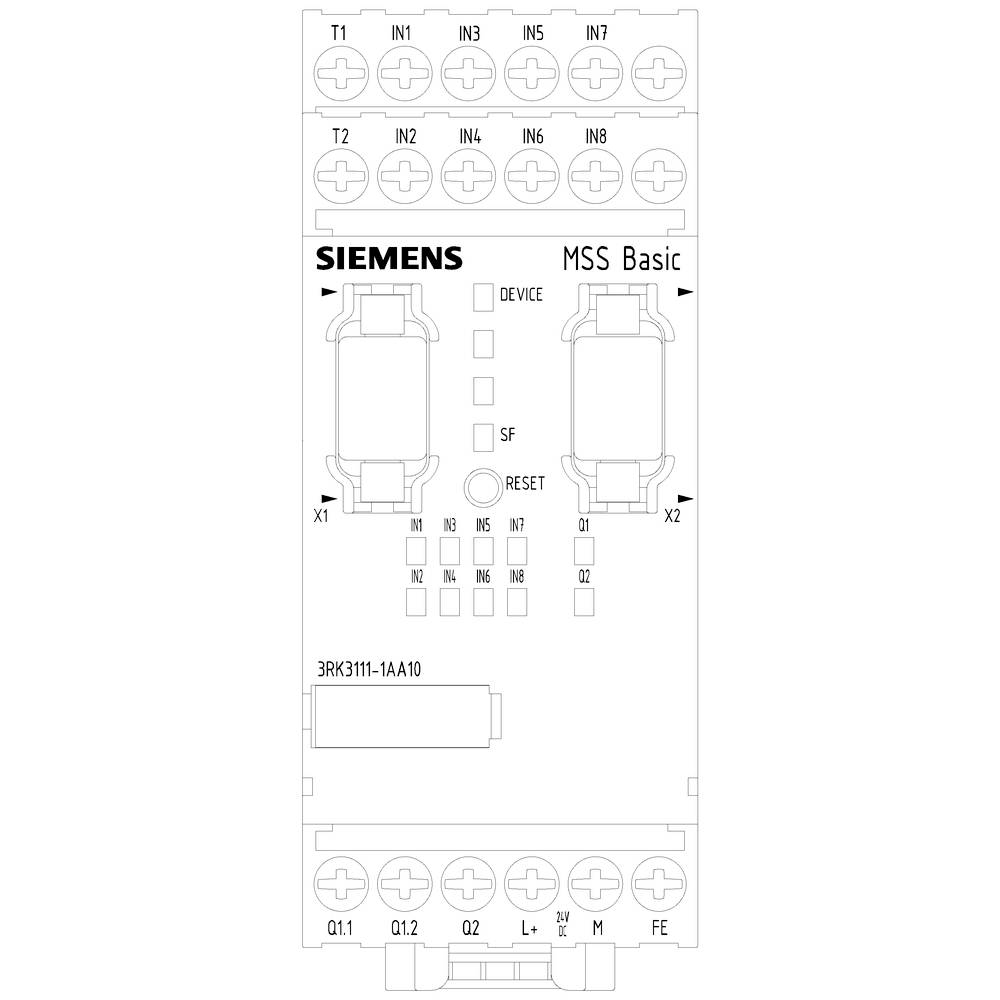

A Siemens safety module, Model MSS Basic, with multiple inputs and outputs, LEDs for status indicators, and a reset button.

1/5

Image similar

Product type

Main module

Operating voltage

24 V

Type

3RK3111-1AA10

Dim

(L x W x H) 124 x 45 x 111 mm

Weight

360 g

Datasheet (PDF)

Siemens

Dispatches on Thu, 15 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,192.44 / piece)

€ 1,192.44

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: Snap-on mounting on DIN rail or screw-mounted with additional Zippered Pass-through
Design of the Electrical Connection: screw terminals.

Type: 3RK3111-1AA10

Product type: Main module

Operating voltage: 24 V

Dim: (L x W x H) 124 x 45 x 111 mm

Weight: 360 g

Width: 45 mm

Height: 111 mm

Length: 124 mm

: 45

: Basic device

: 111 mm

: 124 mm

: TRUE

: TRUE

: 0

: 1

: Screw connection

: FALSE

: FALSE

: TRUE

: TRUE

: TRUE

: TRUE

: TRUE

: Level e

: 0 + 1

: DC

: 3

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1744701 Siemens 3RK3111-1AA10 3RK31111AA10 Main module

User & Safety Instructions

User & Safety Instructions 1744701 Siemens 3RK3111-1AA10 3RK31111AA10 Main module

Description

power contactor, AC-3 50 A, 22 kW / 400 V 1 NO + 1 NC, 400 V AC, 50 Hz 400-440 V, 60 Hz, 3-pole, Size S2, Spring-type terminal
