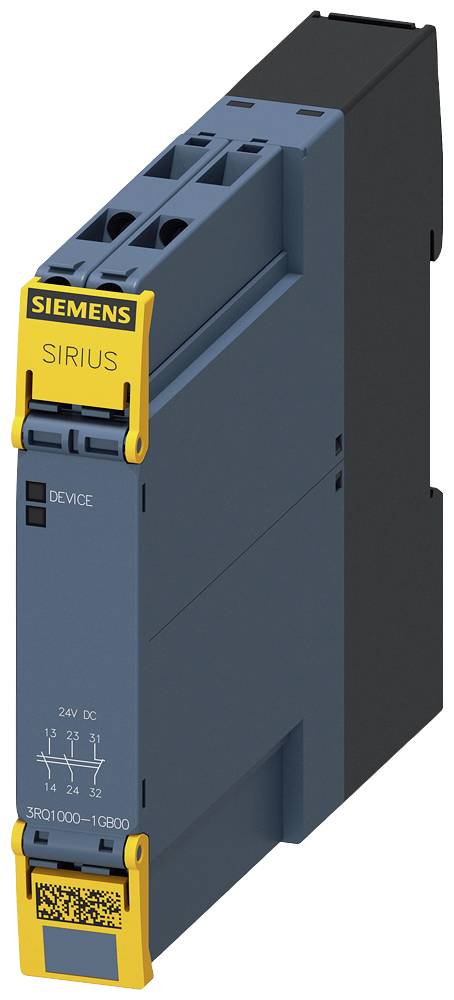

Siemens 3RQ1000-1GB00 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Contact type
2 makers
Type
3RQ1000-1GB00
Max. pick-up voltage
24 V DC
Features
+ broad range setup

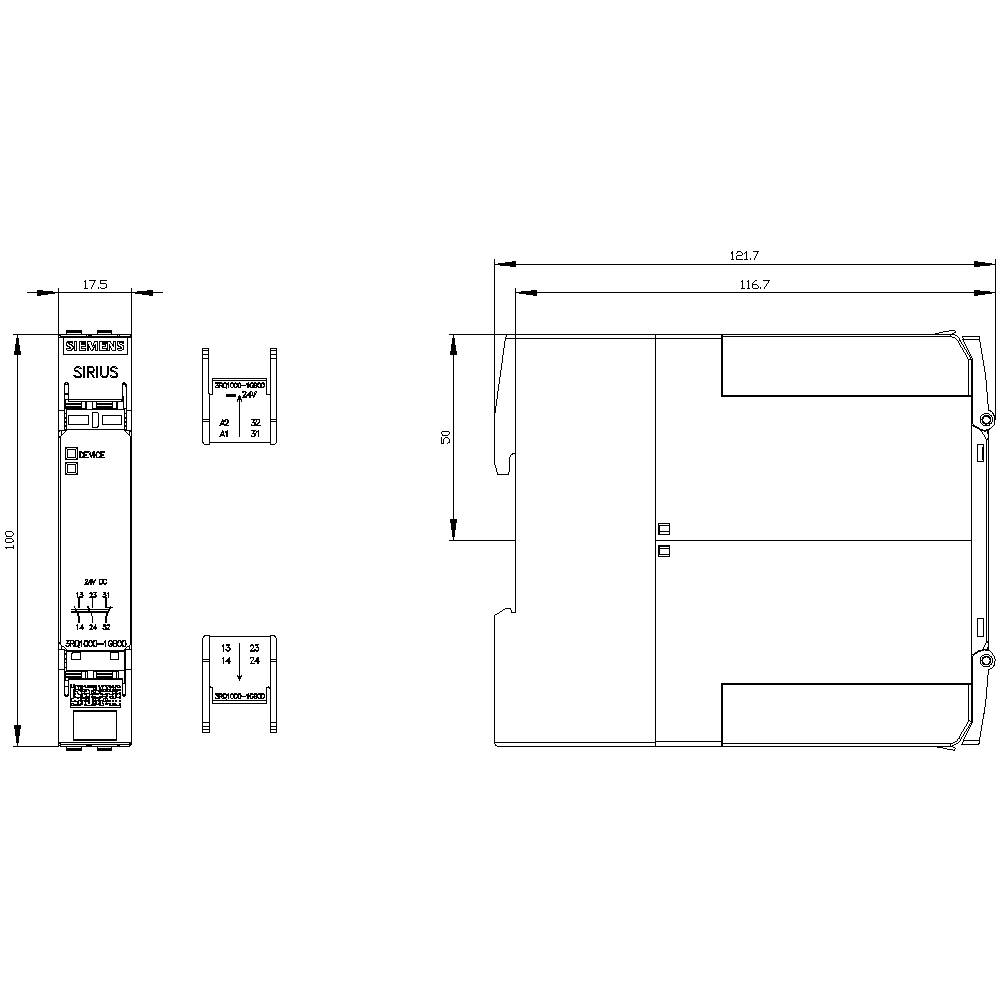

Width
17.5 mm
Datasheet (PDF)
Technical specifications
- Type
3RQ1000-1GB00
- Max. pick-up voltage
24 V DC
- Contact type
2 makers
- Features
+ broad range setup
- Width
17.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
17.5
100 mm
120 mm
Polarized
Mono stable
FALSE
Screw connection
IP20
DC
1
2
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2870267 Siemens 3RQ1000-1GB00 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2870267 Siemens 3RQ1000-1GB00 2 makers 1 pc(s)
Description

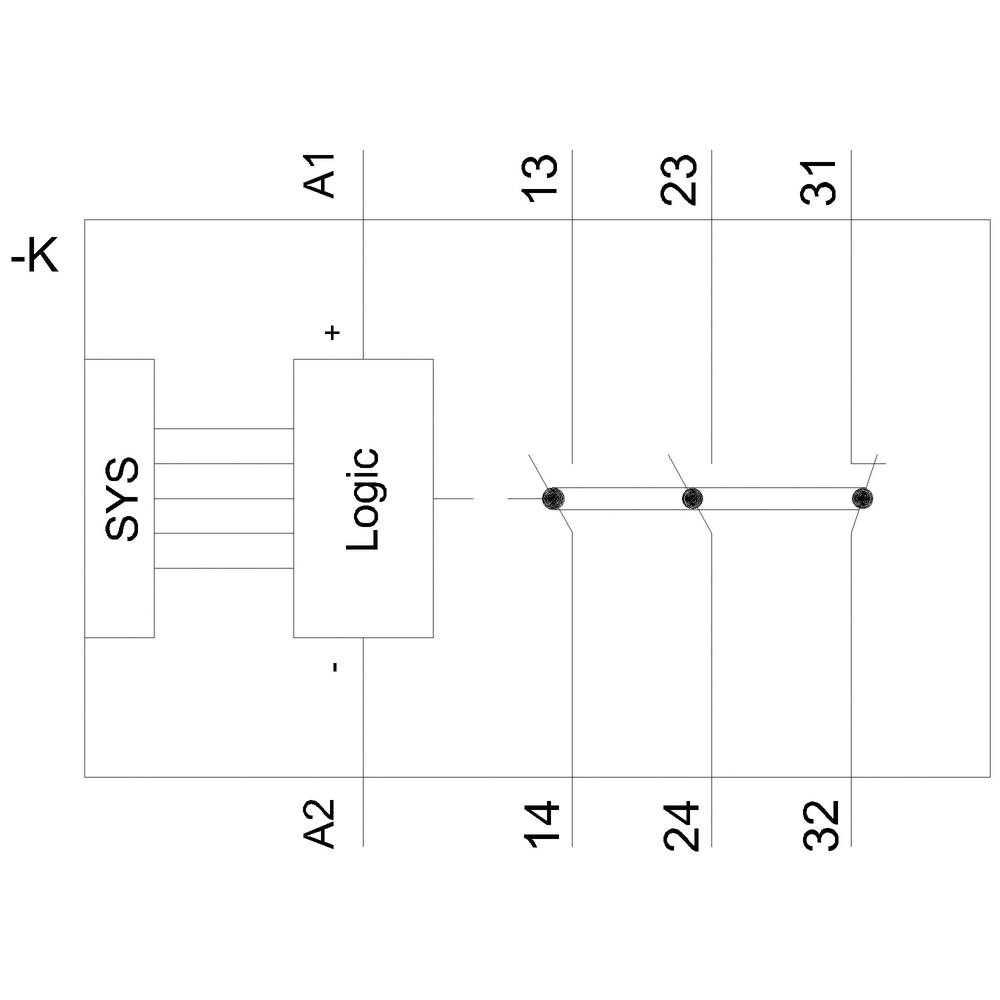

Positively driven coupling relay in industrial casing 2 normally open contact / 1 normally closed contact 24 V DC SIL 2 / PL c screw connection Positively driven relay SIRIUS 3RQ1 for the fail-safe coupling of control signals to and from a control system and for the contact extension of 3SK safety switching devices.
This 3RQ1 positively-driven coupling relay has a safety certification and can be connected to the 3SK safety relays with a low wiring via device connectors. Detachable clamps enable easy exchange of devices and quick wiring.
Devices with safety certification up to SIL 3/PL e are available, with single and wide-voltage ranges, different contact versions, also in width 17.5 mm, each with screw or spring-type connection (push-in).
SIRIUS relay - a program for all cases.
