Siemens 3RQ1000-1HB00 Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Type
3RQ1000-1HB00
Max. pick-up voltage
24 V DC
IP rating
IP20
Depth
120 mm
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Type
3RQ1000-1HB00
- Max. pick-up voltage
24 V DC
IP20
- Depth
120 mm
- Width
22.5 mm
- Height
100 mm
- Dim

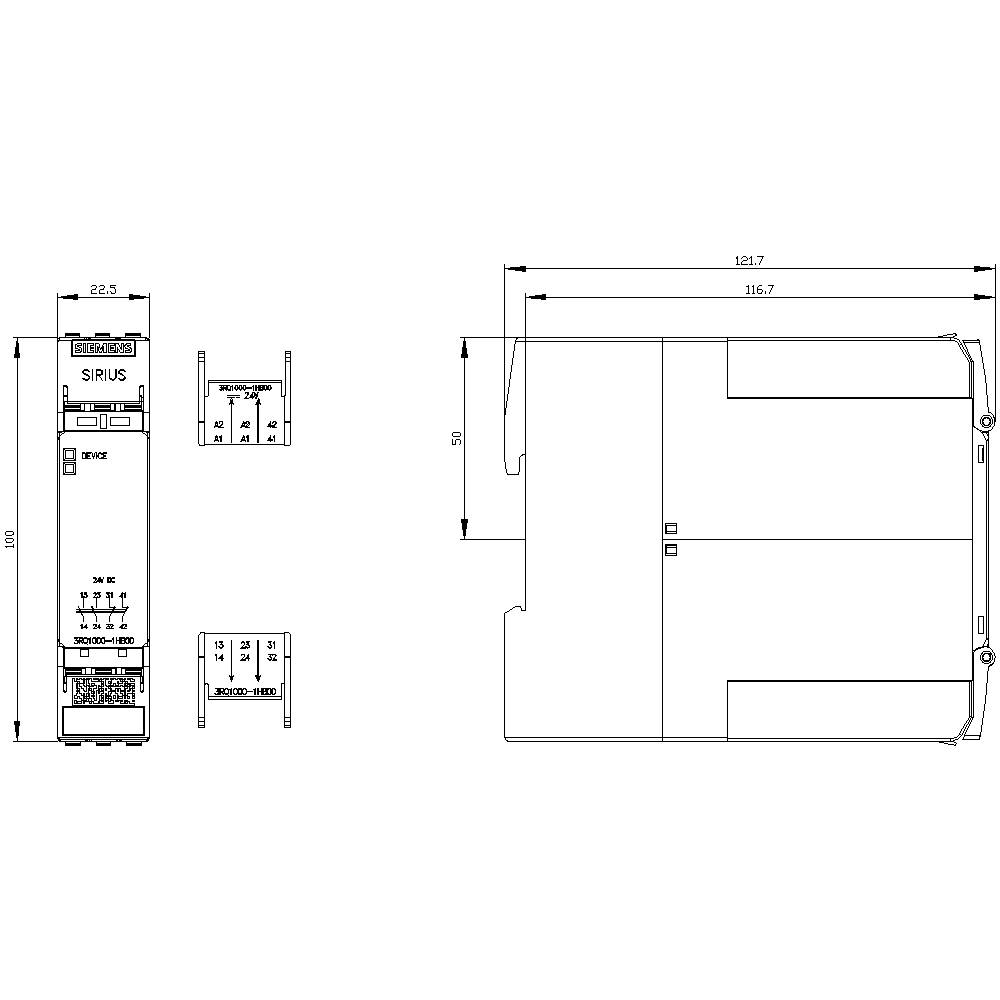

(W x H x D) 22.5 x 100 x 120 mm
- Content
1 pc(s)
- Weight
0.1859 kg
- RoHS-compliant
Yes
22.5
100 mm
120 mm
Polarized
Mono stable
FALSE
Screw connection
IP20
DC
2
2
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2870269 Siemens 3RQ1000-1HB00 Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2870269 Siemens 3RQ1000-1HB00 Piece 1 pc(s)
Description

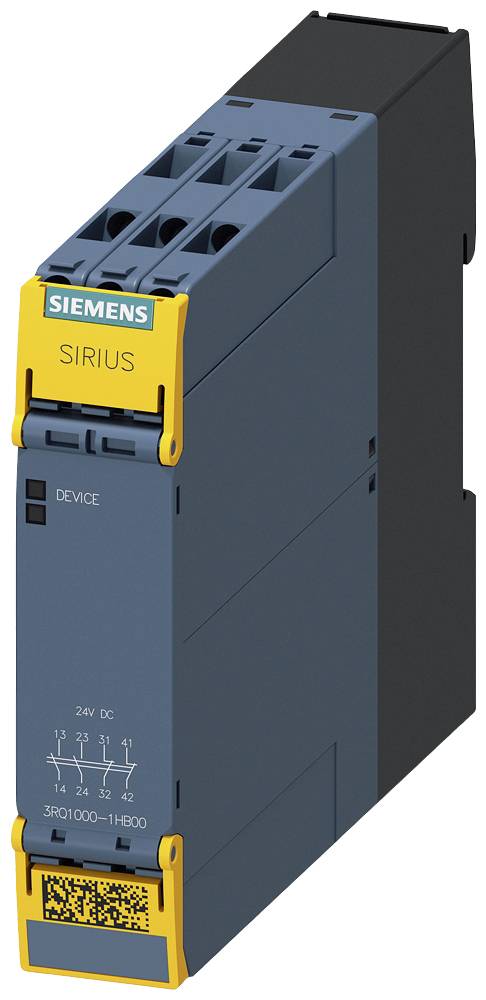

Positively driven coupling relay in industrial casing 2 normally open contact / 2 normally closed contact 24 V DC SIL 2 / PL c screw connection Positively driven relay SIRIUS 3RQ1 for the fail-safe coupling of control signals to and from a control system and for the contact extension of 3SK safety switching devices.
This 3RQ1 positively-driven coupling relay has a safety certification and can be connected to the 3SK safety relays with a low wiring via device connectors. Detachable clamps enable easy exchange of devices and quick wiring.
Devices with safety certification up to SIL 3/PL e are available, with single and wide-voltage ranges, different contact versions, also in width 17.5 mm, each with screw or spring-type connection (push-in).
SIRIUS relay - a program for all cases.
