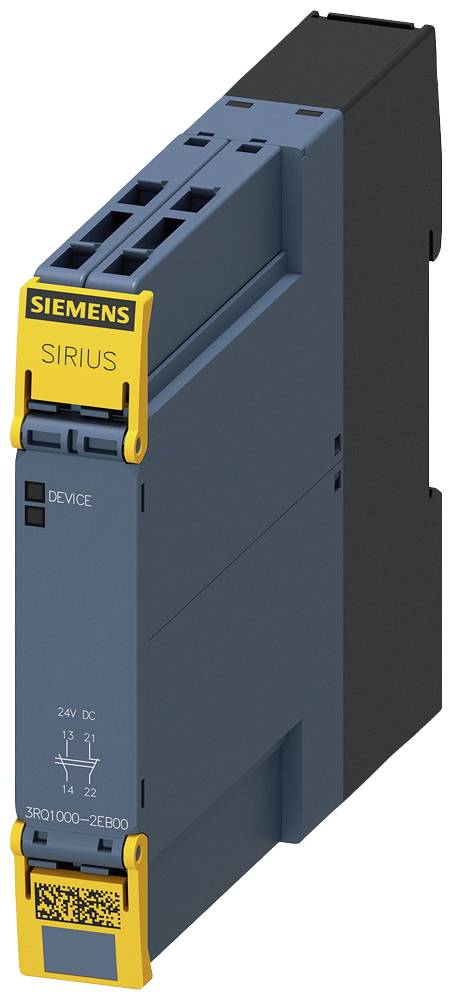

Siemens 3RQ1000-2EB00 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Contact type
1 change-over
Type
3RQ1000-2EB00
Connection
Spring-loaded connector
Features
+ broad range setup

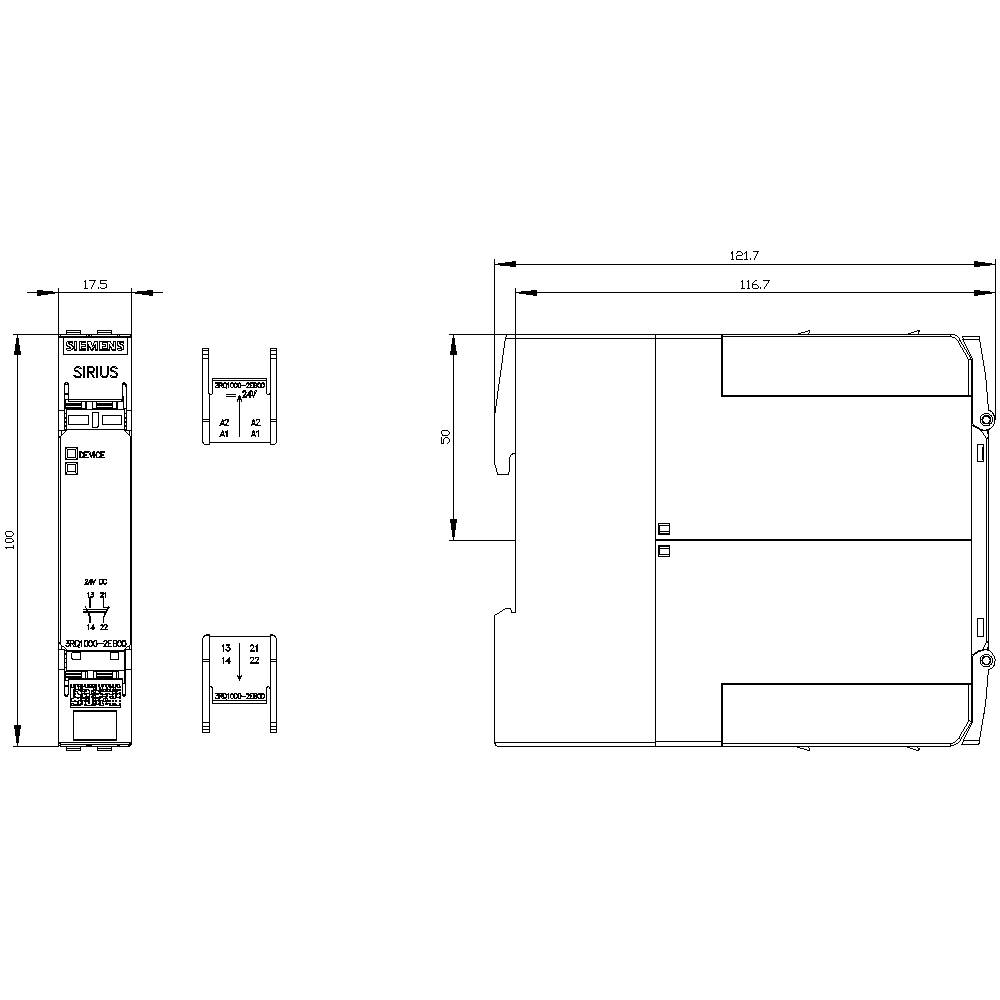

Width
17.5 mm
Datasheet (PDF)
Highlights & Details
Positively driven relay, 1S+1Ö, AC/DC 24V, spring-loaded connector, SIL 2/PL c
Our service for you
Technical specifications
- Type
3RQ1000-2EB00
- Connection
Spring-loaded connector
- Contact type
1 change-over
- Features
+ broad range setup
- Width
17.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
17.5
100 mm
120 mm
Polarized
Mono stable
FALSE
Spring clamp connection
IP20
DC
1
1
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2870273 Siemens 3RQ1000-2EB00 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2870273 Siemens 3RQ1000-2EB00 1 change-over 1 pc(s)
Description
Positively driven coupling relay in industrial casing 1 NO contact / 1 NC contact 24 V DC SIL 2 / PL c Spring-loaded coupling relay SIRIUS 3RQ1 for fail-safe coupling of control signals from and to a control and for the contact extension of 3SK safety switching devices.
This 3RQ1 positively-driven coupling relay has a safety certification and can be connected to the 3SK safety relays with a low wiring via device connectors. Detachable clamps enable easy exchange of devices and quick wiring.
Devices with safety certification up to SIL 3/PL e are available, with single and wide-voltage ranges, different contact versions, also in width 17.5 mm, each with screw or spring-type connection (push-in).
SIRIUS relay - a program for all cases.
This text is machine translated.
This 3RQ1 positively-driven coupling relay has a safety certification and can be connected to the 3SK safety relays with a low wiring via device connectors. Detachable clamps enable easy exchange of devices and quick wiring.
Devices with safety certification up to SIL 3/PL e are available, with single and wide-voltage ranges, different contact versions, also in width 17.5 mm, each with screw or spring-type connection (push-in).
SIRIUS relay - a program for all cases.
