A Siemens SIRIUS switching device with multiple terminals, suitable for use in electrical circuits to control equipment.

Image similar

A Siemens SIRIUS switching device with multiple terminals, suitable for use in electrical circuits to control equipment.

An electrical control cabinet with various electrical components, cables, and connection terminals. LED lights are positioned at the top for status indication.

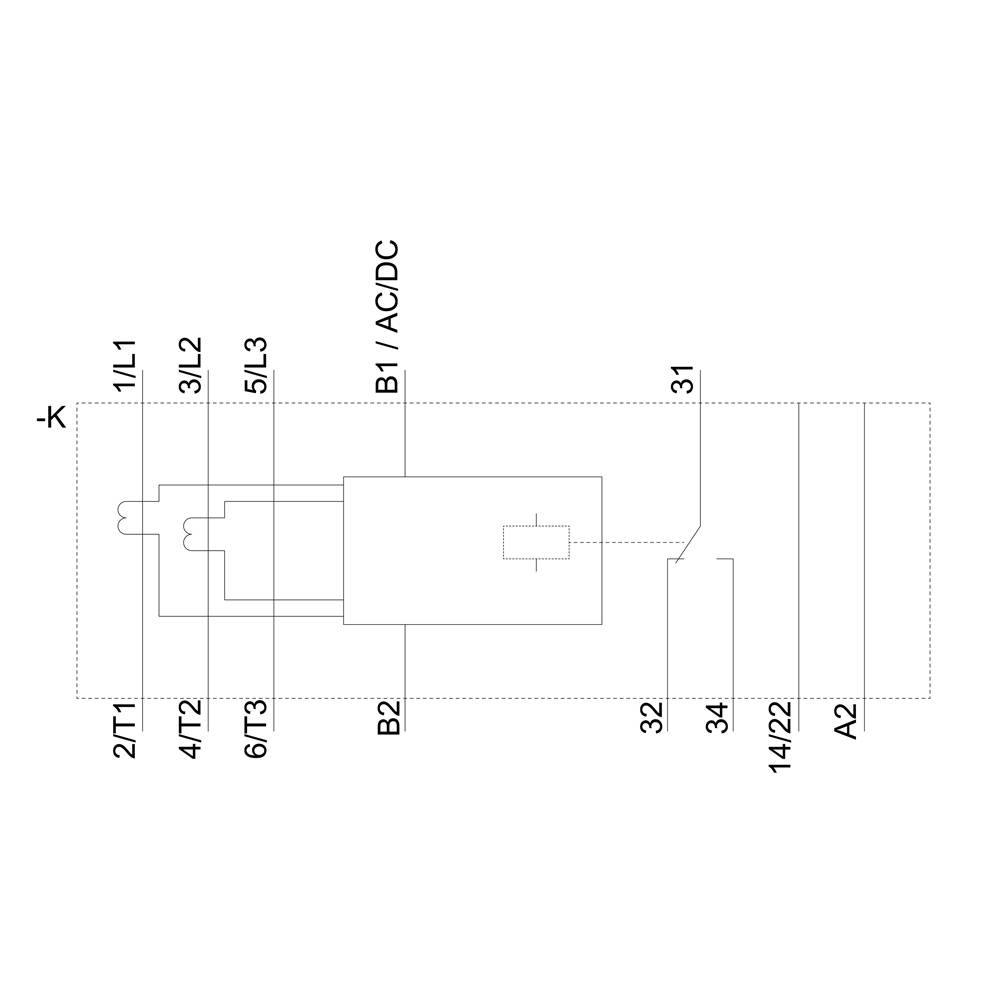

Circuit diagram of an electrical relay with connections: 1L1, 3L2, 5L3, 2T1, 4T2, 6T3, B1 AC/DC, B2, 31, 32, 34, 14/22, A2.

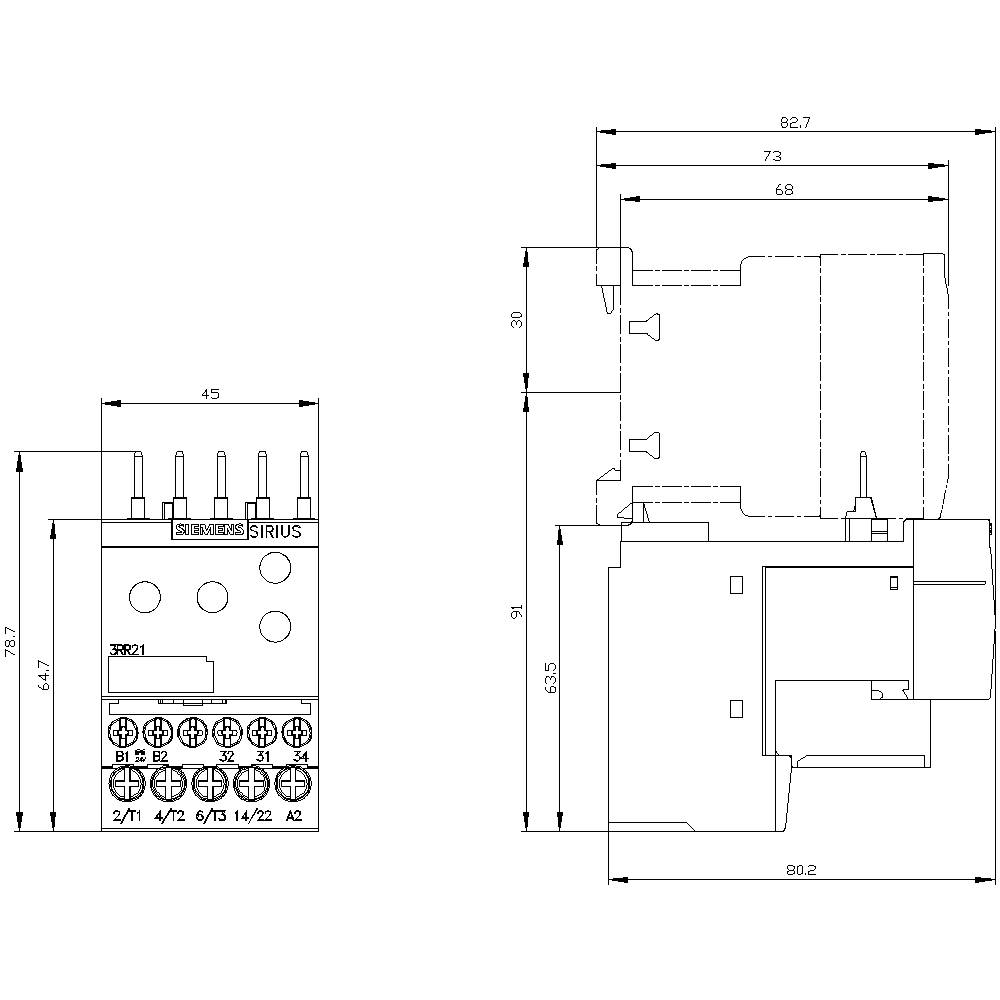

Technical drawing of an electrical switch, showing dimensions and connections. Left: detailed view of connections, right: side view.

1/4

Image similar

Product type

Monitoring relay

Operating voltage

240 V

Type

3RR2141-1AW30

Dim

(L x W x H) 80 x 45 x 79 mm

Weight

180 g

Datasheet (PDF)

Siemens

Dispatches on Mon, 5 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: direct mounting
Design of the Electrical Connection: screw terminals.

Type: 3RR2141-1AW30

Product type: Monitoring relay

Operating voltage: 240 V

Dim: (L x W x H) 80 x 45 x 79 mm

Weight: 180 g

Width: 45 mm

Height: 79 mm

Length: 80 mm

: 45

: 79 mm

: 80 mm

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: Screw connection

: 60 s

: 0 s

: 30 s

: 0 s

: AC/DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1746779 Siemens 3RR2141-1AW30 3RR21411AW30 Monitoring relay

User & Safety Instructions

User & Safety Instructions 1746779 Siemens 3RR2141-1AW30 3RR21411AW30 Monitoring relay

Description

Monitoring relay, can be mounted to Contactor 3RT2, Size S0 standard, digitally adjustable Apparant/active current monitoring 4...40 A, 20...400 Hz, 3-phase Supply 24-240 V AC/DC 1 change-over contact, 1 semiconductor output for alarm and warning Monitoring for Current overshoot and undershoot Phase failure, Cable break Phase sequence Residual current Blocking current Warning and alarm thresholds with or without fault buffer ON delay 0-99 s Noise pulse suppression 0-30 s Pause after fault 0-300 min spring-type connection system
