Name: Siemens 3RS2500-2AA30 3RS25002AA30 Thermal control relay No. of relay outputs: 1
Brand: Siemens
SKU: 2870293

A blue Siemens Sirius relay device with two rotary controllers, indicator lights, and a QR code on the underside.

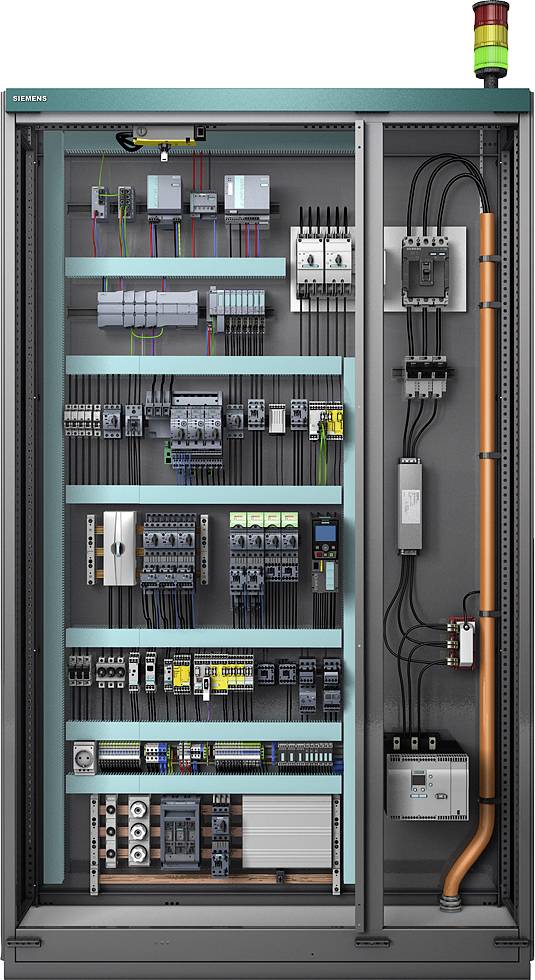

Industrial control cabinet: Enclosure containing control components, wiring and safety modules. Displays electrical connections and switching devices.

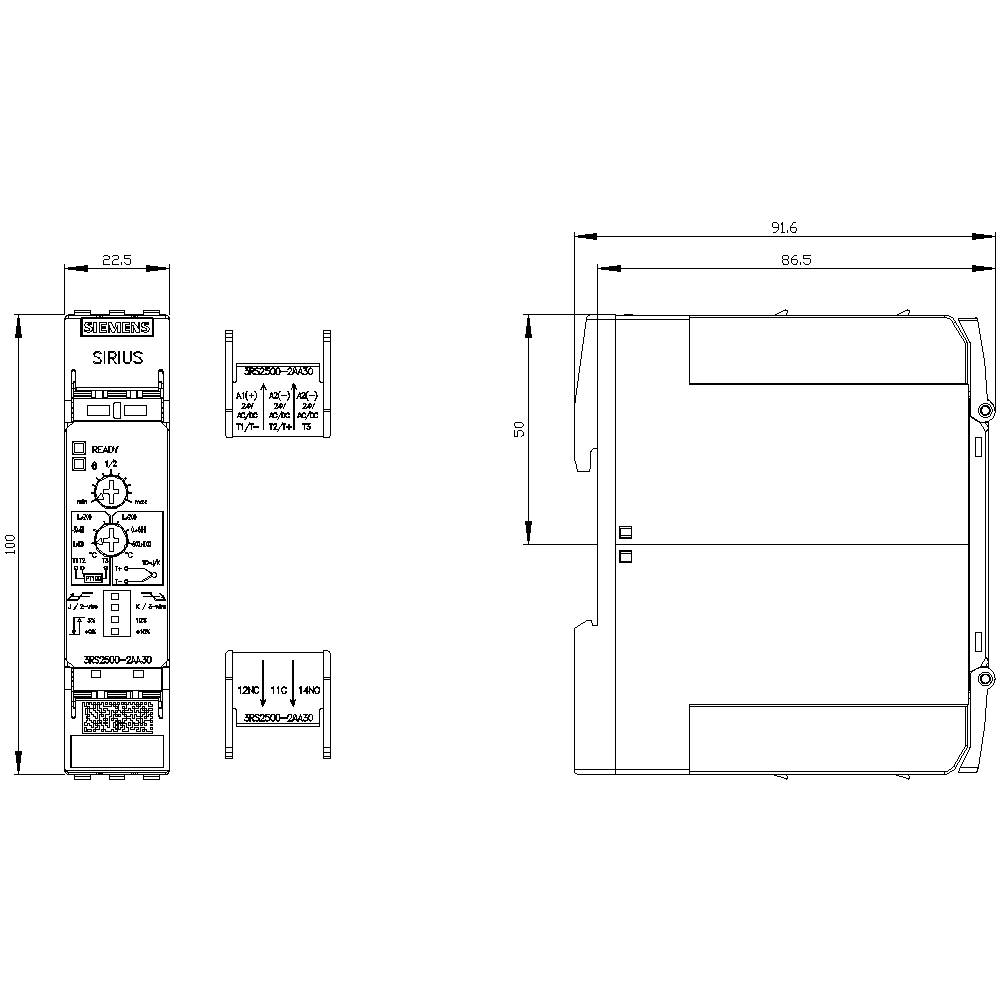

Technical drawing of a SIRIUS switching device with dimensions. Left: Front view with details. Right: Side view. Dimensions: 22.5 mm width, 100 mm height.

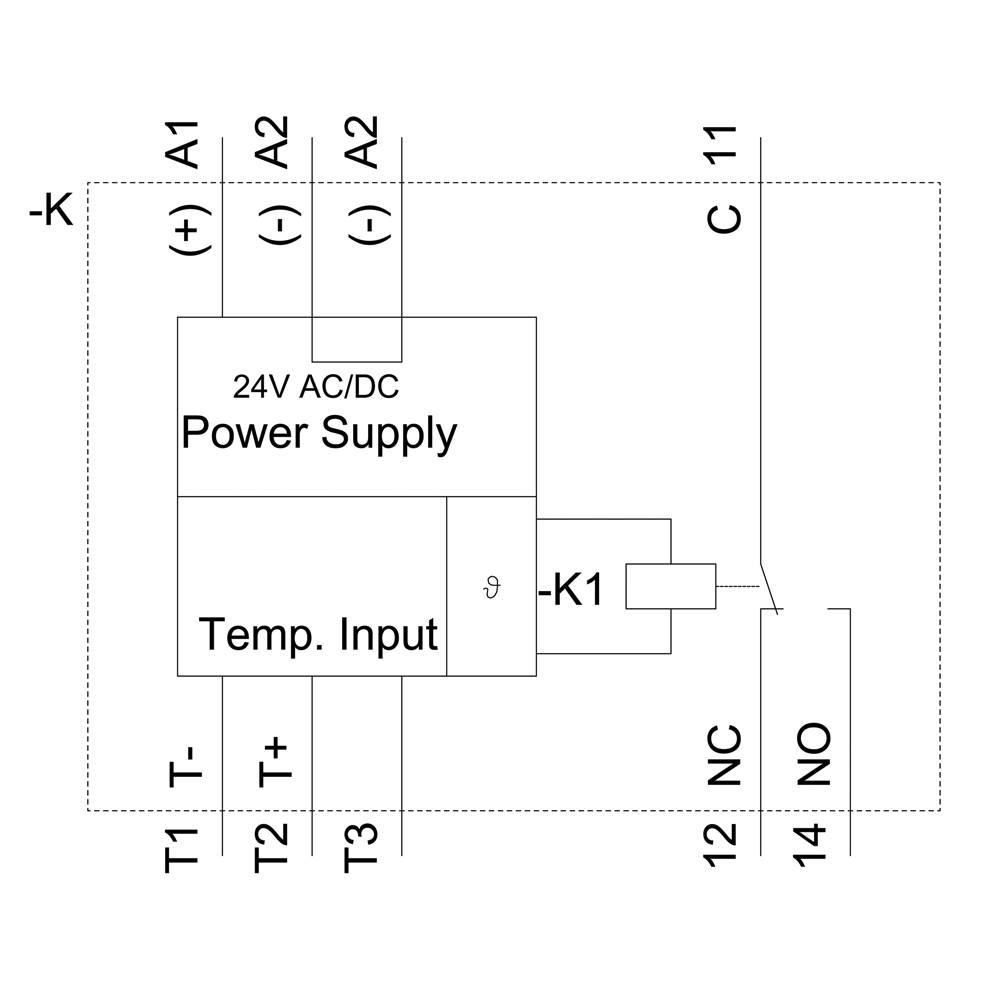

'Circuit diagram of a 24V AC/DC power supply. Temperature input, terminals and relay with label K1 are marked.'

1/4

Image similar

Product type

Thermal control relay

No. of relay outputs

Operating voltage

24 V

Type

3RS2500-2AA30

Probe inputs

PT100. PT1000. Thermoelemente Typ J und Typ K

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: 3RS2500-2AA30

Product type: Thermal control relay

No. of relay outputs: 1

Probe inputs: PT100. PT1000. Thermoelemente Typ J und Typ K

Operating voltage: 24 V

Width: 22.5 mm

: 22.5

: 100 mm

: 90 mm

: FALSE

: 1

: FALSE

: Spring clamp connection

: AC/DC

: 0

: 0

: 1

UKCA: not relevant
